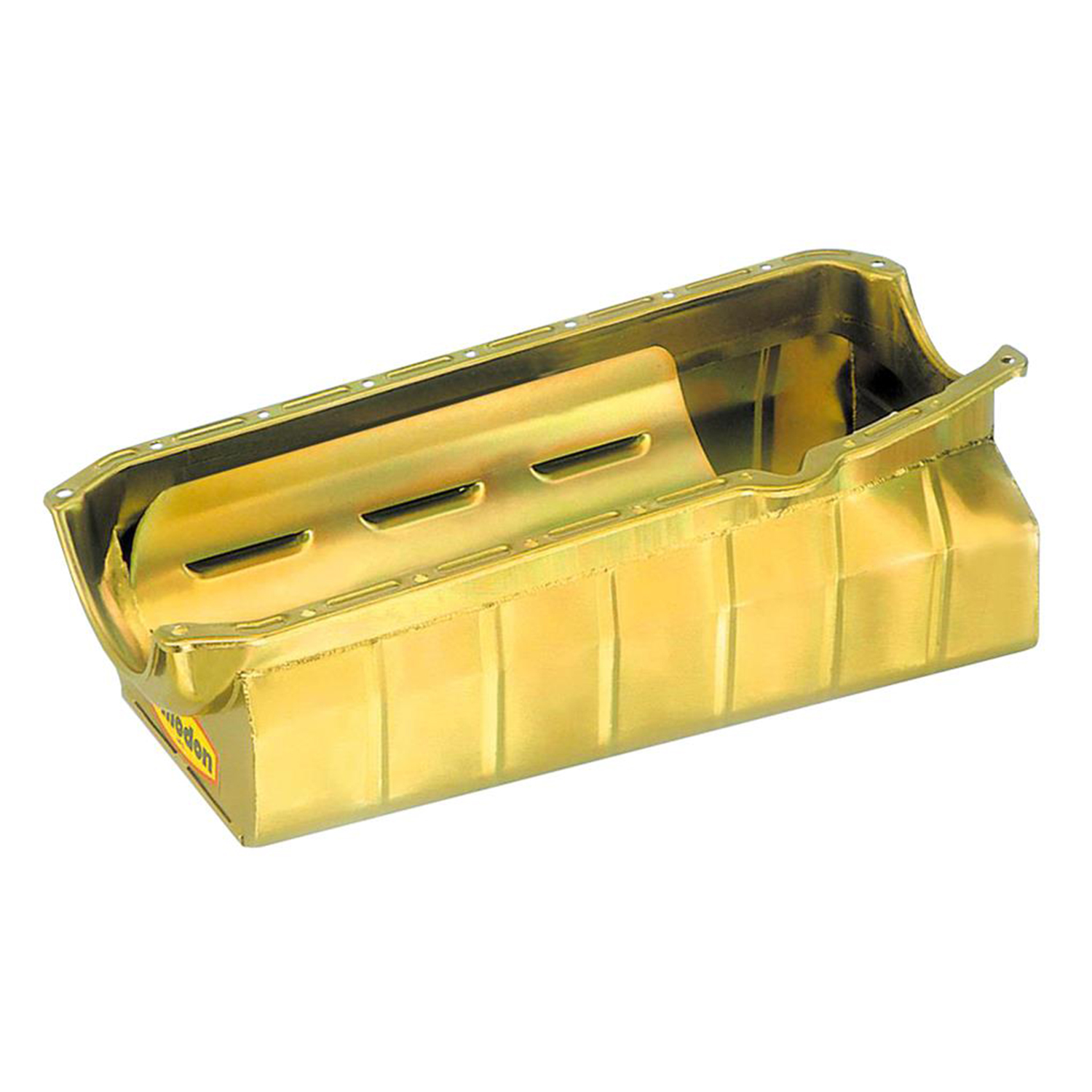

Milodon Competition Full Sump Oil Pan
Used in Sump Comp, Super Gas and bracket classes. Designed for tube chassis cars with no stock frame or steering under the engine. Has full length, louvered windage tray and doubled trap doors for 100% oil control which gives consistent oil pressure (even on shut down) and increased horsepower. Will fit a 4" stroke crank and Carillo or Eage style rods.
Part Type: Oil Pans
UPC: 806621311453
Sump Style: Wet
Baffled: Yes
Kicked Out: No
Oil Pan Color: Gold
Oil Pan Material: Steel
Oil Pan Depth (in): 7.625"
Dipstick Included: No
Stroker Clearanced: Yes
Oil Pan Capacity: 7.00 quarts
Dipstick Location: Driver Side
Sump Location: Full
Oil Pan Style: Drag Race
Rear Main Seal Style: 2-Piece
Maximum Stroke with OE Rod: 4.000"
Dipstick Provision: Yes
Windage Tray Included: Yes
Hardware Included: No
Gaskets Included: No
Drain Plug Thread Size: 1/2"-20
Pickup Included: No
Oil Pump Included: No
Crank Scraper Included: No
Notes: Fits tube chassis race cars. Tapered sump measures 6" deep in the front. Requires thick front seal.
Quantity Sold as: Individually
|
