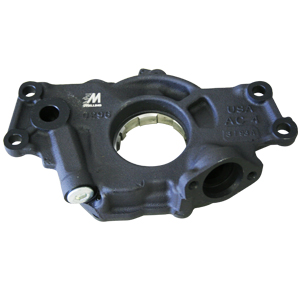

Melling Performance Oil Pump w/Extended Shafts
The drive and idler shafts have been extended to allow for additional support into the cover. This eliminates dynamic shaft deflection at increased rpm levels. The cover is doweled to the pump housing to assure alignment of shaft bores. The housing and cover are CNC machined and manganese phosphate coated for wear and rust protection. The gears are billet steel. The relief valve features a screw-in plug for easy spring change. Includes intermediate pump shaft.
Part Type: Oil Pump
Application: Chevrolet Small Block
Oil Pump Style: Wet Sump
Oil Pump Volume: High Volume +18%
Oil Pump Pressure: High Pressure +10 psi
Low Pressure Oil Pump Spring Included: Yes
Anti-Cavitation Slots: No
Gear Material: Billet Steel
Housing Material: Cast Iron
Pickup Inlet Size: 3/4"
Pickup Mounting Style: Press-In or Bolt-On
Pickup Included: No
Nylon Drive Shaft Retainer Included: No
Hardened Driveshaft Recommended: Yes
Oil Pump Driveshaft Included: Yes
Hardware Included: Oil Pump Screen Installation Bolts
Gasket or Seal Included: Oil Pump Screen Gasket
Manufacturer: Melling Engine Parts
Manufacturer's Part Number: 10552
Weight: 5.05 lbs.
Warranty: All products sold by Melling Engine Parts are warranted to the consumer owner for one year from the date of installation to be free from defects in materials or workmanship. This warranty does not apply to any product that has been altered, tampered with, such as taken apart, misused, subject to excessive operating conditions, malfunctions because of foreign particles such as engine dirt or pieces of other deteriorating components, products used in a vehicle that has been altered for other than intended purposes. Also, performance products are not covered under this warranty including products used for off-road or racing purposes.
Quantity: Sold as Each
