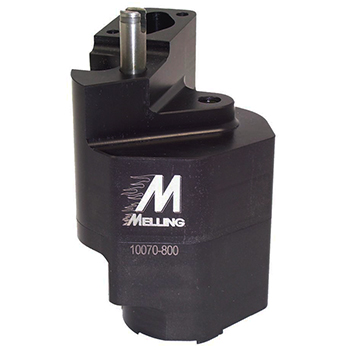

Melling Aluminum Billet Oil Pump
Lightweight billet 6061-T6 aluminum housings with a protective anodized hardcoat. The high volume gears are also coated. The pump shafts have been extended into the anodized billet cover for support. Pickup screen is integrated into the pump body and features a stainless steel wire mesh. This pump has multiple pressure settings and is CNC manufactured to exacting tolerances and surface finishes. The supercharged inlet allows for improved performance at high RPM's. Includes chrome moly intermediate shaft, stud kit and +10% and -10% relief springs. For race applications only.
Part Type: Oil Pump
Application: Chevrolet Big Block
Oil Pump Style: Wet Sump
Oil Pump Volume: High Volume +25%
Oil Pump Pressure: Adjustable
High Pressure Oil Pump Spring Included: Yes
Gear Material: Billet Steel
Housing Material: Billet Aluminum
Pickup Inlet Size: NA
Pickup Mounting Style: Integral
Pickup Included: Yes
Nylon Drive Shaft Retainer Included: No
Hardened Driveshaft Recommended: No
Oil Pump Driveshaft Included: Yes
Gasket or Seal Included: No
Manufacturer: Melling Engine Parts
Manufacturer's Part Number: 10050-825
Weight: 5.85 lbs.
Warranty: All products sold by Melling Engine Parts are warranted to the consumer owner for one year from the date of installation to be free from defects in materials or workmanship. This warranty does not apply to any product that has been altered, tampered with, such as taken apart, misused, subject to excessive operating conditions, malfunctions because of foreign particles such as engine dirt or pieces of other deteriorating components, products used in a vehicle that has been altered for other than intended purposes. Also, performance products are not covered under this warranty including products used for off-road or racing purposes.
Quantity: Sold as Each
|
