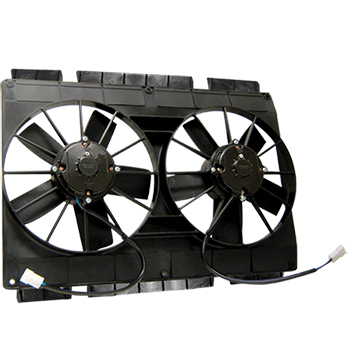

Maradyne High Performance Cooling Fans, Mach Two Series Dual Electric Fan
Features two 22 watt heavy duty motors. Twin 11" powerful, wide straight-blades (puller only). Capable of 2760 CFM. Available in 3 mounting configurations. Standard, with side mounting flanges (for top & bottom tank radiators), or with top and bottom mount flanges (for crossflow radiators). 3.80" depth.
Part Type: Dual Electric Fan
Application: Universal
Maximum Fan CFM: 2760 (1380 Each)
Fan Quantity: Two
Blade Style: Straight
Number of Blades: 10 (5 Each)
Reversible: No, Puller only
Motor: Yes, 225 Each
Amperage Draw: 22.0 Amps
Fan Diameter: 11" Each

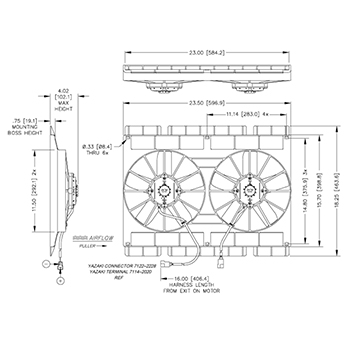

Height: 18.25"
Width: 23.5"
Thickness: 3.80"
Blade Material: Glass-Filled Nylon
Blade Color: Black
Shroud Material: Glass-Filled Nylon
Shroud Color: Black
Mounting Hardware Included: Yes, rubber spacers and top and bottom mounting flanges
Installation Hardware Included: Yes, locking mating pigtail connector
Optional Mounting Brackets (Sold Separately): NA
Optional Wiring Harness Included (Sold Separately): MFA100 (adjustable thermostat), MFA111 (dual fan adapter), MFA102 (185° temperature switch), MFA103 (195° temperature switch)
Manufacturer: Maradyne High Performance Fans
Manufacturer's Part Number: MM22KT
UPC: 810349010390
Weight:
Warranty: Maradyne High Performance Fans warrants to the Original Purchaser that the components of each fan package are free from defects in materials and workmanship for 12 months from the date of installation, or 18 months from the date of delivery and acceptance, whichever date first occurs. This warranty does not cover normal maintenance or adjustments, nor damage or malfunction caused by improper handling, maintenance, installation, abuse, accident, incorrect power source, negligence, carelessness of operation, or alteration or repair of the product in any manner outside the factory without the prior written consent Maradyne. customer further acknowledges and understands that this Agreement is based on performance derived from representative samples in a laboratory test environment. MARADYNE CANNOT AND DOES NOT WARRANT OR MAKE ANY REPRESENTATION OF FITNESS OR PERFORMANCE AS TO CUSTOMERS ACUTAL APPLICATION RESULTS; THIS WARRANTY IS LIMITED TO DEFECTS IN MATERIALS AND WORKMANSHIP ONLY.
Quantity: Sold as Each
|
