Maradyne High Performance Cooling Fans, Mach One Series Electric Fan
These high performance applications fans feature 225 watt water and dust proof seal heavy duty motors. Rubber seal eliminates vibration contact and increases flow. Quiet, reversible S-blade design, works as a puller or pusher fan (ships as puller). All glass-filled nylon construction. Measures Width: 16", by Height: 17". Includes universal mounting brackets.
Part Type: Electric Fan
Application: Universal
Maximum Fan CFM: 2170
Fan Quantity: One
Blade Style: "S"-Blade
Number of Blades: 10
Reversible: Yes
Motor: Yes, 225
Amperage Draw: 18.0 Amps
Fan Diameter: 16"

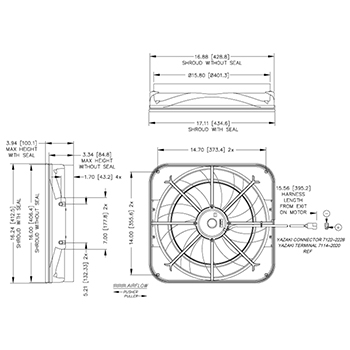

Height: 17"
Width: 16"
Thickness: 3.90"
Blade Material: Glass-Filled Nylon
Blade Color: Black
Shroud Material: Glass-Filled Nylon
Shroud Color: Black
Mounting Hardware Included: Yes, universal mounting brackets
Installation Hardware Included: Yes, locking mating pigtail connector
Optional Mounting Brackets (Sold Separately): NA
Optional Wiring Harness Included (Sold Separately): MFA100 (adjustable thermostat), MFA102 (185° temperature switch), MFA103 (195° temperature switch)
Manufacturer: Maradyne High Performance Fans
Manufacturer's Part Number: MM12K
UPC: 810349010352
Weight:
Warranty: Maradyne High Performance Fans warrants to the Original Purchaser that the components of each fan package are free from defects in materials and workmanship for 12 months from the date of installation, or 18 months from the date of delivery and acceptance, whichever date first occurs. This warranty does not cover normal maintenance or adjustments, nor damage or malfunction caused by improper handling, maintenance, installation, abuse, accident, incorrect power source, negligence, carelessness of operation, or alteration or repair of the product in any manner outside the factory without the prior written consent Maradyne. customer further acknowledges and understands that this Agreement is based on performance derived from representative samples in a laboratory test environment. MARADYNE CANNOT AND DOES NOT WARRANT OR MAKE ANY REPRESENTATION OF FITNESS OR PERFORMANCE AS TO CUSTOMERS ACUTAL APPLICATION RESULTS; THIS WARRANTY IS LIMITED TO DEFECTS IN MATERIALS AND WORKMANSHIP ONLY.
Quantity: Sold as Each
|
