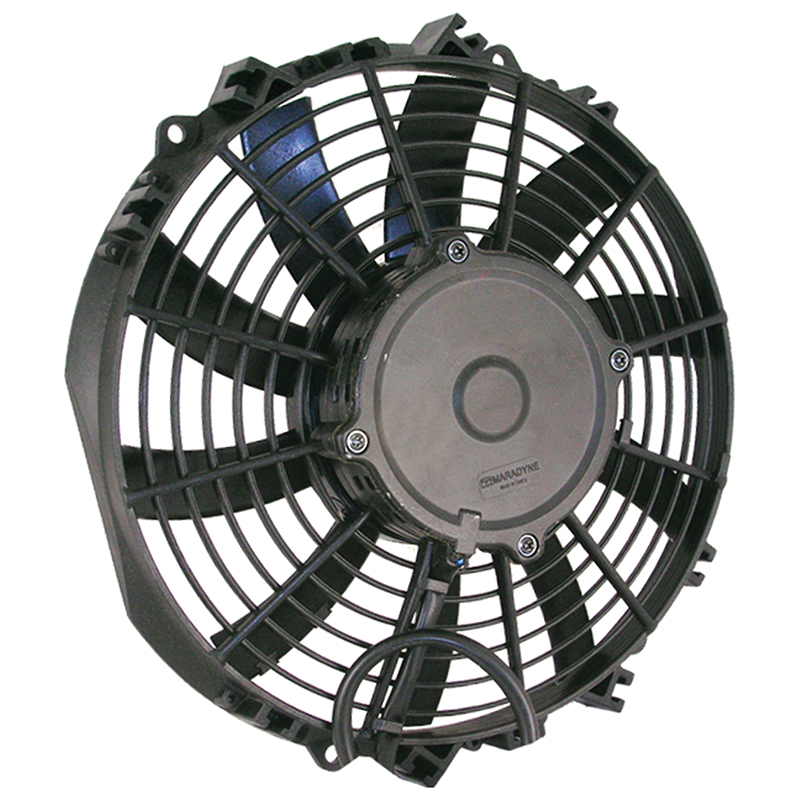

Maradyne High Performance Products Champion Low Profile Series Electric Fan
The lowest profile high performance reversible fans on the market. Water and dust proof seal heavy duty motors. Quiet S-blade design. Reversible, works as puller or pusher fan (ships as puller). All glass-filled nylon construction. Includes locking pigtail connector, rubber spacers for proper spacing off heat exchanger, and (4) 90° mounting feet.
Part Type: Low Profile Electric Fan
Application: Universal
Maximum Fan CFM: 950
Fan Quantity: One
Blade Style: "S"-Blade
Number of Blades: 10
Reversible: Yes
Motor: Yes, 130 Watt
Amperage Draw: 7.9 Amps

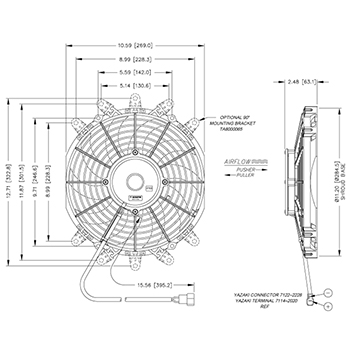

Fan Diameter: 10"
Height: 10"
Width: 10"
Thickness: 2.48"
Blade Material: Glass-Filled Nylon
Blade Color: Black
Shroud Material: Glass-Filled Nylon
Shroud Color: Black
Mounting Hardware Included: Yes, (4) 90° mounting feet and nylon tie kit
Installation Hardware Included: Yes, locking mating pigtail connector and rubber spacers
Optional Mounting Brackets (Sold Separately): MFA104 (metal bracket strips), MFA105 (aluminum brackets)
Optional Wiring Harness Included (Sold Separately): MFA100 (adjustable thermostat), MFA102 (185° temperature switch), MFA103 (195° temperature switch)
Manufacturer: Maradyne High Performance Fans
Manufacturer's Part Number: M103K
UPC: 810349010055
Weight:
Warranty: Maradyne High Performance Fans warrants to the Original Purchaser that the components of each fan package are free from defects in materials and workmanship for 12 months from the date of installation, or 18 months from the date of delivery and acceptance, whichever date first occurs. This warranty does not cover normal maintenance or adjustments, nor damage or malfunction caused by improper handling, maintenance, installation, abuse, accident, incorrect power source, negligence, carelessness of operation, or alteration or repair of the product in any manner outside the factory without the prior written consent Maradyne. customer further acknowledges and understands that this Agreement is based on performance derived from representative samples in a laboratory test environment. MARADYNE CANNOT AND DOES NOT WARRANT OR MAKE ANY REPRESENTATION OF FITNESS OR PERFORMANCE AS TO CUSTOMERS ACUTAL APPLICATION RESULTS; THIS WARRANTY IS LIMITED TO DEFECTS IN MATERIALS AND WORKMANSHIP ONLY.
Quantity: Sold as Each
|
