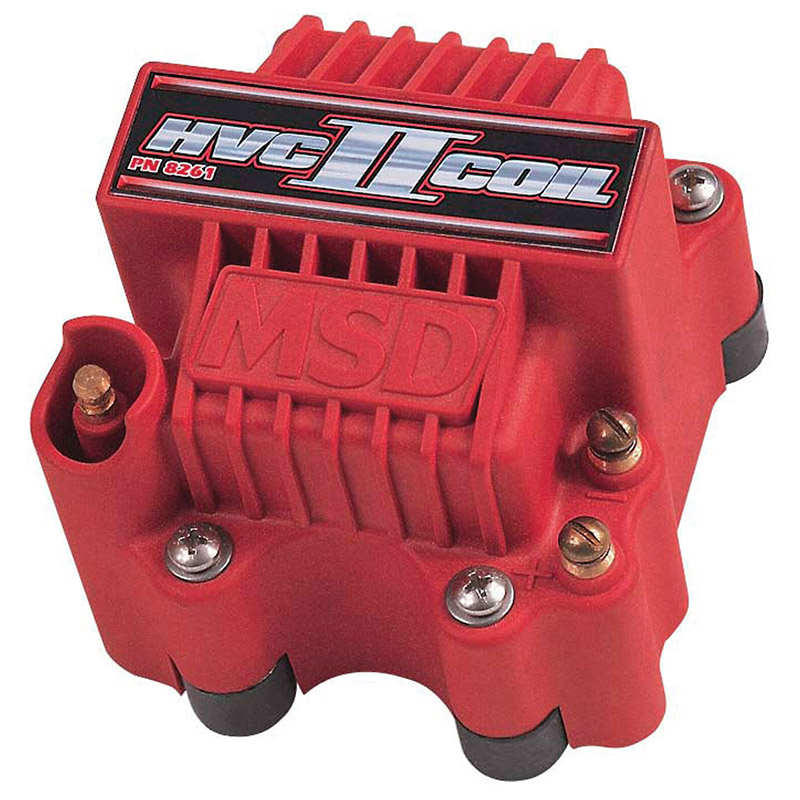

MSD Ignition HVC II Racing Coil Technology that produces incredible voltage and high current. Iron U-core design with a segmented bobbin for improved voltage distribution. Efficient windings and material produce incredible voltage, lightning quick rise time and lengthy spark duration. Windings are completely potted with a fracture resistant compound for vibration resistance. Includes vibration mounts. Specifically designed for MSD 7 and Digital 7 series ignition controls. Peak current of 2 amps (not milliamps, amps!) with a maximum voltage of 45,000 volts.
Part Type: Ignition Coil Application: Universal Coil Style: E-Core Maximum Voltage: 45,000V Primary Resistance: 0.016 ohms Secondary Resistance: 30 ohms Coil Internal Construction: Epoxy-filled Coil Shape: Square Turns Ratio: 70:1 Inductance: .250 mH Peak Current: 2 Amps Spark Duration: 150 uS Coil Wire Attachment: Male/HEI Mounting Bracket Included: Yes, Vibration Mounts Coil Wire Included: No Ballast Resistor Included: No Coil Color: Red Coil Length: 6.000" Coil Width: 6.000" Coil Height: 3.000" Manufacturer: MSD Ignition Manufacturer's Part Number: 8261 UPC: 085132082612 Weight: 3.75 lbs. Warranty: One Year Limited Warranty - MSD warrants this product to be free from defects in material and workmanship under its intended normal use*, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any products purchased through auction websites. If found to be defective, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods. This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representation whether expressed or implied, including and implied warranty of merchantability or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages. *Intended normal use means that this item is being used as was originally intended for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. It is the sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability for custom applications Quantity: Sold as Each
|
