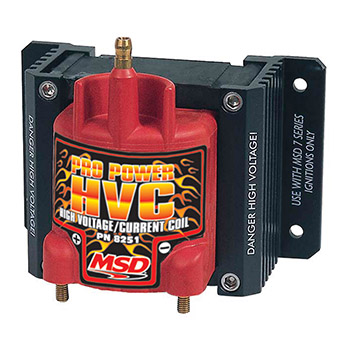

MSD Ignition HVC E-Core Coil
E-core design produces high voltage and current. Very efficient design where less loss occurs during the transfer of electricity due to the closed core design. Runs extremely cool, even at high rpm. For use with MSD 7 or 8 series ignitions only. Peak current of 1.1 Amps (not milliamps, amps!) with a maximum voltage of 45,000 volts.
Part Type: Ignition Coil
Application: Universal
Coil Style: E-Core
Maximum Voltage: 45,000V
Primary Resistance: .040 ohms
Secondary Resistance: 86K ohms
Coil Internal Construction: Epoxy-filled
Coil Shape: Square
Turns Ratio: 70:1
Inductance: 1.0 mH
Peak Current: 1.1 Amps
Spark Duration: 150 uS
Coil Wire Attachment: Male/HEI
Mounting Bracket Included: Yes
Coil Wire Included: No
Ballast Resistor Included: No
Coil Color: Red
Coil Length: 5.000"
Coil Width: 5.000"
Coil Height: 5.000"
Manufacturer: MSD Ignition
Manufacturer's Part Number: 8251
UPC: 085132082513
Weight: 3.00 lbs.
Warranty: One Year Limited Warranty - MSD warrants this product to be free from defects in material and workmanship under its intended normal use*, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. This warranty is void for any products purchased through auction websites. If found to be defective, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods. This shall constitute the sole remedy of the purchaser and the sole liability of MSD. To the extent permitted by law, the foregoing is exclusive and in lieu of all other warranties or representation whether expressed or implied, including and implied warranty of merchantability or fitness. In no event shall MSD or its suppliers be liable for special or consequential damages.
*Intended normal use means that this item is being used as was originally intended for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. It is the sole responsibility of the customer to determine that this item will work for the application they are intending. MSD will accept no liability for custom applications
Quantity: Sold as Each
|
