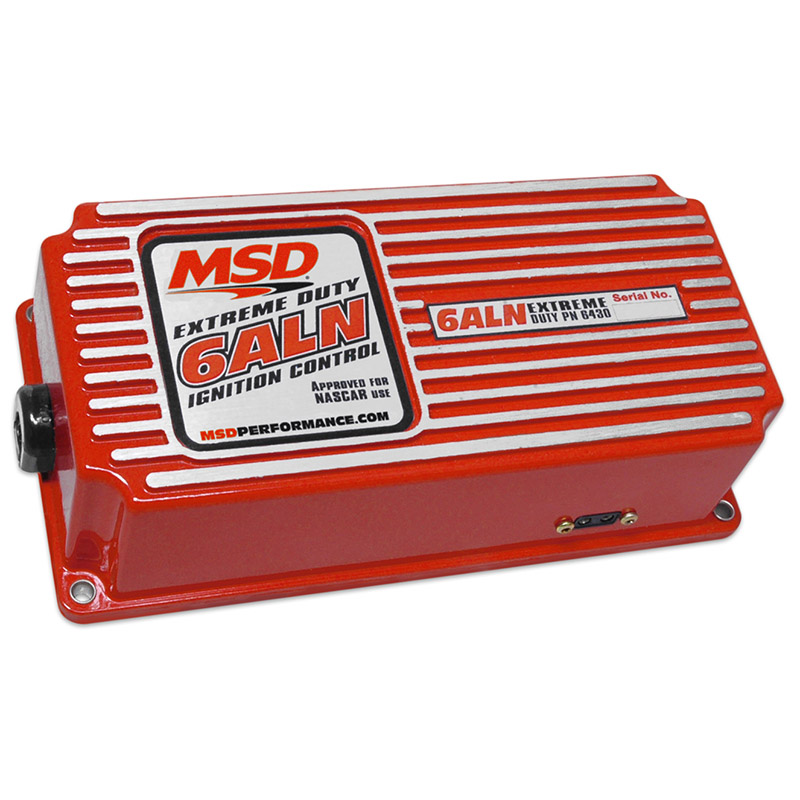

MSD Ignition Extreme Duty 6ALN Circle Track Ignition Control
Replaces the popular 6T Circle Track (6400) and 6-Off-road (6470). Designed for harsh racing applications such as stock cars, late models, modifieds, road racing, desert and off-road. This is the standard of circle track racing. Additional internal bracing and a heavy duty coating of Humi-Seal. This coating protects the circuitry from harsh vibrations and moisture, plus rubber vibration mounts are included. Originally designed with NASCAR in mind, the 6ALN is equipped with a mandatory 6-pin weathertight connector. The built-in rev control is adjustable with plug in modules and will save your engine from other rev damage caused by a missed shaft of driveline damage. Includes 3000, 6000, 7000 and 8000 rpm modules.
Part Type: Ignition Control
Application: Universal 4, 6, & 8 Cylinder, equipped with 12 volt
Ignition Box Output: Capacitive Discharge
Circuitry: Digital
PC Programmable: No
Data Acquisition: No
USB Interface: No
Timing Advance Capability: No
Rev Limiter: Yes, Includes 3000, 6000, 7000 & 8000 rpm modules
Timing Retard: No
RPM Activated Switch: No
Start Retard: No
General Purpose Input/Output Terminals: No
Multiple Spark Duration: 20°
Spark Energy: 105-115 Millijoules
Voltage Primary Output (Into Coil): 460-480 Volts
Voltage Secondary Output (Coil Output): 45,000 Volts
Operating Voltage: 12-18 Volts, Negative Ground
Operating Current Amp per RPM: 1 amp/1,000 RPM
RPM Range: 15,000 with 14.4 Volts
Coil Included: No
Suggested Coils: MSD8202, MSD8207, MSD8252, MSD8253
Ignition Box Color: Red
Ignition Box Length: 8 in.
Ignition Box Width: 4 in.
Ignition Box Height: 2.25 in.
Manufacturer: MSD Performance
Manufacturer's Part Number: 6430
UPC: 085132064304
Weight: 5.1 lbs.
Warranty: LIMITED WARRANTY- MSD warrants this product to be free from defects in material and workmanship under its intended normal use, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods. In no event shall MSD or its suppliers be liable for special or consequential damages.
Quantity: Sold as Each
|
