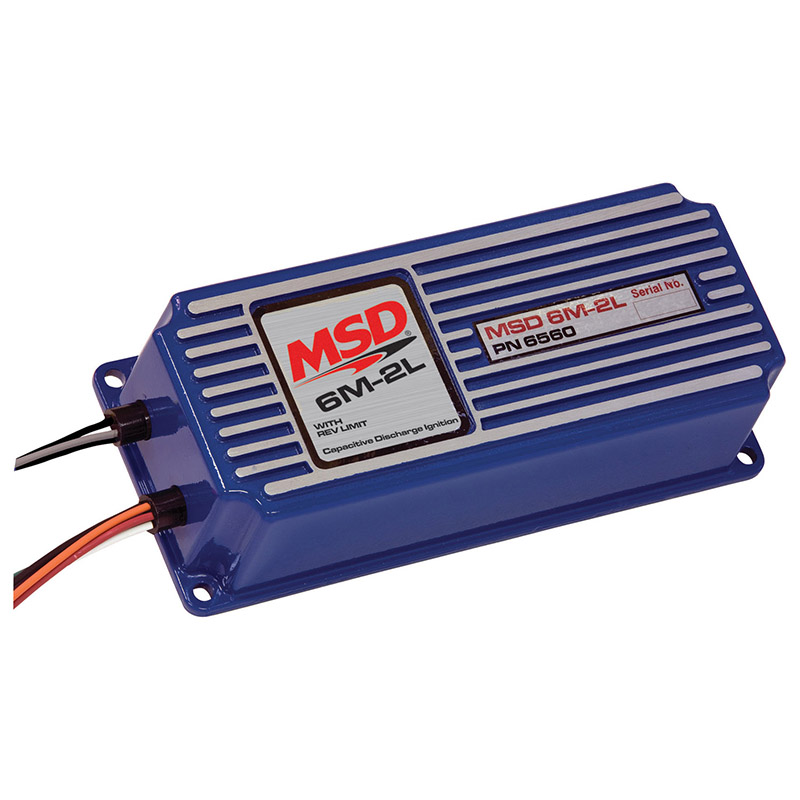

MSD Ignition 6M-2L Marine Ignition Control with Rev Limiter
The capacitive discharge (CD) design produces full power sparks throughout your boat's entire rpm range. A series of multiple sparks for 20 degrees of crankshaft rotation under 3000 rpm. Built-in soft touch rev control will save your engine from over rev damage. Weathertight connectors securely lock together to provide reliable connections that are unaffected by water, oil, gasoline, and most chemicals associated with boats. Can be triggered by either a magnetic pickup, amplifier, or breaker point distributor.
Part Type: Ignition Control
Application: Marine
Ignition Box Output: Capacitive Discharge
Circuitry: Analog
PC Programmable: No
Data Acquisition: No
USB Interface: No
Timing Advance Capability: No
Rev Limiter: Yes
Timing Retard: No
RPM Activated Switch: No
Start Retard: No
General Purpose Input/Output Terminals: No
Multiple Spark Duration: 20°
Spark Energy: 105-115 Millijoules
Voltage Primary Output (Into Coil): 460-480 Volts
Voltage Secondary Output (Coil Output): 45,000 Volts
Operating Voltage: 12-18 Volts, Negative Ground
Operating Current Amp per RPM: 1 amp/1,000 RPM
RPM Range: 15,000 with 14.4 Volts
Coil Included: No
Suggested Coils: MSD8202, MSD8207, MSD8252, MSD8253
Ignition Box Color: Blue
Ignition Box Length: 8 in.
Ignition Box Width: 3.5 in.
Ignition Box Height: 2.25 in.
Manufacturer: MSD Performance
Manufacturer's Part Number: 6560
UPC: 085132065301
Weight: 3.5 lbs.
Warranty: LIMITED WARRANTY- MSD warrants this product to be free from defects in material and workmanship under its intended normal use, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods. In no event shall MSD or its suppliers be liable for special or consequential damages.
Quantity: Sold as Each
|
