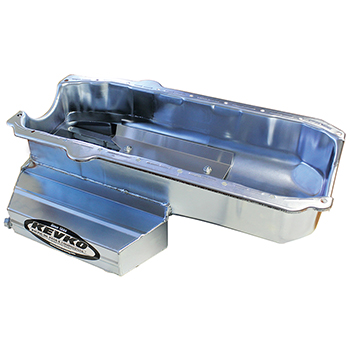

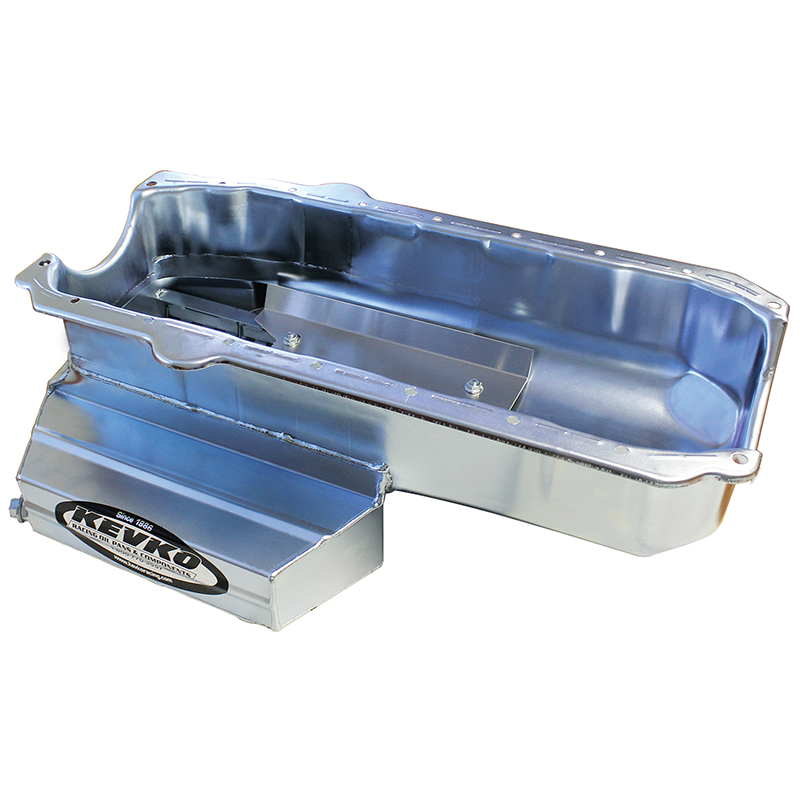

Kevko Sportsman Circle Track Pan
Feature packed for the sportsman racer. 7" deep, 12" long, and has a 15" wide sump. Inside there are 6 gates, a diverter, crank scraper, and a removable tray. The capacity is 7 quarts in the pan, and it also has an oil temp fitting.
Part Type: Oil Pan
Application: Chevrolet Small Block Pre-1985
Oil Pan Style: Circle Track
Oil Pan Capacity: 7 Quarts
Oil System Capacity:8 Quarts
Oil Pan Depth: 4.250"
Oil Pan Sump Depth: 7.000"
Oil Pan Sump Length: 12.000"
Sump Location: Rear
Sump Style: Wet
Kicked Out Sump: Yes, 3.0" Both Sides
Rear Main Seal Style: 2-Piece
Stroker Clearanced: Yes
Maximum Stroke with OE Rod: 4.125"
Dipstick Provision: No
Dipstick Location: Driver/Passenger Side
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: Yes
Crank Scraper Included: Yes
Windage Tray Included: Yes
Sump Tray Included: No
Inspection Fitting: Yes
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: No
Recommended Pickup for M55 Style Pump: KEV1005
Recommended Pickup for M55HV Style Pump: KEV1006
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Drain Plug Included: Yes
Gaskets Included: No
Hardware Included: No
Oil Pan Material: Steel
Oil Pan Finish: Zinc Plated
Manufacturer: Kevko Oil Pans & Components
Manufacturer's Part Number: 1093
Weight: 12.00 lbs.
Warranty: Race Application, No Warranty express or implied
Quantity: Sold as Each
|
