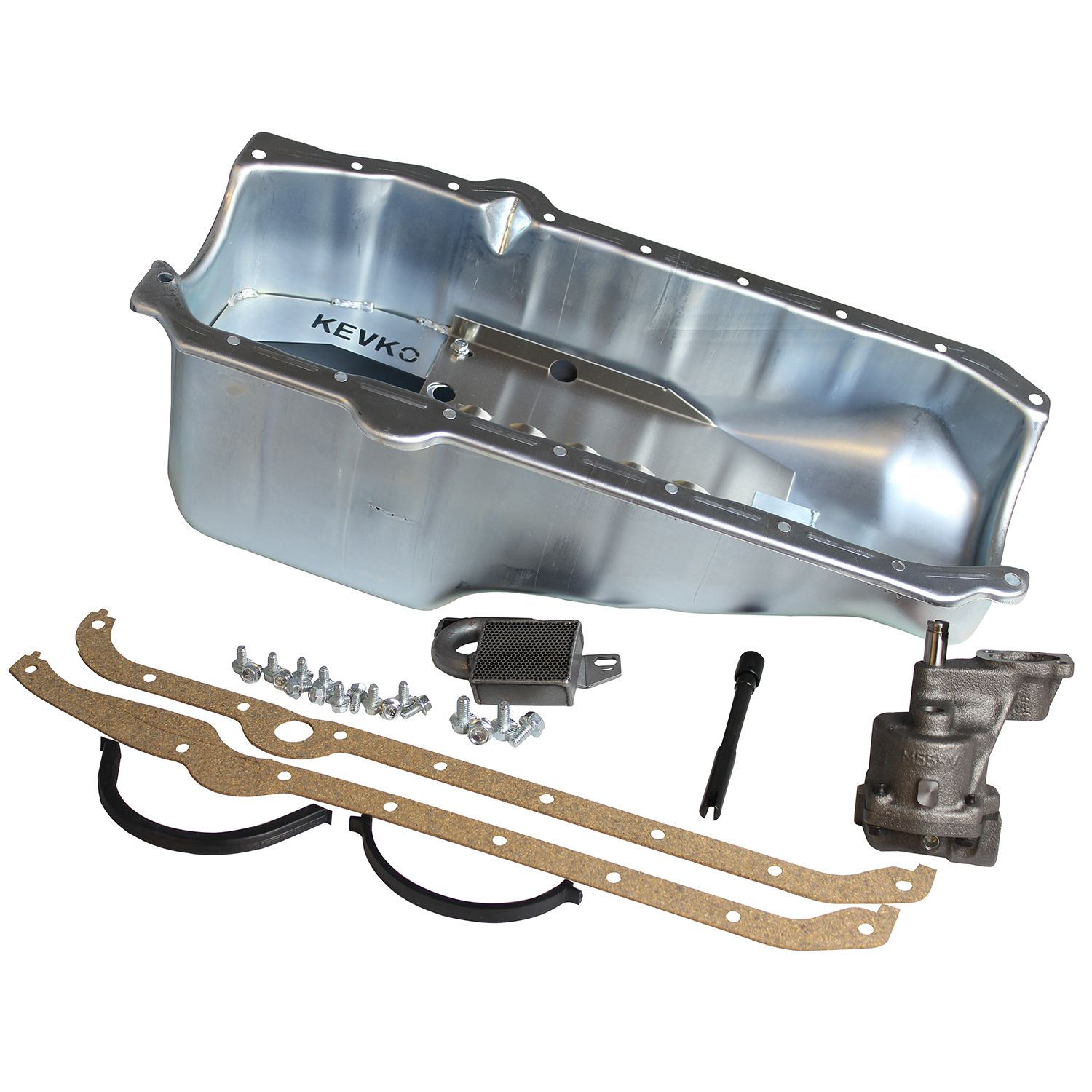

Kevko IMCA Hobby/Stock Oil Pan Kit
Everything you need to bolt-on total oil control for the track. Features the Kevko stock appearing oil pan with bolt-in windage tray. Money saving easy order kit.
Part Type: Oil Pan Kit
Application: Chevrolet Small Block Pre-80
Oil Pan Style: Circle Track
Oil Pan Capacity: 4 Quarts
Oil System Capacity:5 Quarts
Oil Pan Depth: 7.500"
Oil Pan Sump Depth:
Oil Pan Sump Length:
Sump Location: Rear
Sump Style: Wet
Kicked Out Sump: No
Rear Main Seal Style: 2-Piece
Stroker Clearanced: No
Maximum Stroke with OE Rod:
Dipstick Provision: Yes
Dipstick Location: Driver Side
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: Yes
Crank Scraper Included: Yes
Windage Tray Included: Yes
Sump Tray Included: No
Inspection Fitting: No
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: Yes
Recommended Pickup for M55 Style Pump: KEV1001-1
Recommended Pickup for M55HV Style Pump: KEV1001
Oil Pump Included: Yes
Oil Pump Driveshaft Included: Yes
Drain Plug Included: Yes
Gaskets Included: Yes
Hardware Included: Yes
Oil Pan Material: Steel
Oil Pan Finish: Zinc Plated
Manufacturer: Kevko Oil Pans & Components
Manufacturer's Part Number: 2001LH-KH
Weight: 12.00 lbs.
Warranty: Race Application, No Warranty express or implied
Quantity: Sold as Each
Note: Fits all Chevy Chassis except 62-67 Nova/Chevy II.
|
