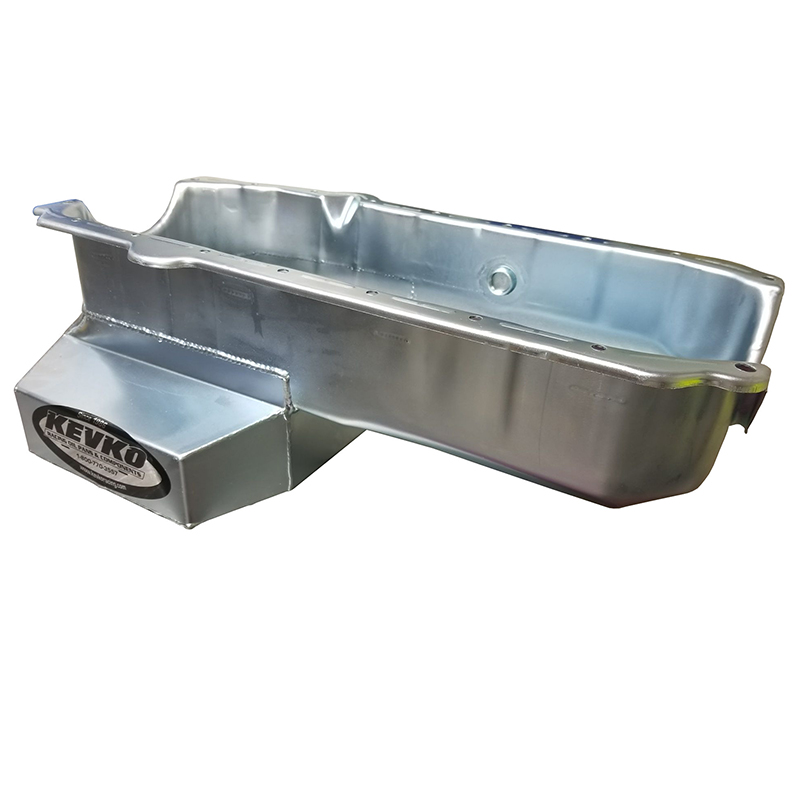

Kevko Circle Track Oil Pan
A true circle track pan at a "claimer" price. These 7 quart pans are 7-1/4" deep, have a passenger side kicked out sump, 2 gates and a scraper to control oil. Inspection plug is also included.
Part Type: Oil Pan
Application: Chevrolet Small Block 1980-1985 Dart & SHP (except '62-'67 Chevy II, V8 Vega/Monza)
Oil Pan Style: Circle Track
Oil Pan Capacity: 6 Quarts
Oil System Capacity:7 Quarts
Oil Pan Depth: 4.250"
Oil Pan Sump Depth: 7.250"
Oil Pan Sump Length: 10.000"
Sump Location: Rear
Sump Style: Wet
Kicked Out Sump: Yes, 3.0" Right Side
Rear Main Seal Style: 2-Piece
Stroker Clearanced: Yes
Maximum Stroke with OE Rod: 4.125"
Dipstick Provision: Yes
Dipstick Location: Passenger Side
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: Yes
Crank Scraper Included: Yes
Windage Tray Included: No
Sump Tray Included: No
Inspection Fitting: Yes
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: No

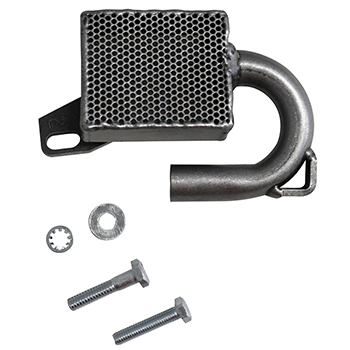

Recommended Pickup for M55 Style Pump: KEV1001
Recommended Pickup for M55HV Style Pump: KEV1002
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Drain Plug Included: Yes
Gaskets Included: No
Hardware Included: No
Oil Pan Material: Steel
Oil Pan Finish: Zinc Plated
Manufacturer: Kevko Oil Pans & Components
Manufacturer's Part Number: 1086RH
Weight: 12.00 lbs.
Warranty: Race Application, No Warranty express or implied
Quantity: Sold as Each
|
