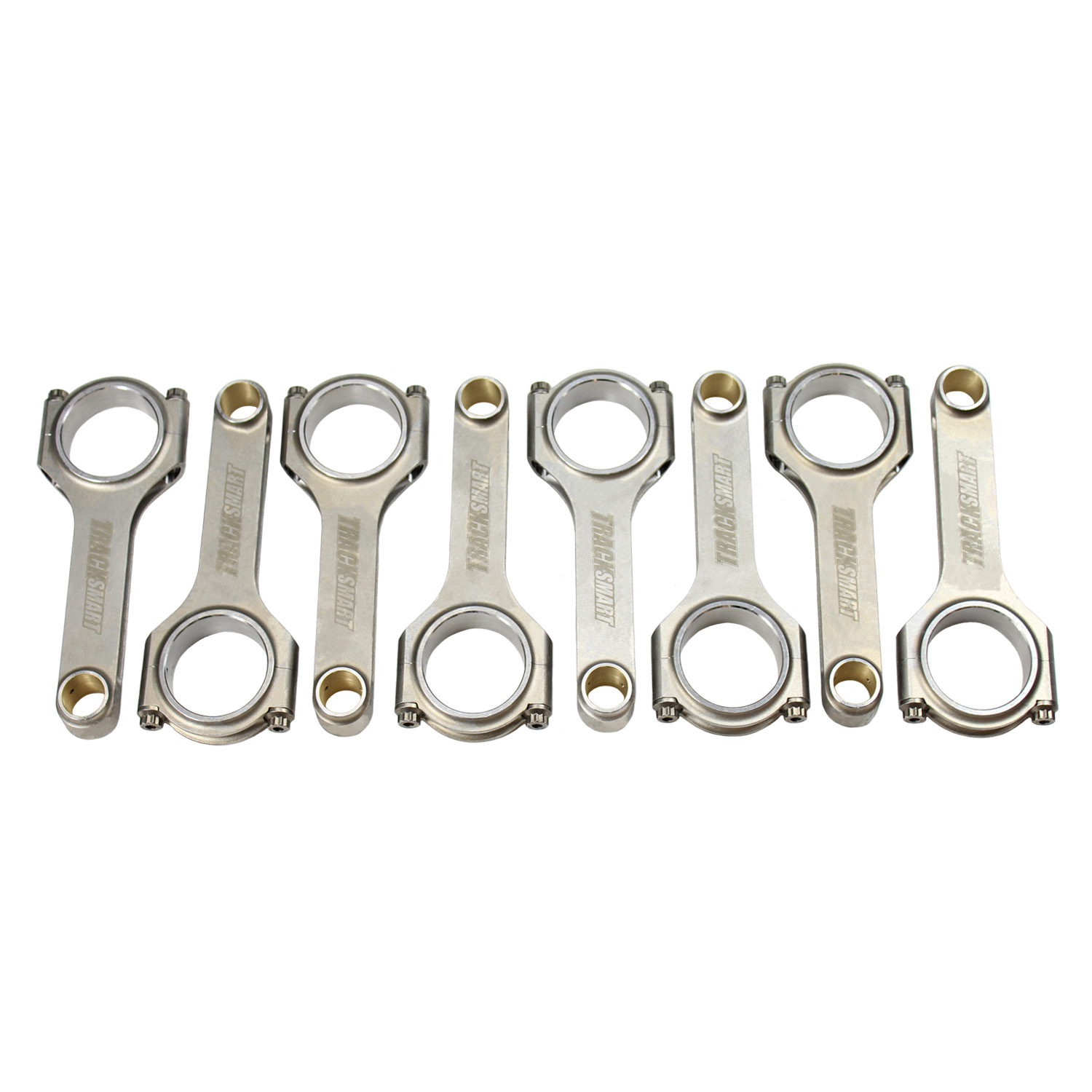

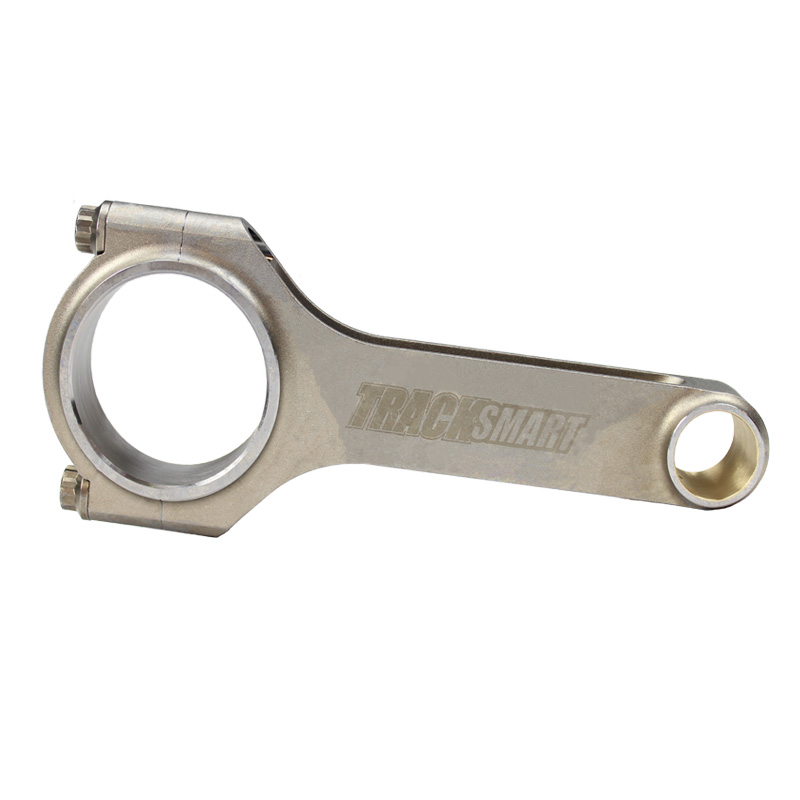

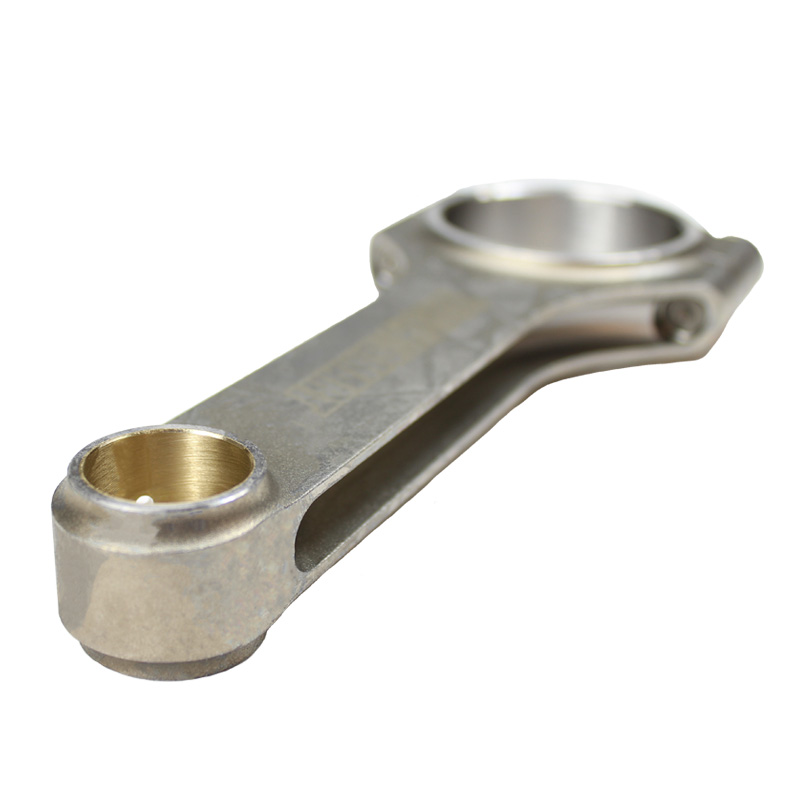

Forged H-Beam Rods
Computer designed with the professional engine builder in mind. The H-Beam design has been the goto for strength and reliability. The Howards Track Smart rod is made to be a step above the rest. Certified 4340 high tensile material is CNC machined on precision equipment to ensure accuracy and the removal of all surface imperfections. They are heat treated using a special process to ensure no stress risers remain. Profiled for long stroke applications. Double ribbed caps for greater bearing support. Rod cap alignment dowels to keep bearing caps precisely aligned. Bronze bushed for floating pins. Finished off with 7/16" ARP 2000 (220,000 psi) cap screw fasteners to secure the caps. Sets of 8.
- Precision CNC Machined
- Certified 4340 Aircraft Quality Steel
- Special Heat-Treat to Ensure Strength & Reliability
- Fully Stress relieved & Shot Peened
- X-Rayed & Ultrasonically Tested
- 7/16" ARP 2000 Fasteners
Part Type: Connecting Rods
Application: Chevrolet Small Block (LJ)
Connecting Rod Beam Style: H-Beam
Material: Forged 4340 Steel
Connecting Rod Finish: ARP2000 alloy
Magnafluxed: No Connecting Rod Length Center to Center: 6.250”
Connecting Rod Journal: 2.100”
Housing Bore: 2.225”
Pin Bore Diameter: .927”
Big End Width: 2.2250”
Pin End Width: 2.100”
Remanufactured: No Typical Rod Weight: 640
Weight Matched Set: Yes
Cap Alignment: Alignment Sleeve
Stroker Clearanced: Yes
Fastener Type: Cap Screw
Fasteners: 7/16” ARP 2000
Fastener Head Style: 12 Point
Fastener Yield Strength: 220,000 psi
Fastener Torque: 70 ft/lbs. with ARP moly lube on threads
Manufacturer: Howards Racing Components
Manufacturer's Part Number: HRCTS62502100
Warranty: Sold without warranty, expressed or implied
Quantity: Sold in Sets of 8 Wrist Pin Style: Floating
|
