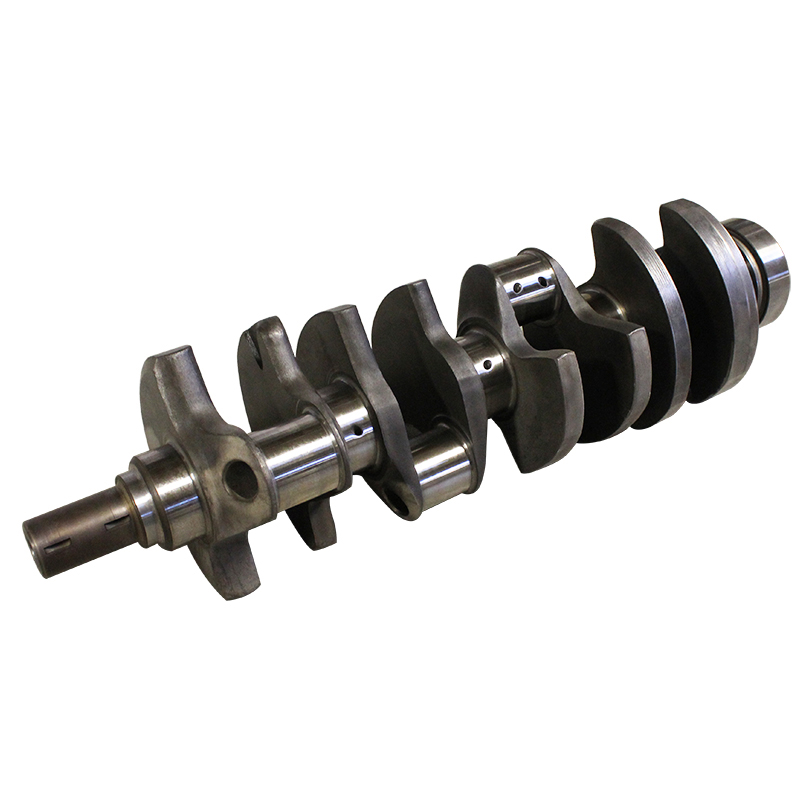

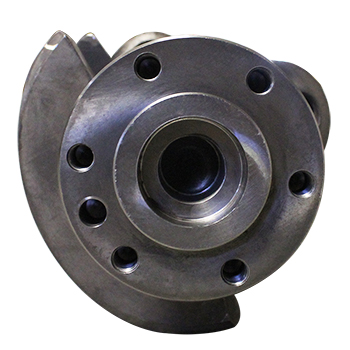

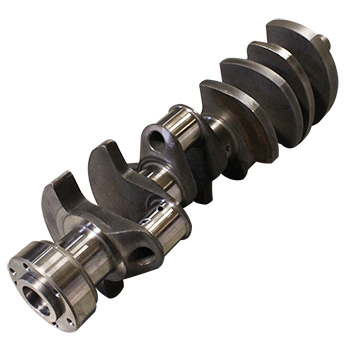

Howards Cams™ Track Smart 3 4340 Steel Crankshaft, Chev 454 Main, 2pc Rear Main
Computer designed premium 4340 steel forgings. Properly placed counterweights that not only improve balance but reduce bearing loads. Forgings are rough machined in a process that includes double stress relief operations that make these crankshafts dimensionally stable. These forgings are shipped to the leader in high performance crankshaft machining, Callies Performance Products. Callies completely finishes these crankshafts to their own high standards. Hardened with a deep nitride for superior wear resistance, ideal for abusive track environments. All rod journals are drilled and counterweights are profiled for piston clearance. Large .125" radii on all journals (chamfered bearings required). Consistent grind and polish, along with precise stroke and index.
• Computer designed
• Premium 4340 steel forgings
• Machined and finished to exacting standards at Callies
• Double stress relief machining for dimensional stability
• Properly placed counterweights for improved balancing
• Counterweights designed to reduce bearing loads
• Lightening holes in all hole throws
• Deep nitride hardening for superior wear resistance
Part Type: Crankshaft
Application: Chevrolet Big Block
Crankshaft Material: 4340 Foreged Steel with Center Counterweight
Nitrided: Yes
Rear Main Seal Style: 2 piece
Engine Main Bearing Type: 454 Main
Stroke: 4.250"
Rod Length: 6.385" and up
Rod Journal Diameter: 2.200"
Crankshaft Snout Size: Standard
Engine Balance: Internal
Lightening Holes In Rod Throws: Yes
Rod Bearings Included: No
Requires Narrow Bearings: Yes
Main Bearings Included: No
Manufacturer: Howards Cams™
Manufacturer's Part Number: H454256322T
Weight: N/A
Warranty: Sold without warranty, expressed or implied
Quantity: Sold as Each
|
