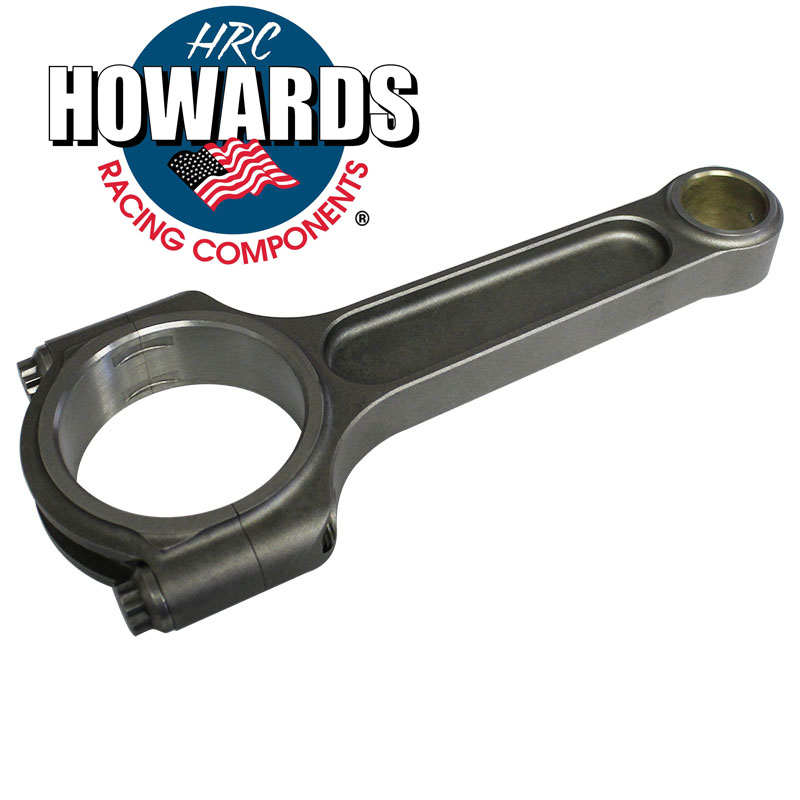

Howards Ultimate Duty Forged Billet Rods
These rods start with certified 4340 aircraft quality high nickel steel and are fully CNC machined on the newest generation of equipment to insure the removal of all surface imperfections. They are specially heat-treated using a multi-phase process to insure the ultimate in strength and reliability. Fully stress relieved and shot peened to insure no stress risers remain. Profiled for long stroke applications and weight savings. Rod caps are double ribbed for added strength. Rod cap alignment dowels to keep bearing caps precisely aligned. Bronze bushed for floating pins. 7/16" ARP 2000 (220,000 psi) capscrew fasteners secure the caps.
• 1000+ HP Rating
• American 4340 High Nickel Certified Aircraft Quality Steel
• American Multi-Phase Heat-Treating
• American Machined
Part Type: Connecting Rods
Application: Chrysler 5.7L Hemi
Connecting Rod Beam Style: I-Beam
Material: 4340 Billet Steel
Connecting Rod Finish: Shot-Peened
Magnafluxed: Yes
Connecting Rod Length Center to Center: 6.250”
Connecting Rod Journal: 2.125”
Housing Bore: 2.225”
Pin Bore Diameter: .866”
Big End Width: .933”
Pin End Width: .875”
Remanufactured: No
Pin Fit: Bushed
Typical Rod Weight: 661g
Weight Matched Set: Yes
Cap Alignment: Alignment Sleeve
Stroker Clearanced: No
Fastener Type: Cap Screw
Fasteners: 7/16” ARP 2000
Fastener Head Style: 12 Point
Fastener Yield Strength: 220,000 psi
Fastener Torque: 70 ft/lbs. with ARP moly lube on threads
Horsepower Rating: 1000+
Recommended Bearings: Clevite CB1808P
Manufacturer: Howards Cams & Racing Components
Manufacturer's Part Number: BR6251-HEMI
Connecting Rod Set Weight: 16.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold in Sets of 8
|
