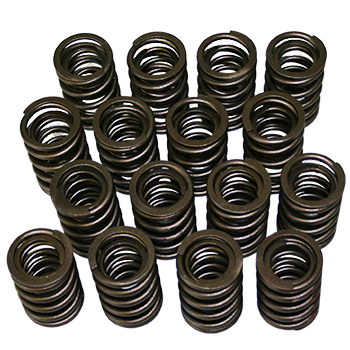

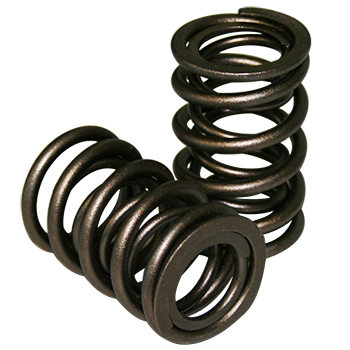

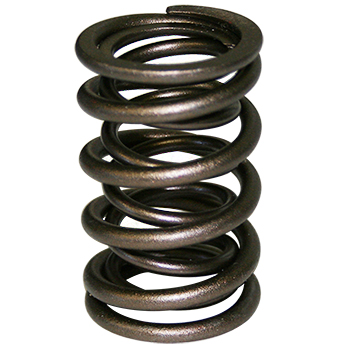

Howards Cams Small Dia. Dual Hydraulic Flat Tappet Valve Springs
Manufactured of aircraft-grade chrome silicone with advanced heat-treating. Outers then receive an advanced electro polished finish and stress relieved. This enhanced finish increases valve spring life and fatigue resistance for lap after lap consistency. Designed for racing hydraulic and mechanical flat tappet as well as performance hydraulic roller camshafts. Set of 16.
Part Type: Valve Springs
Style: Small Dia. Dual Hydraulic Flat Tappet Valve Springs
Type: Dual
Damper Included: No
Outer Spring Out Side Diameter (O.D.): 1.384"
Outer Spring In Side Diameter (I.D.): 1.060"
Inner Spring Out Side Diameter (O.D.): 1.060"
Inner Spring In Side Diameter (I.D.): .804"
Seat Pressure: 105 @ 1.625"
Open Pressure: 230 @ 1.150"
Valve Spring Rate: 263
Maximum Suggested Lift: .655"
Coil Bind: .910"
Electro Polished: No
Nitrided: No
Suggested Steel Retainers: 97118
Suggested Titanium Retainers: 97216
Suggested Seat Cups: 96005
Suggested Locators: 96034
Manufacturer: Howards Cams
Manufacturer's Part Number: 98341
Packaged Weight: 3.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold in Sets of 16
|
