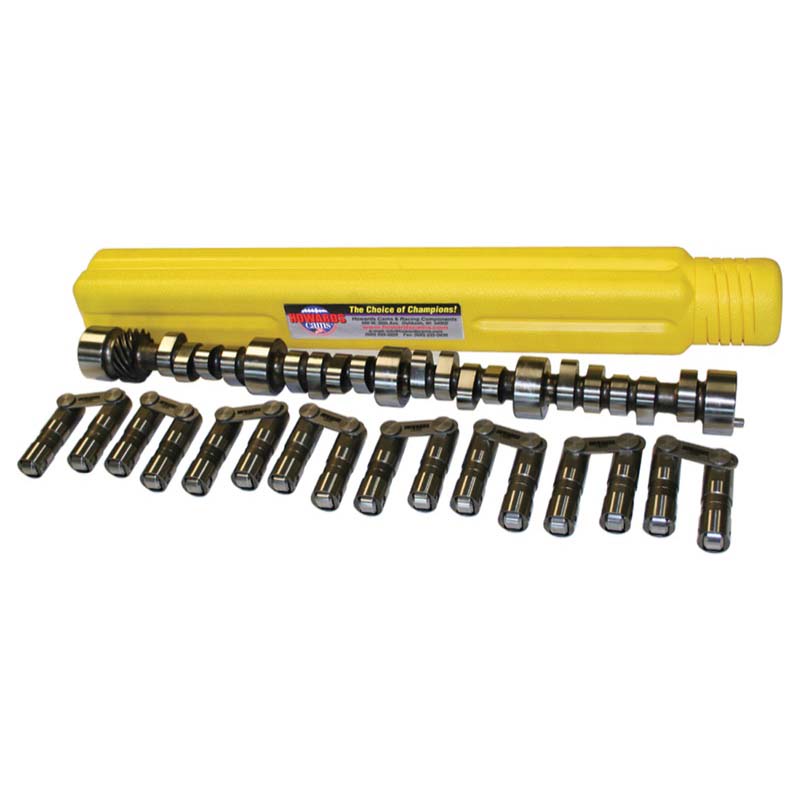

Howards Cams, Retro-Fit Hydraulic Roller Camshaft & Lifter Set, Chev SB, 219/225 @ .050, .525/.525, 112 LS

Howards Cams Hydraulic Roller Cam & Lifter Sets
These cams offer significant advantages of additional lift and more power compared to flat tappet designs. The latest in lobe design produces better throttle response and top end horsepower. Designed with fast ramp speeds to give you the most power possible while maintaining the easy maintenance of a hydraulic cam. Available from daily street performance, street/strip, to competition designs. Money saving cam and lifter sets include camshaft and a set of Howards Cams premium O.E. style performance hydraulic roller lifters.

Part Type: Camshaft and Lifter Set
Application: Chevrolet Small Block V8 262-400, '55-'98
Ignition Firing Order: OE (1-8-4-3-6-5-7-2)
Cam Style: Hydraulic Roller
Basic RPM Range: 1500-5600
Manufacturers Description: Fair idle, performance street, nice streetable mid-range power. 1800+ stall suggested.
Intake Duration @ .050": 219
Exhaust Duration @ .050": 225
Advertised Intake Duration (@ .006"): 272
Advertised Exhaust Duration (@ .006"): 278
Intake Valve Lift with OE Rocker Ratio (1.50): .525"
Exhaust Valve Lift with OE Rocker Ratio (1.50): .525"
Intake Lobe Lift: .350"
Exhaust Lobe Lift: .350"
Intake Valve Lift with 1.55 Rocker Ratio: .542"
Intake Valve Lift with 1.60 Rocker Ratio: .560"
Intake Valve Lift with 1.65 Rocker Ratio: .577"
Exhaust Valve Lift with 1.55 Rocker Ratio: .542"
Exhaust Valve Lift with 1.60 Rocker Ratio: .560"
Exhaust Valve Lift with 1.65 Rocker Ratio: .577"
Lobe Separation Angle: 112 Degrees
Intake Centerline: 108 Degrees
Lifters Included: Yes, 91164N, Performance Hydraulic Roller
