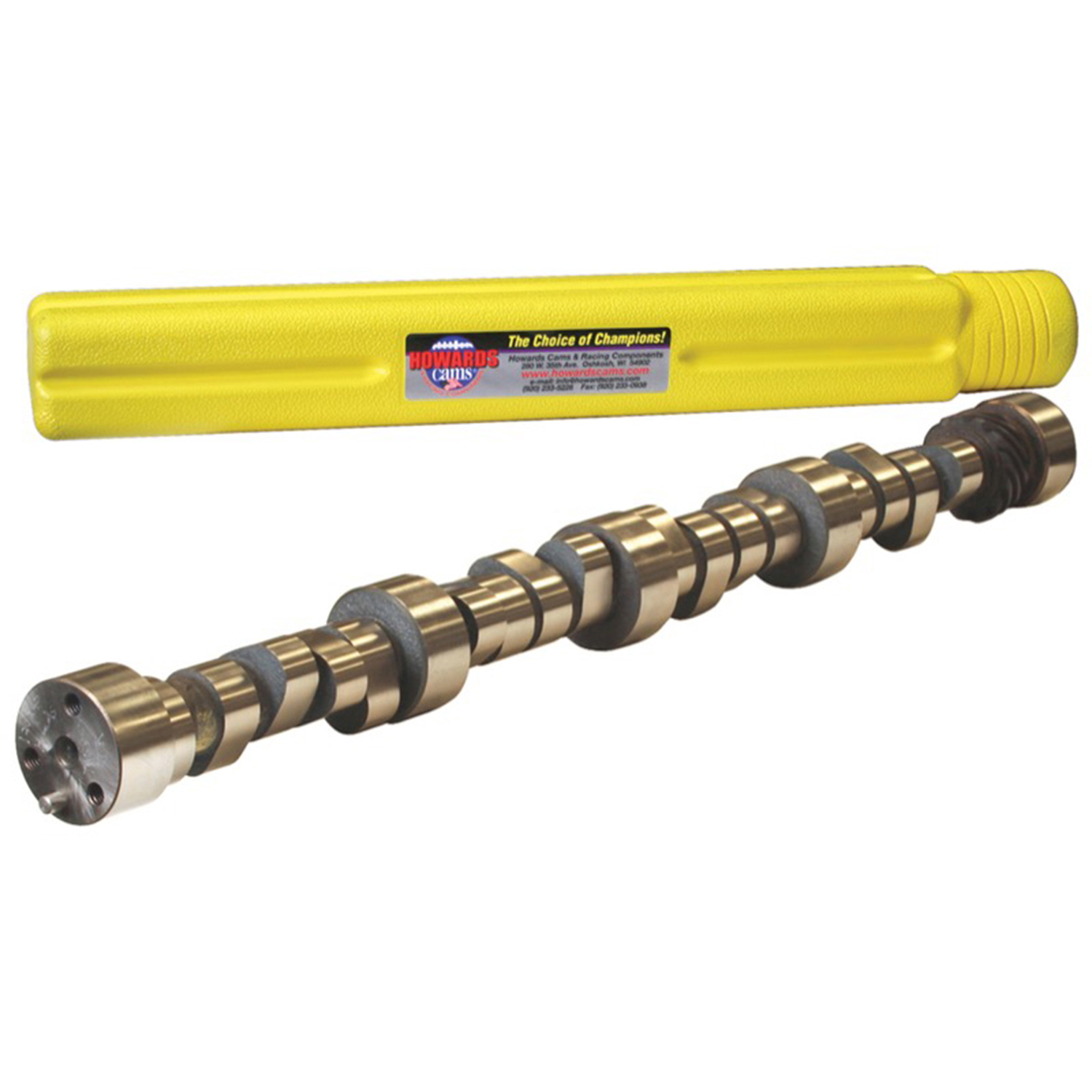

Howards Cams Retro-Fit Hydraulic Flat Tappet Camshaft
These cams offer significant advantages of additional lift and more power compared to flat tappet designs. The latest in lobe design produces better throttle response and top end horsepower. Designed with fast ramp speeds to give you the most power possible while maintaining the easy maintenance of the hydraulic cam. More applications available from daily street performance, street/strip, to competition designs. Money saving cam and lifter sets include cam and a set of Howards™ premium O.E. Style performance street series Retro-Fit (tie-bar) or MaxEffort™ hydraulic roller lifters, depending on application.
Manufactured on Dedicated High Precision Machines
Held to Strict Tolerances
High grade quality cores
100% Rockwell Tested & Parkerized Ensuring the Highest Quality
Hard protective packaging
Part Type: Camshaft
Cam Series: Retro-Fit
Application: Chevrolet Small Block 262-400 1955-1998
Ignition Firing Order: (1-8-4-3-6-5-7-2)
Cam Style: Hydraulic Flat Tappet
Basic RPM Range: 1000-4800
Manufacturer's Description: Small Base Circle, Fair idle, good low & mid range performance increase.
Intake Duration @ .050": 213
Exhaust Duration @ .050": 217
Advertised Intake Duration (@ .006"): 266
Advertised Exhaust Duration (@ .006"): 270
Intake Valve Lift with OE Rocker Ratio (1.50): .485"
Exhaust Valve Lift with OE Rocker Ratio (1.50): .495"
Intake Lobe Lift: .323"
Exhaust Lobe Lift: .330"
Intake Valve Lift with 1.55 Rocker Ratio: .501"
Intake Valve Lift with 1.60 Rocker Ratio: .517"
Intake Valve Lift with 1.65 Rocker Ratio: .533"
Exhaust Valve Lift with 1.55 Rocker Ratio: .512"
Exhaust Valve Lift with 1.60 Rocker Ratio: .528"
Exhaust Valve Lift with 1.65 Rocker Ratio: .545"
Lobe Separation Angle: 110 Degrees
Intake Centerline: 106 Degrees
Lifters Included: No
Small Base Circle: Yes
Cam Gear Attachment: 3-Bolt
Valve Adjustment: Zero Lash Plus ½ Turn
Manufacturer: Howards Cams & Racing Components™
Manufacturer's Part Number: 110235-10S
Weight: 10.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Oil with ZDDP or ZDDP Additive Required.
Note: Stock (O.E.) valve springs cannot be used.
Note: Requires Thrust Button.
|
