Howards Cams, Retro-Fit Hydraulic Roller Camshaft, Cadillac |
|
 |

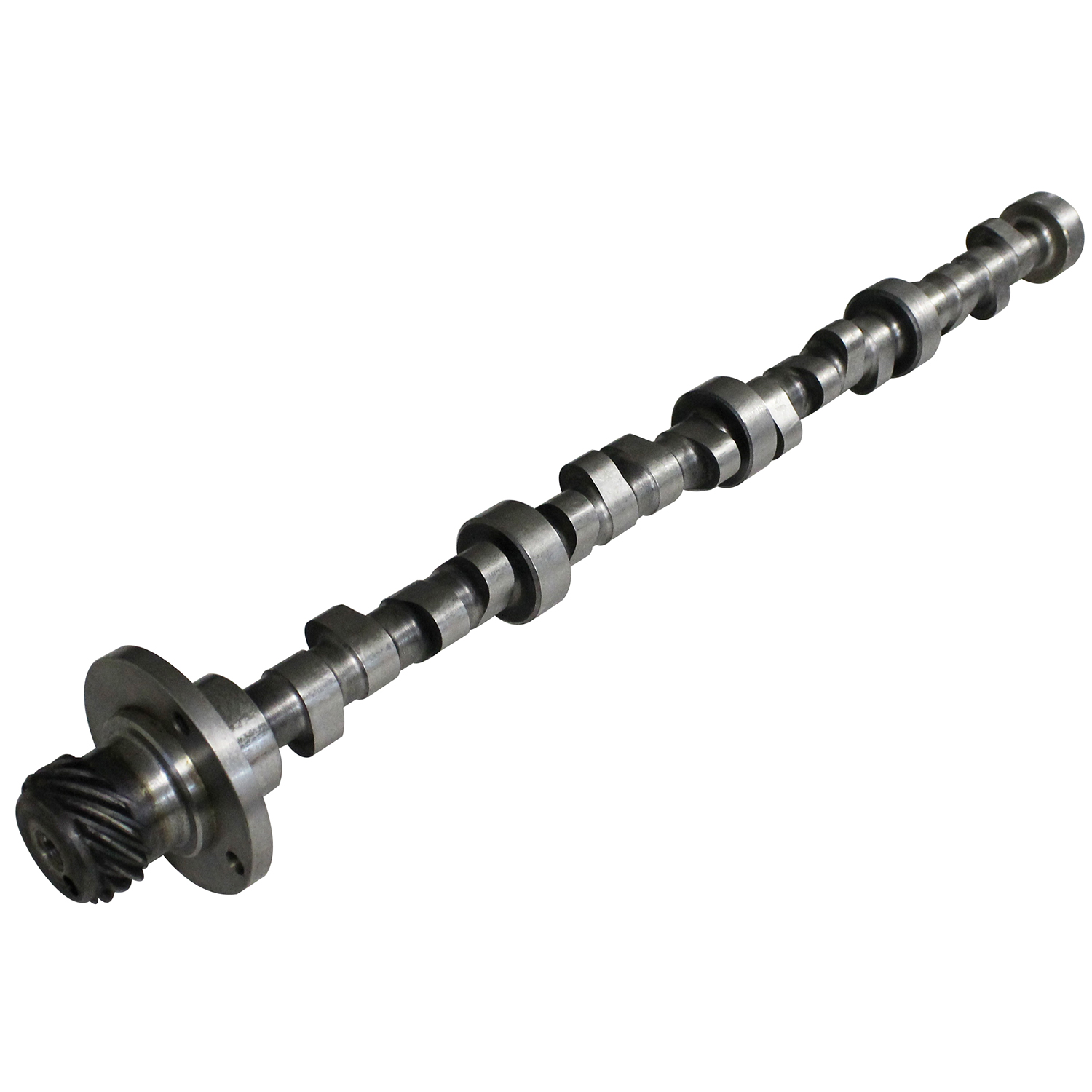

Howards Cams Retro-Fit Hydraulic Roller Camshaft
These cams offer significant advantages of additional lift and more power compared to flat tappet designs. The latest in lobe design produces better throttle response and top end horsepower. Designed with fast ramp speeds to give you the most power possible while maintaining the easy maintenance of the hydraulic cam. More applications available from daily street performance, street/strip, to competition designs. Money saving cam and lifter sets include cam and a set of Howards™ premium O.E. Style performance street series Retro-Fit (tie-bar) or MaxEffort™ hydraulic roller lifters, depending on application.
Part Type: Camshaft
Cam Series: Retro-Fit
Application: Cadillac 368-425-472-500 1968-1984
Ignition Firing Order: (1-5-6-3-4-2-7-8)
Cam Style: Hydraulic Roller Camshaft
Basic RPM Range: 2500-6000
Manufacturers Description: Rough idle, strong mid range torque & horsepower.
Intake Duration @ .050": 233
Exhaust Duration @ .050": 241
Advertised Intake Duration (@ .050"): 286
Advertised Exhaust Duration (@ .050"): 294
Intake Valve Lift with OE Rocker Ratio (1.65): .583”
Exhaust Valve Lift with OE Rocker Ratio (1.65): .583”
Intake Lobe Lift: .353”
Exhaust Lobe Lift: .353”
Intake Valve Lift with 1.70 Rocker Ratio: .601”
Intake Valve Lift with 1.75 Rocker Ratio: .618”
Exhaust Valve Lift with 1.70 Rocker Ratio: .601”
Exhaust Valve Lift with 1.75 Rocker Ratio: .618”
Lobe Separation Angle: 110 Degrees
Intake Centerline: 106 Degrees
Small Base Circle: No
Lifters Included: No
Cam Gear Attachment: Single-Bolt
Valve Adjustment: Zero Lash Plus ½ Turn
Manufacturer: Howards Cams & Racing Components
Manufacturer's Part Number: 522105-10
Weight: 14.0 lbs.
Warranty: Race Application, No warranty expressed or implied.
Quantity: Sold as Each
Note: Stock (O.E.) valve springs cannot be used.
|
|
|
