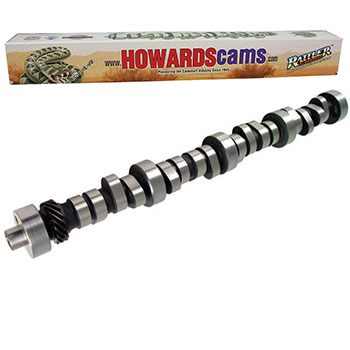

Howards Rattler Retro-Fit Hydraulic Roller Camshaft
The best of both worlds. The performance of a high lift roller cam with the easy maintenance and durability of a hydraulic. These Rattler Cams are for street enthusiasts who want the classis exhaust sound, but also want true performance to go with it. Great for street/strip and bracket racing too. Reduce friction, increase torque and horsepower. They give you the performance and throttle response you expect from a performance cam. Rockwell checked to ensure the highest quality control standards available anywhere. If you want both sound and performance, you need a Howards Cams Rattler.
Note: to get the best exhaust, you should use a good dual exhaust system without a cross-over. A cross over will add minor performance, but mellow the exhaust tone.
Manufactured on Dedicated High Precision Machines
Held to Strict Tolerances
High grade quality cores
Rockwell Tested Ensuring the Highest Quality
Hard protective packaging
Part Type: Camshaft
Application: Ford Small Block 221-302 1963-1995 (Except 302 H.O.)
Ford Small Block 351W 1969-1996
Ignition Firing Order: OE (1-3-7-2-6-5-4-8)
Cam Style: Rattler Retro-Fit Hydraulic Roller
Basic RPM Range: 2000-5900
Manufacturers Description: Small Base Circle, Big Mama Rattler, Lopey idle, street or street/strip. Needs 9.0:1 compression, 2500+ stall.
Intake Duration @ .050": 235
Exhaust Duration @ .050": 243
Advertised Intake Duration (@ .006"): 288
Advertised Exhaust Duration (@ .006"): 296
Intake Valve Lift with OE Rocker Ratio (1.60): .565"
Exhaust Valve Lift with OE Rocker Ratio (1.60): .565"
Intake Lobe Lift: .353"
Exhaust Lobe Lift: .353"
Intake Valve Lift with 1.65 Rocker Ratio: .583"
Intake Valve Lift with 1.70 Rocker Ratio: .600"
Intake Valve Lift with 1.72 Rocker Ratio: .607"
Exhaust Valve Lift with 1.65 Rocker Ratio: .583"
Exhaust Valve Lift with 1.70 Rocker Ratio: .600"
Exhaust Valve Lift with 1.72 Rocker Ratio: .607"
Lobe Separation Angle: 109 Degrees
Intake Centerline: 103 Degrees
Lifters Included: No
Small Base Circle: No
Cam Gear Attachment: Single-Bolt
Valve Adjustment: Zero Lash Plus 1/2 Turn
Manufacturer: Howards Cams & Racing Components
Manufacturer's Part Number: 228045-09S
Weight: 10.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Stock (O.E.) valve springs cannot be used.
|
