Howards Cams, Oval Track Lift Rule Mechanical Flat Tappet Camshaft, Chev SB, 256/266 @ .050, .515/.515, 106 LS |
|
 |
|

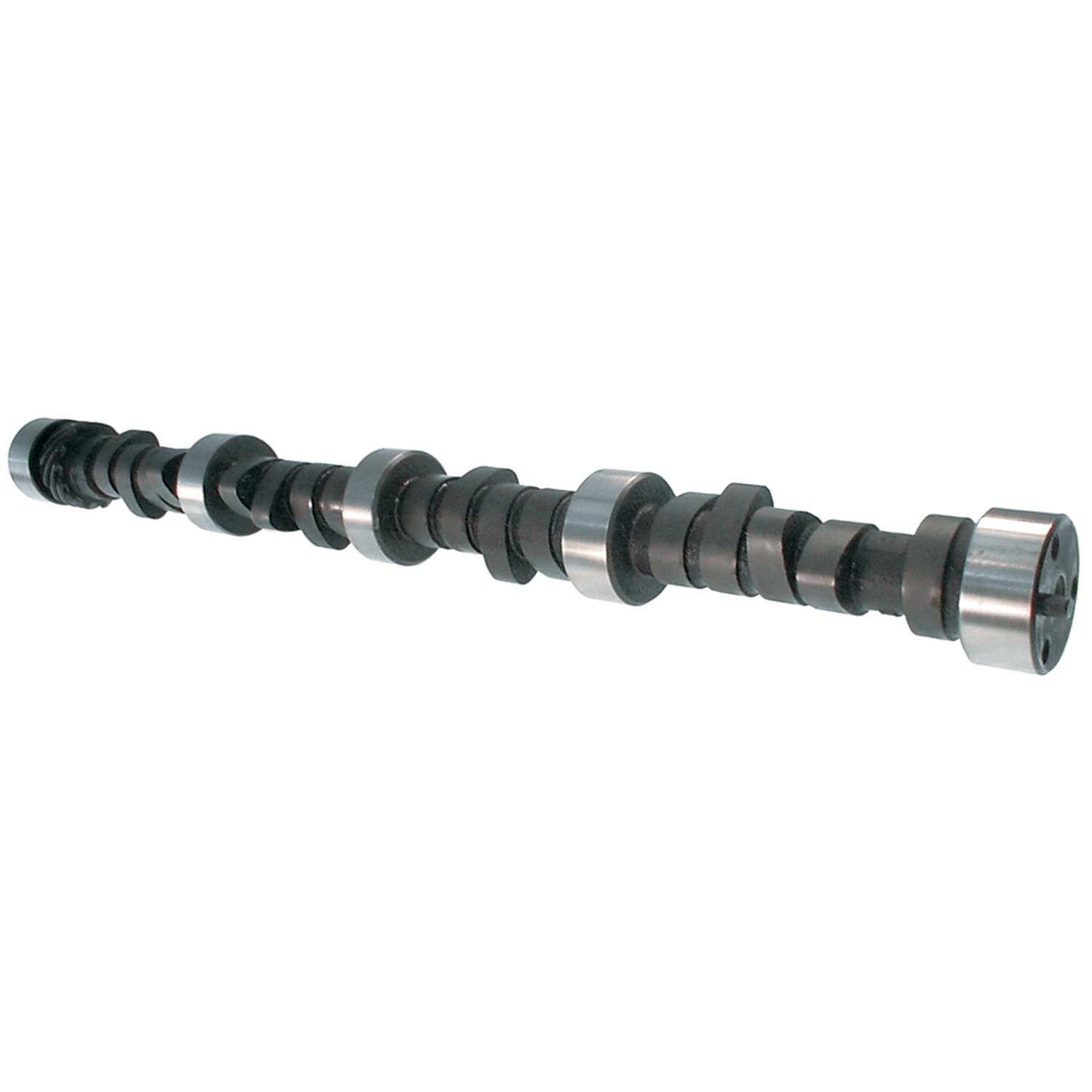

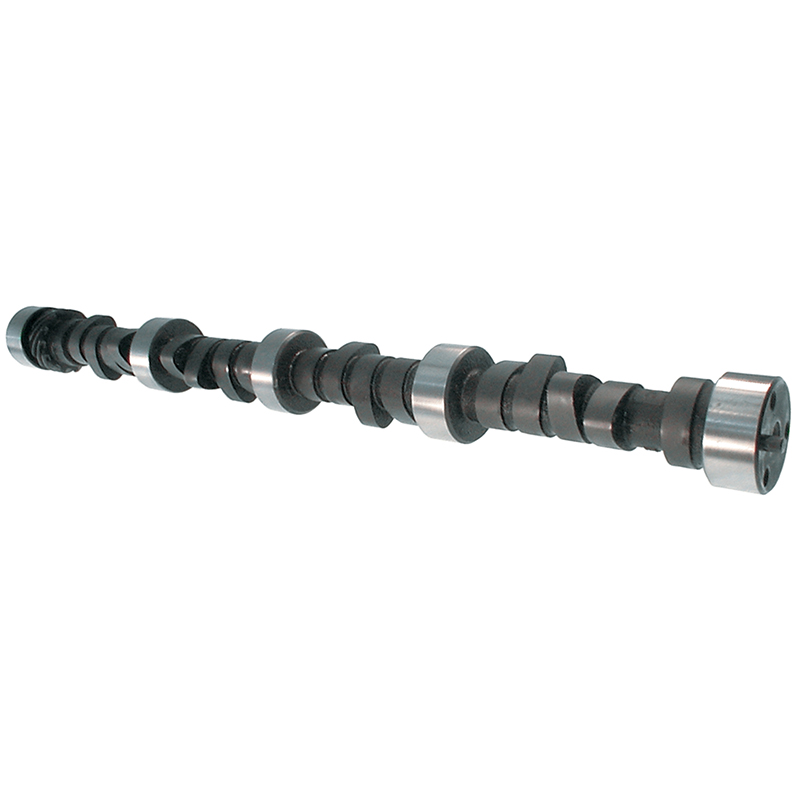

Howards Cams Oval Track Lift Rule Mechanical Flat Tappet Camshaft
From the humble beginnings to an industry leader today, Howards Cams has not forgotten the customer. Howards Cams main objective is to produce the highest quality product at a reasonable price. The name Howards Cams has been synonymous with high performance camshafts since 1945. A great number of valve train innovations can be traced back to Howards Cams. From pioneers in drag racing and oval track cams to cutting edge marine development, Howards Cams is at the forefront of the camshaft industry.
Note: Always use Camshaft Break-In Lube with all new flat tappet cams.
Manufactured on Dedicated High Precision Machines
Held to Strict Tolerances
High grade quality cores
Rockwell Tested & Parkerized Ensuring the Highest Quality
Hard protective packaging
Part Type: Camshaft
Application: Chevrolet Small Block V8 262-267-302-305-307-327-350-400, '55-'98
Ignition Firing Order: OE (1-8-4-3-6-5-7-2)
Cam Style: Mechanical Flat Tappet
Basic RPM Range: 3000-7000
Manufacturers Description: Oval Track, .500" Lift Rule, fast banked 1/4 to 3/8 mile.
Intake Duration @ .050": 256
Exhaust Duration @ .050": 266
Advertised Intake Duration (@ .020"): 284
Advertised Exhaust Duration (@ .020"): 294
Intake Valve Lift with OE Rocker Ratio (1.50): .515"
Exhaust Valve Lift with OE Rocker Ratio (1.50): .515"
Intake Lobe Lift: .343"
Exhaust Lobe Lift: .343"
Intake Valve Lift with 1.55 Rocker Ratio: .532"
Intake Valve Lift with 1.60 Rocker Ratio: .549"
Intake Valve Lift with 1.65 Rocker Ratio: .566"
Exhaust Valve Lift with 1.55 Rocker Ratio: .532"
Exhaust Valve Lift with 1.60 Rocker Ratio: .549"
Exhaust Valve Lift with 1.65 Rocker Ratio: .566"
Lobe Separation Angle: 106 Degrees
Intake Centerline: 102 Degrees
Small Base Circle: No
Cam Gear Attachment: 3-Bolt
Valve Adjustment Intake: .016"
Valve Adjustment Exhaust: .016"
Manufacturer: Howards Cams & Racing Components
Manufacturer's Part Number: 110792-06
Weight: 10.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Oil with ZDDP or ZDDP Additive Required.
Note: Stock (O.E.) valve springs cannot be used.
Note: Provisions for increased oiling recommended.
|
|
|
