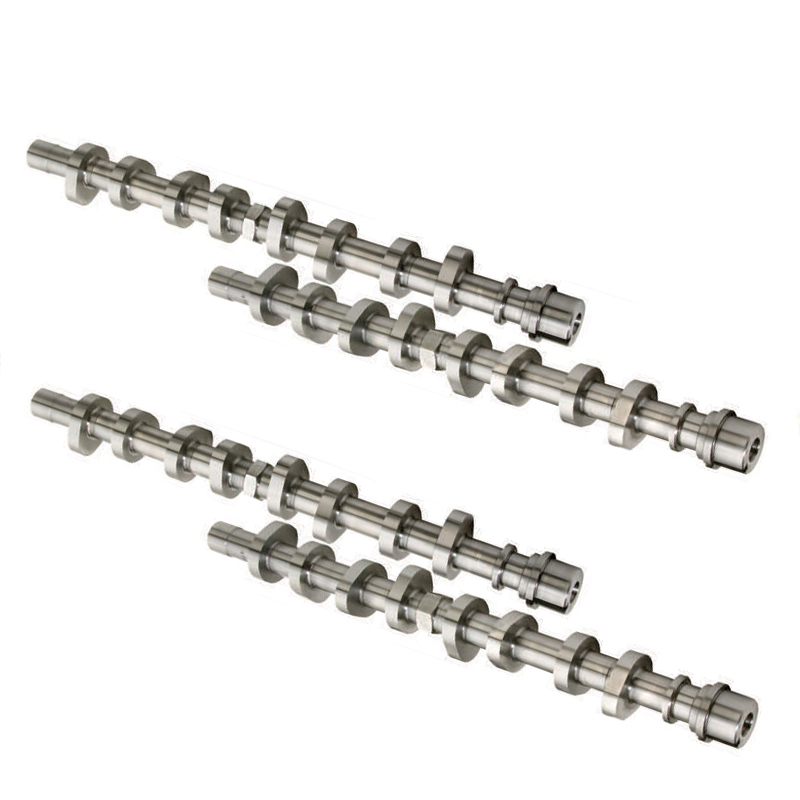

Howards Cams Hydraulic Roller Camshaft
All Howards™ cams are ground at Howards Cams™, not re-boxed like some cam companies. All Howards™ cams use the highest-grade race quality cores available. Howards™ cams are manufactured on dedicated high precision cam grinding machines. Most Howards™ cams are packaged and shipped in our unique, hard, high impact plastic reusable cases. This ensures that the high quality camshaft that went into the case comes out in the same condition, when delivered, as when it was packed.
Part Type: Camshaft
Application: Ford Modular V8 4.6L DOHO 4-Valve '93-Present
Ignition Firing Order: OE (1-3-7-2-6-5-4-8)
Cam Style: Hydraulic Roller Camshaft
Basic RPM Range: 1200-6600
Manufacturers Description: Mild idle, street performance, excellent low to mid range torque.
Intake Duration @ .050": 222
Exhaust Duration @ .050": 222
Advertised Intake Duration (@ .050"): 259
Advertised Exhaust Duration (@ .050"): 259
Intake Valve Lift with OE Rocker Ratio (1.825): .450"
Exhaust Valve Lift with OE Rocker Ratio (1.825): .450"
Intake Lobe Lift: .246"
Exhaust Lobe Lift: .246"
Lobe Separation Angle: 114 Degrees
Intake Centerline: 112 Degrees
Small Base Circle: No
Lifters Included: No
Cam Gear Attachment: Single-Bolt
Valve Adjustment: Zero Lash Plus ˝ Turn
Manufacturer: Howards Cams & Racing Components
Manufacturer's Part Number: 276584-14
Weight: 14.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Stock (O.E.) valve springs cannot be used.
Note: Includes 4 camshafts.
Note: Requires custom programmer/tuning.
|
