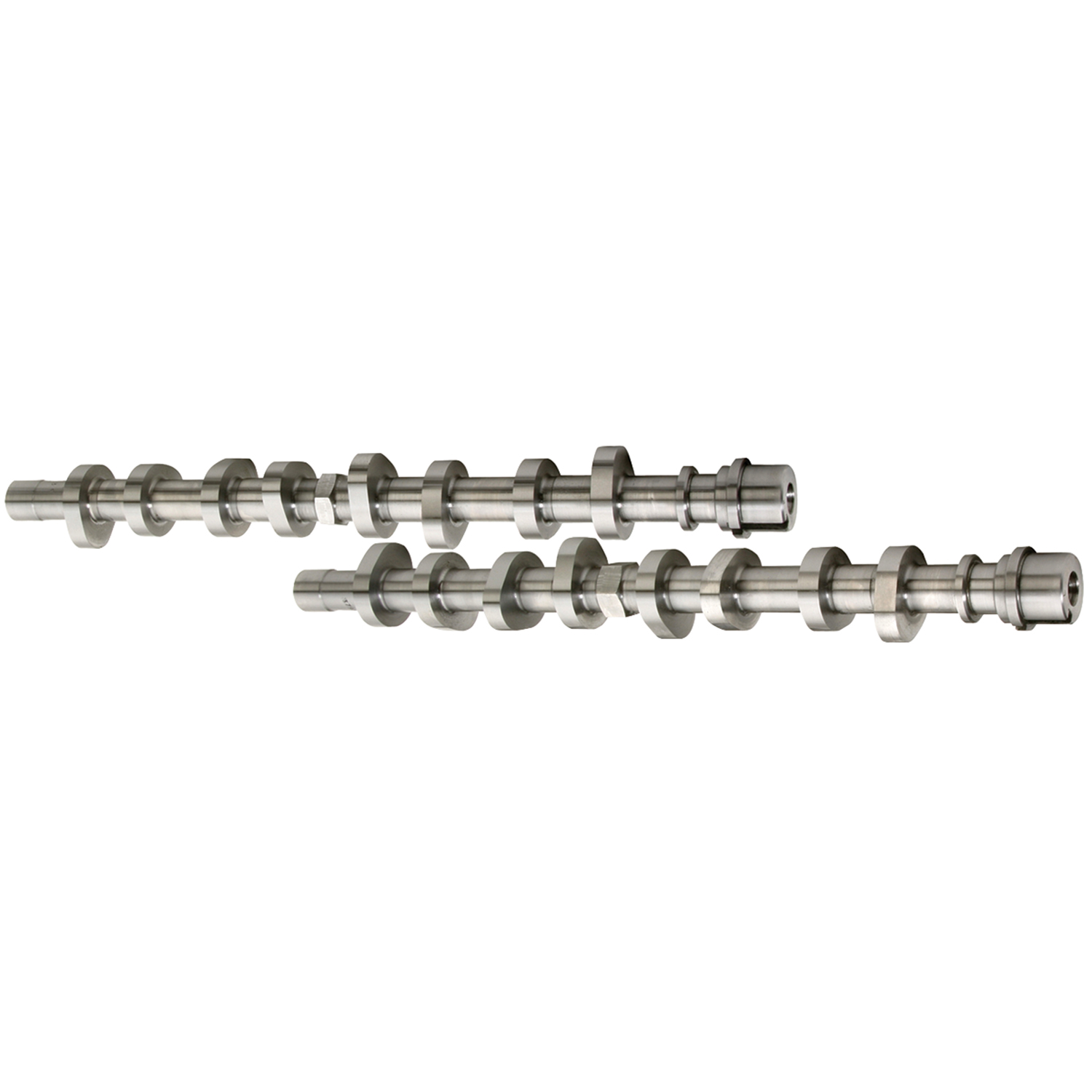

Howards Cams Hydraulic Roller Camshaft
All Howards™ cams are ground at Howards Cams™, not re-boxed like some cam companies. All Howards™ cams use the highest-grade race quality cores available. Howards™ cams are manufactured on dedicated high precision cam grinding machines. Most Howards™ cams are packaged and shipped in our unique, hard, high impact plastic reusable cases. This ensures that the high quality camshaft that went into the case comes out in the same condition, when delivered, as when it was packed.
Part Type: Camshaft
Application: Ford Mod V8 4.6L-5.4L SOHC 2-Valve '91-'05
Ignition Firing Order: OE (1-3-7-2-6-5-4-8)
Cam Style: Hydraulic Roller Camshaft
Basic RPM Range: 1800-6600
Manufacturers Description: Nice idle, Hot Street, nice increase in mid range performance. Needs 2000+ stall & gears.
Intake Duration @ .050": 234
Exhaust Duration @ .050": 236
Advertised Intake Duration (@ .050"): 275
Advertised Exhaust Duration (@ .050"): 278
Intake Valve Lift with OE Rocker Ratio (1.825): .593"
Exhaust Valve Lift with OE Rocker Ratio (1.825): .593"
Intake Lobe Lift: .325"
Exhaust Lobe Lift: .325"
Lobe Separation Angle: 114 Degrees
Intake Centerline: 110 Degrees
Small Base Circle: No
Lifters Included: No
Cam Gear Attachment: Single-Bolt
Valve Adjustment: Zero Lash Plus ˝ Turn
Manufacturer: Howards Cams & Racing Components
Manufacturer's Part Number: 276623-14
Weight: 14.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Stock (O.E.) valve springs cannot be used.
Note: Includes 2 camshafts.
Note: Requires custom programmer/tuning.
|
