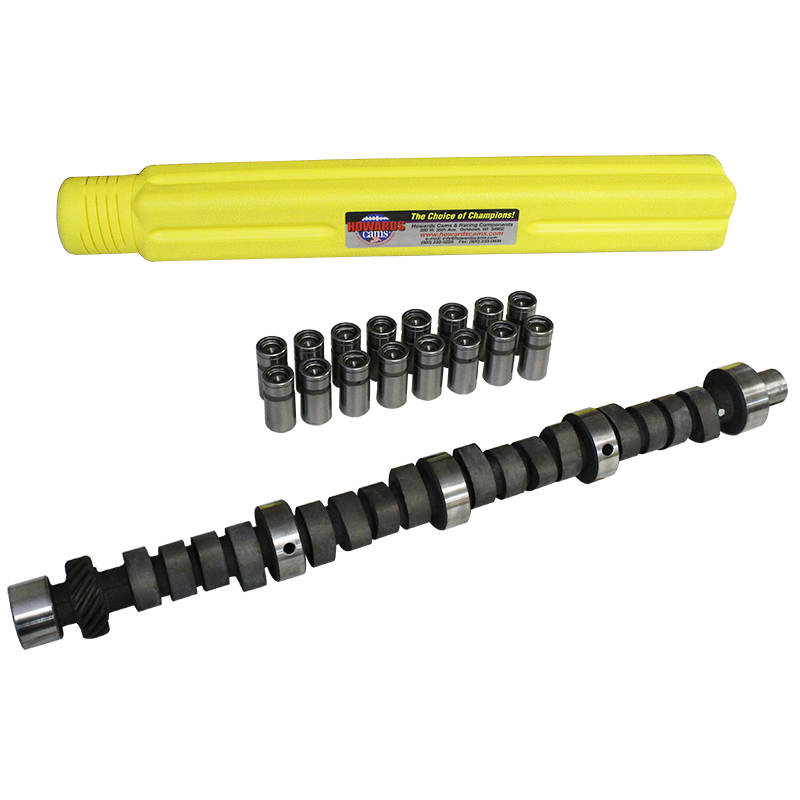

Howards Cams Hydraulic Flat Tappet Cam & Lifter Set
Howards Cams most popular computer designed performance hydraulic flat tappet cams are available as cam and lifter sets. These sets offer sizable torque, horsepower, and rpm increases at an affordable price. Each set includes a hydraulic flat tappet performance cam and a set of premium hydraulic lifters.
Manufactured on Dedicated High Precision Machines
Held to Strict Tolerances
High grade quality cores
Rockwell Tested & Parkerized Ensuring the Highest Quality
Includes Matching Premium Lifters
Part Type: Camshaft & Lifter Set
Application: Chrysler Small Block LA V8 273-340-360 '64-'03, 318 '67-'91
Ignition Firing Order: OE (1-8-4-3-6-5-7-2)
Cam Style: Hydraulic Flat Tappet
Basic RPM Range: 1400-4800
Manufacturers Description: Smooth idle, very strong torque. Best in 273-318.
Intake Duration @ .050": 208
Exhaust Duration @ .050": 214
Advertised Intake Duration (@ .006"): 255
Advertised Exhaust Duration (@ .006"): 261
Intake Valve Lift with OE Rocker Ratio (1.50): .479"
Exhaust Valve Lift with OE Rocker Ratio (1.50): .494"
Intake Lobe Lift: .319"
Exhaust Lobe Lift: .329"
Intake Valve Lift with 1.55 Rocker Ratio: .495"
Intake Valve Lift with 1.60 Rocker Ratio: .511"
Intake Valve Lift with 1.65 Rocker Ratio: .527"
Exhaust Valve Lift with 1.55 Rocker Ratio: .510"
Exhaust Valve Lift with 1.60 Rocker Ratio: .527"
Exhaust Valve Lift with 1.65 Rocker Ratio: .543"
Lobe Separation Angle: 110 Degrees
Intake Centerline: 106 Degrees
Lifters Included: Yes, 91711, Performance Hydraulic Flat Tappet
Small Base Circle: No
Cam Gear Attachment: Single-Bolt
Valve Adjustment: Zero Lash Plus 1/2 Turn
Manufacturer: Howards Cams & Racing Components
Manufacturer's Part Number: CL711381-10
Weight: 10.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Oil with ZDDP or ZDDP Additive Required
Note: Stock (O.E.) valve springs cannot be used.
Note: Lobes designed to take maximum advantage of .904" lifter dia.
|
