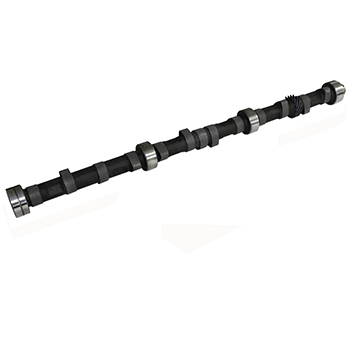

Howards Cams Hydraulic Flat Tappet Camshaft
All Howards™ cams use the highest-grade quality cores available. Computer designed with knowledge of over 65 years of performance and racing camshaft manufacturing. Howards™ cams are manufactured on dedicated high precision cam grinding machines. Rockwell checked and Parkerized to ensure the highest quality control standards available anywhere. Packaged and shipped in a unique hard, high impact plastic reusable case. This ensures that the high quality camshaft that went into the case comes out in the same condition, when delivered, as when it was packed.
Manufactured on Dedicated High Precision Machines
Held to Strict Tolerances
High grade quality cores
Rockwell Tested & Parkerized Ensuring the Highest Quality
Part Type: Camshaft
Application: Ford Straight 6 240-300 1964-1996 (10.0” Deck)
Ignition Firing Order: OE (1-3-7-2-6-5-4-8)
Cam Style: Hydraulic Flat Tappet
Basic RPM Range: 1200-4800
Manufacturers Description: Good idle, street, off-road, towing. Good torque.
Intake Duration @ .050": 209
Exhaust Duration @ .050": 209
Advertised Intake Duration (@ .006"): 263
Advertised Exhaust Duration (@ .006"): 263
Intake Valve Lift with OE Rocker Ratio (1.60): .448"
Exhaust Valve Lift with OE Rocker Ratio (1.60): .448"
Intake Lobe Lift: .280"
Exhaust Lobe Lift: .280"
Intake Valve Lift with 1.65 Rocker Ratio: .462"
Intake Valve Lift with 1.70 Rocker Ratio: .476"
Intake Valve Lift with 1.72 Rocker Ratio: .482"
Exhaust Valve Lift with 1.65 Rocker Ratio: .462"
Exhaust Valve Lift with 1.70 Rocker Ratio: .476"
Exhaust Valve Lift with 1.72 Rocker Ratio: .482"
Lobe Separation Angle: 108 Degrees
Intake Centerline: 104 Degrees
Small Base Circle: No
Lifters Included: No
Cam Gear Attachment: Single-Bolt
Valve Adjustment: Zero Lash Plus ˝ Turn
Manufacturer: Howards Cams & Racing Components
Manufacturer's Part Number: 280026-08
Weight: 14.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Oil with ZDDP or ZDDP Additive Required.
|
