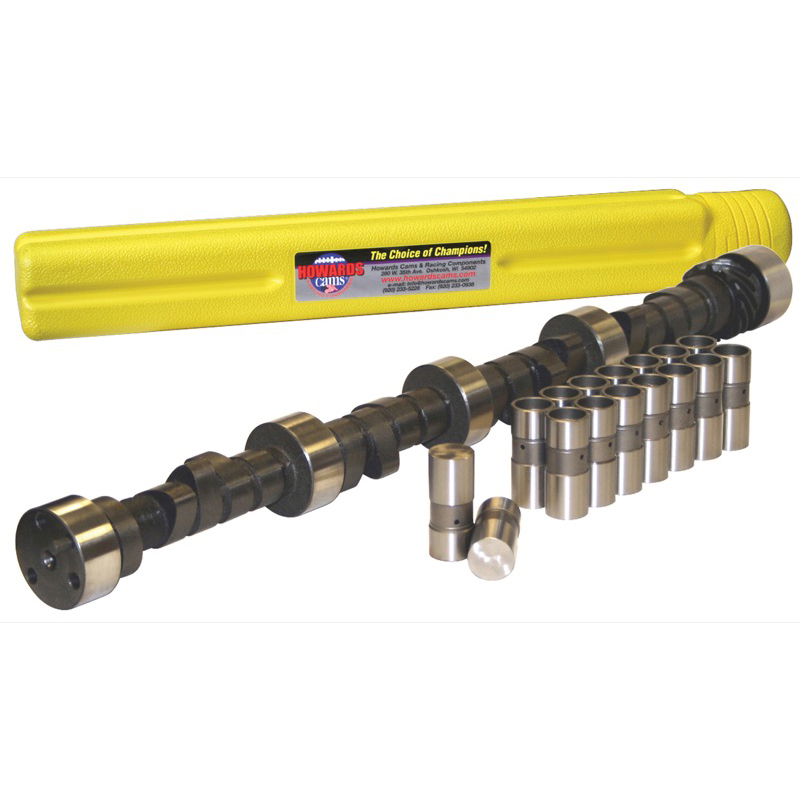

Howards Cams 4/7 Swap Mechanical Flat Tappet Camshaft & Lifter Set
By switching the firing order (1-8-7-3-6-5-4-2) on your favorite Chev V8, you will discover a broader, smoother torque curve and decrease in crankshaft deflection. More aggressive profiles can be used to get the most managable horsepower available. These cams require no additional engine modifications, other than swapping the #4 ignition wire with #7.
Manufactured on Dedicated High Precision Machines
Held to Strict Tolerances
High grade quality cores
Rockwell Tested & Parkerized Ensuring the Highest Quality
Includes Matching Premium Lifters
Part Type: Camshaft and Lifter Set
Application: Chevrolet Small Block 262-400 1955-1998
Ignition Firing Order: OE (1-8-7-3-6-5-4-2)
Cam Style: Mechanical Flat Tappet
Basic RPM Range: 3200-7200
Manufacturers Description: Small Base Circle, Rough idle, Drag race. Higher CR, stall speed & lower gears.
Intake Duration @ .050": 268
Exhaust Duration @ .050": 274
Advertised Intake Duration (@ .006"): 303
Advertised Exhaust Duration (@ .006"): 309
Intake Valve Lift with OE Rocker Ratio (1.50): .550"
Exhaust Valve Lift with OE Rocker Ratio (1.50): .535"
Intake Lobe Lift: .366"
Exhaust Lobe Lift: .356"
Intake Valve Lift with 1.55 Rocker Ratio: .568"
Intake Valve Lift with 1.60 Rocker Ratio: .587"
Intake Valve Lift with 1.65 Rocker Ratio: .605"
Exhaust Valve Lift with 1.55 Rocker Ratio: .553"
Exhaust Valve Lift with 1.60 Rocker Ratio: .571"
Exhaust Valve Lift with 1.65 Rocker Ratio: .588"
Lobe Separation Angle: 106 Degrees
Intake Centerline: 102 Degrees
Lifters Included: Yes, 91115 Mechanical Flat Tappet
Small Base Circle: Yes
Cam Gear Attachment: 3-Bolt
Valve Adjustment: .022/.022
Manufacturer: Howards Cams & Racing Components
Manufacturer's Part Number: CL114542-06S
Weight: 10.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Oil with ZDDP or ZDDP Additive Required
Note: Stock (O.E.) valve springs cannot be used.
|
