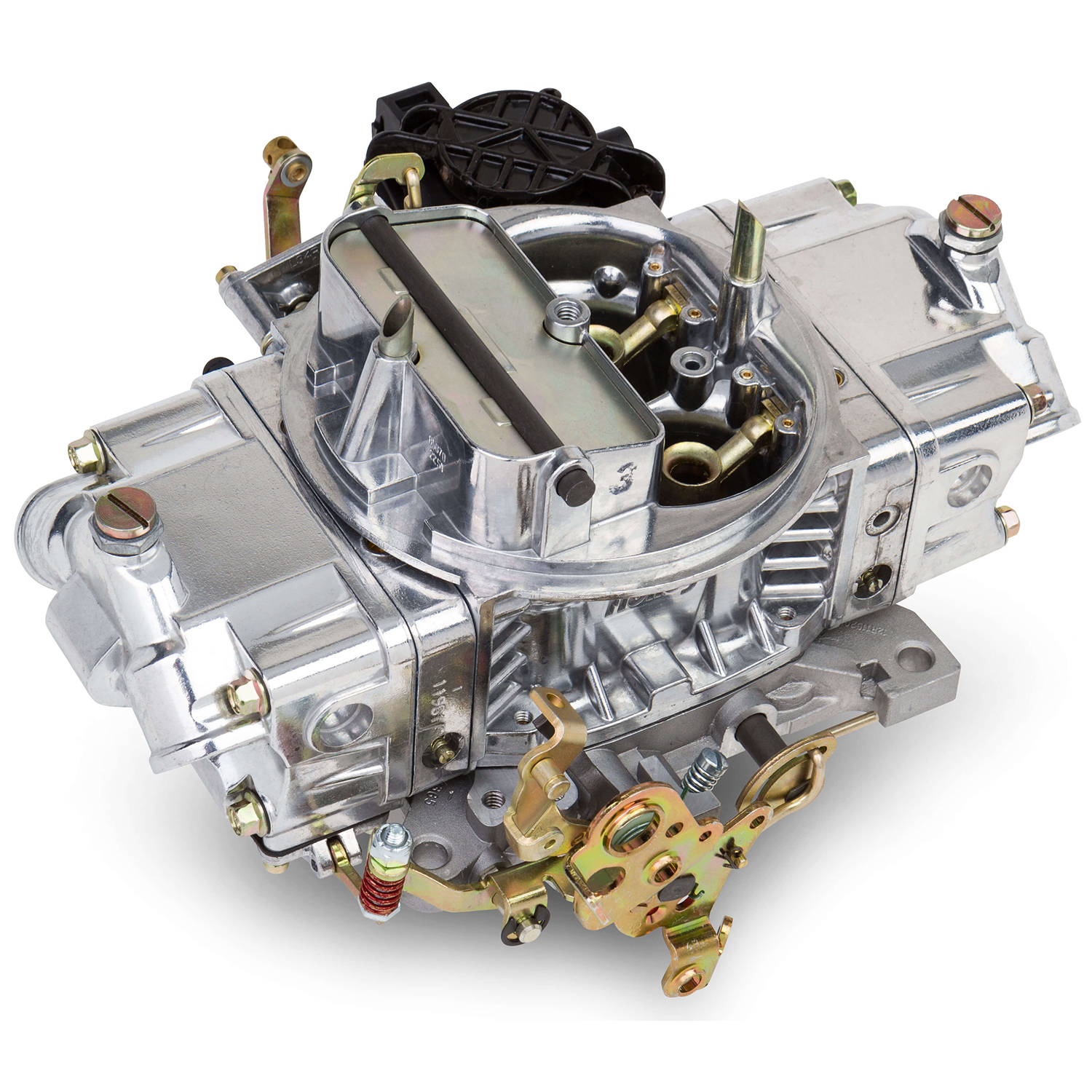

Holley Street Avenger Carburetor, 770 cfm, Electric Choke |
|
 |
Holley Street Avenger Carburetor
Designed specifically for the street enthusiast. Tunable to provide the ultimate in performance. Street Avenger carburetors include quick change adjustable vacuum secondary (tunable from mild to wild), Gen IV "No Trouble" power valve, clear sight plugs for easy float adjustment, built-in fuel inlet filters, electric choke and four vacuum ports. Street ready right out of the box.
Part Type: Carburetor
Model: 4150-Series
Application: Street
Fuel Type: Gasoline
Number of Barrels: 4
CFM: 770
Choke Type: Factory Pre-Set "No Trouble" Electric
Fuel Inlet: Dual
Fuel Inlet Fitting Size: 7/8"-20 to 5/8"-18 Inverted Flare
Secondary Type: No Trouble Quick Change Vacuum Secondary
Throttle Linkage Type: Universal
Ford Auto Trans Kickdown: Yes
Main Body: Polished Aluminum
Booster Type: Down-Leg
Screw-In Air Bleeds: No
Metering: 2 Circuit
Idle Circuit: 4 Corner
Primary Venturii Diameter: 1.375"
Secondary Venturii Diameter: 1.375"
Throttle Plate: Steel
Throttle Plate Pattern: 5.16" x 5.62"
Primary Throttle Bore Diameter: 1.6875"
Secondary Throttle Bore Diameter: 1.6875"
Primary Metering Block: Aluminum
Secondary Metering Block: Aluminum
Primary Fuel Bowl: Center Hung Float, Aluminum
Secondary Fuel Bowl: Center Hung Float, Aluminum
Externally Adjustable Floats: Yes
Fuel Bowl Sight Windows: Yes
Primary Accelerator Pump: 30cc
Secondary Accelerator Pump: None
Primary Main Jets: 72
Secondary Main Jets: 75
Jet Extensions: No
Quick Change Jet Ports: No
Primary Power Valve: 6.5
Secondary Power Valve: NA
Power Valve Channel Restrictions (PVCR): No
Primary Pump Nozzle Size: .025"
Secondary Pump Nozzle Size: NA
Secondary Spring Color: Black
Finish: Polished Aluminum
Vacuum Port - Timed (Spark): 1
Vacuum Port - Full Vacuum: 2
PCV Port: 1
Manufacturer: Holley
Manufacturer's Part Number: 0-83770
Weight: 10.2 lbs.
Warranty: Holley Performance Products warrants its new performance products to be free from defects in material and workmanship for a period of 90 days from date of purchase. Holleys Limited Warranty specifically does not apply to products which have been (a) modified or altered in any way; (b) subjected to adverse conditions such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion or faulty repair; or (c) used in other than those applications recommended by Holley Performance Products. Holley also does not warrant, and disclaims all liability for products used in racing activities and/or applications other than those specifically recommended in the current Holley catalog. This Limited Warranty is extended to the original consumer only. This Limited Warranty is not assignable or otherwise transferable. There are no warranties which extend beyond those stated herein. Holley offers no other warranties, express or implied beyond this Limited Warranty. In the event of an alleged defect in material or workmanship, Holley's responsibility is strictly limited to repair or replace the defective product. Holley has no other obligation express or implied. Final warranty determination will be in the sole discretion of Holley. Holley shall not be responsible for (a) actual or alleged labor, transportation or other incidental charges; or (b) actual or alleged consequential or other damages incurred by use of product of Holley Performance Products.
Quantity: Sold as Each
Note: Does not work with A.O.D. transmissions.
|
|
