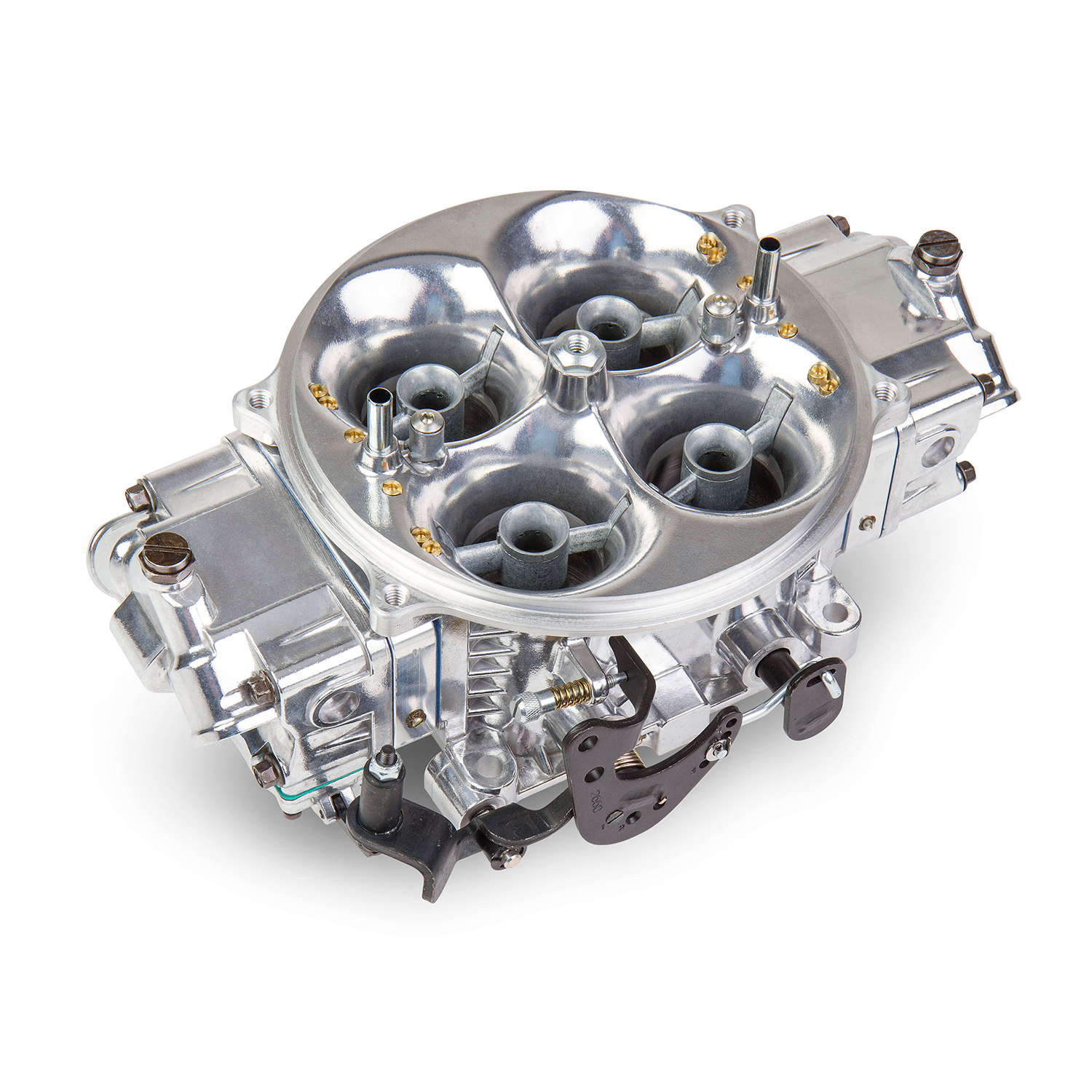

Holley Sportsman Series Dominator Carburetors
Holley engineers have taken the state-of-the-art Gen 3 Ultra carburetors and created a budget friendly version that is perfect for street/strip applications as well as all out bracket or sportsman drag cars. The new Holley SP Dominator carburetors feature the patent pending Gen 3 main body which is 5/16" taller than the previous generation. This new height allowed for larger radius air entries to deliver smoother flow that equates to improved throttle response and consistency. An extended air cleaner flange is incorporated for easy air scoop attachment when using the available air scoop adapter. Other features include all aluminum construction, tunable billet metering blocks, throttle position sensor mounting points, and knurled (hand adjustable) curb idle screws. Each calibration has been dyno and track tested to deliver proven performance.
- All aluminum construction saves 3.8lbs. over original models (28% weight savings)
- Shiny with billet aluminum metering block and black hardware
- Designed for use on Drag race, Pro Street, or any high horsepower engines
- Calibrations optimized for today's race engines and new fuels
- Fully machined from venturi throat to throttle bore for predictable & repeatable performance

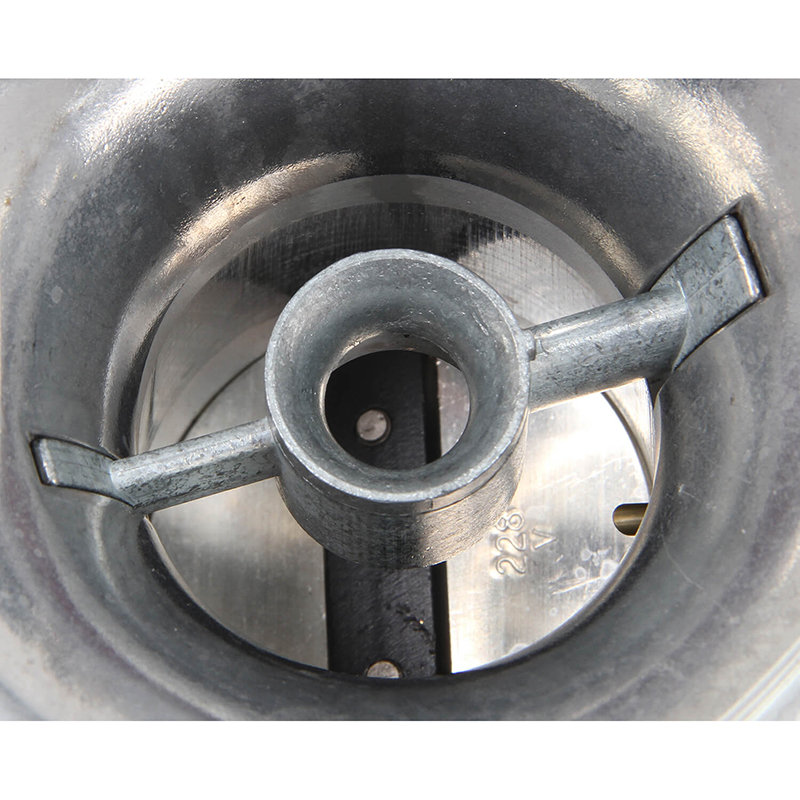

- Annular boosters deliver excellent signal and throttle response

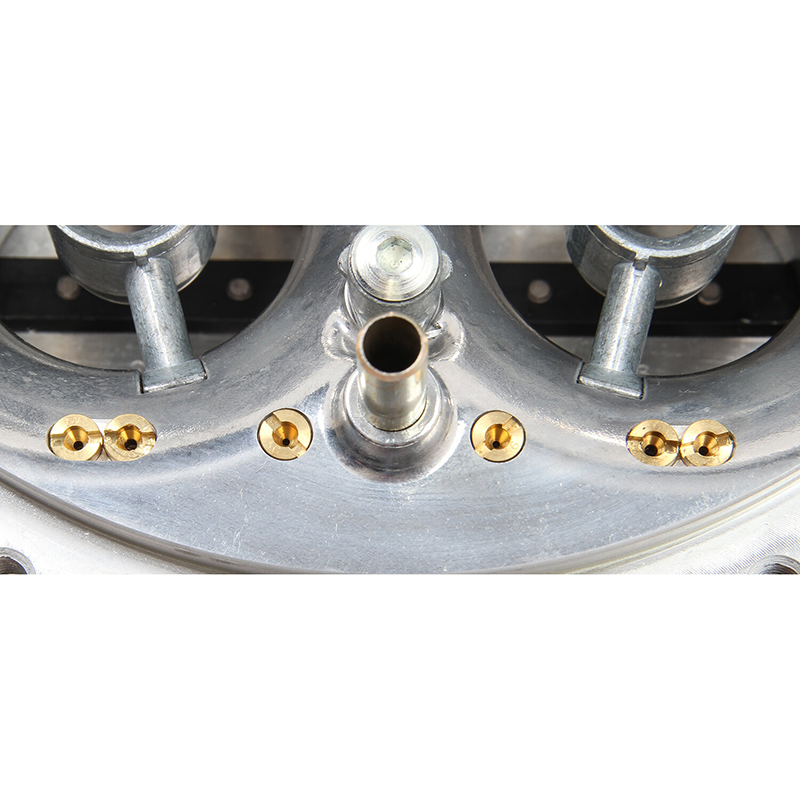

- Screw in air bleeds offer precise tuning capabilities

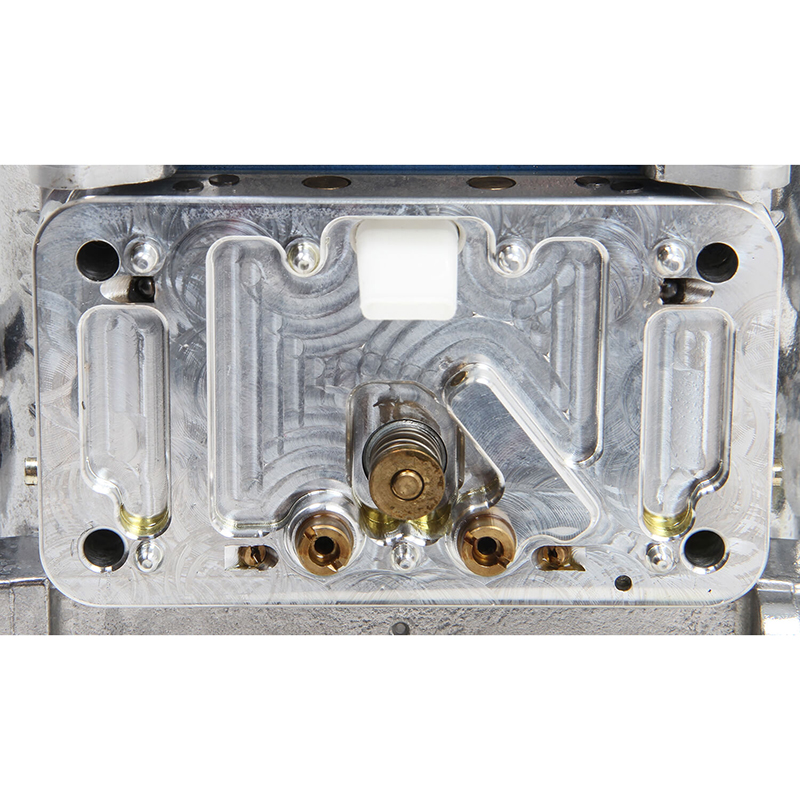

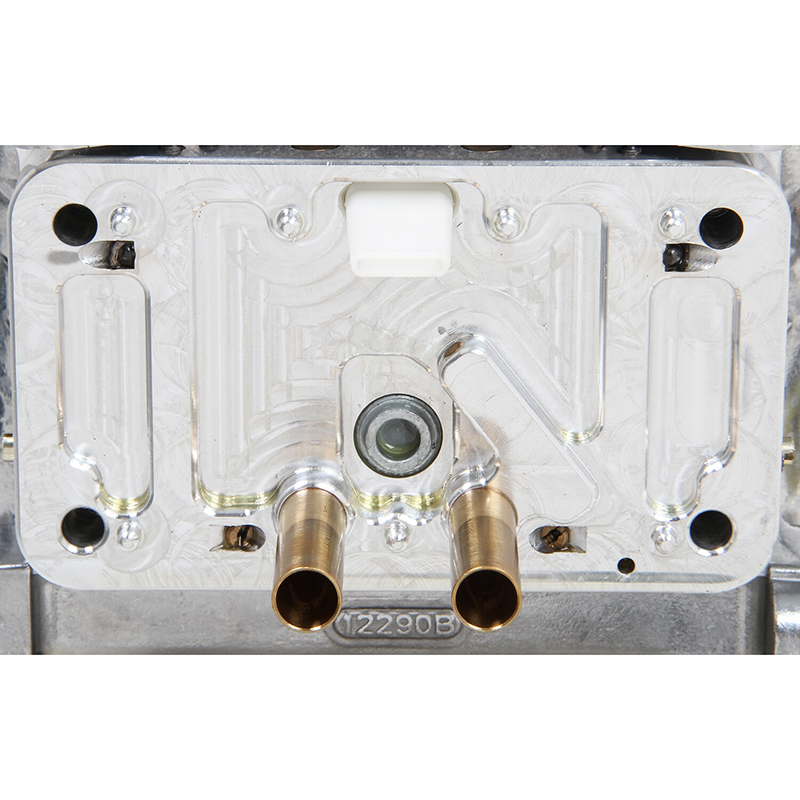

- Metering blocks feature improved durability, true gasket sealing and adjustability (power valve channel restrictors, intermediate restrictors & idle fee restrictors)
- Dual 50cc accelerator pumps provide the perfect amount of fuel from idle to full throttle
- 4 corner idle allows you to precisely control your idle system
- Clear sight windows on fuel inlet side of bowls for easy and safe fuel level adjustments

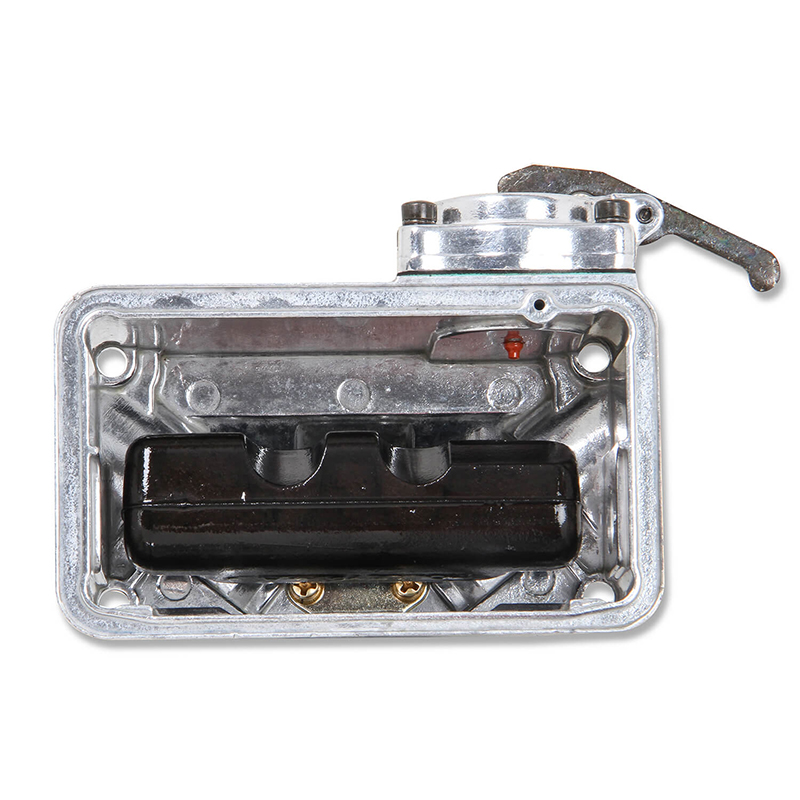

- Notched float and jet extension are factory installed

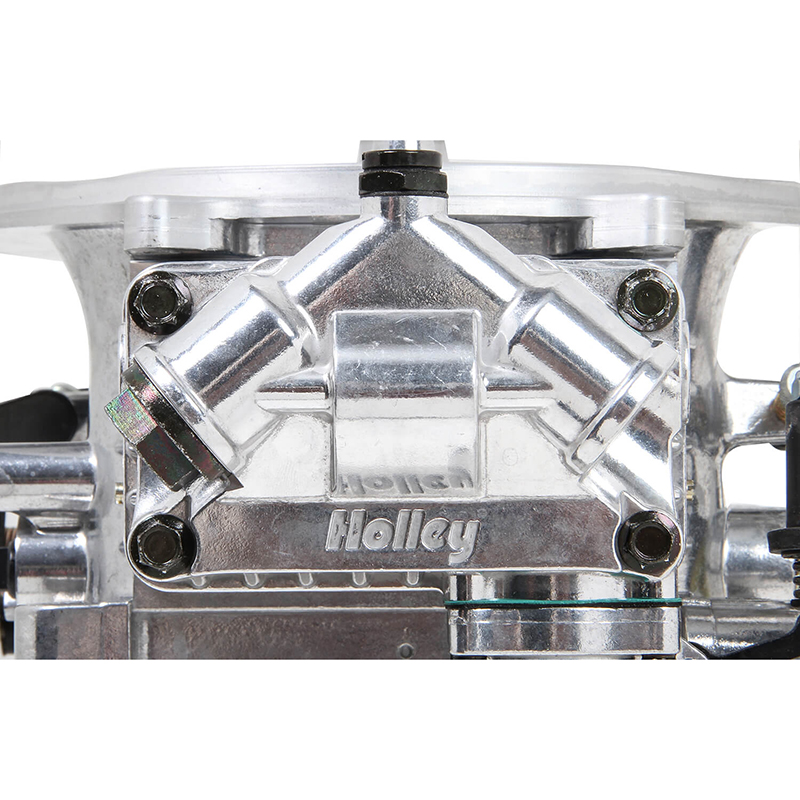

- 5/8-18 inlet threads offer a large variety of plumbing options (uses standard 4500 fuel inlet spacing)
- Factory ready TPS mounting points for use with data acquisition systems

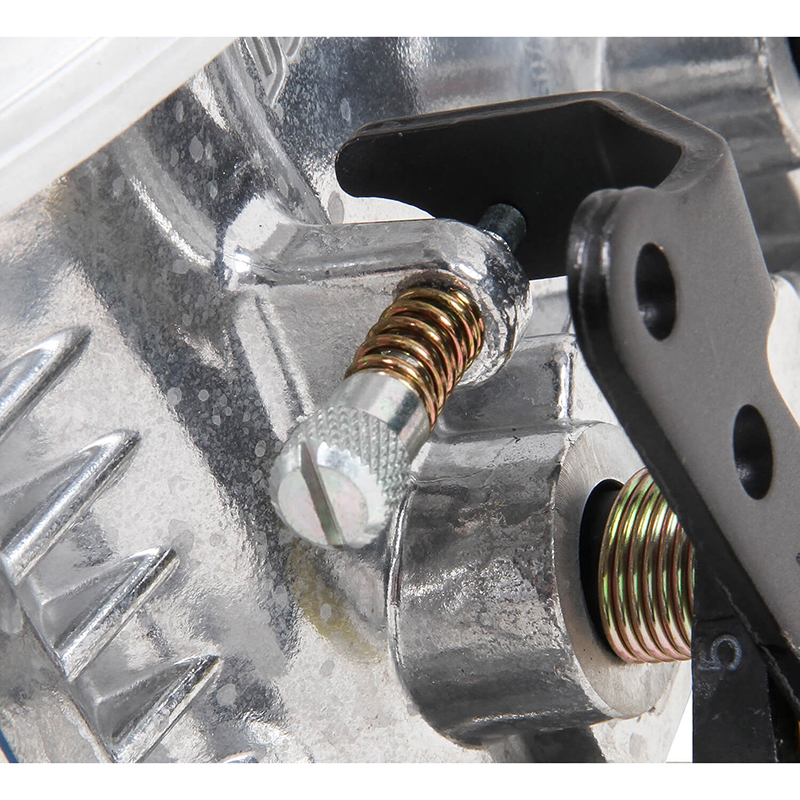

- Knurled (hand adjustable) primary and secondary curb idle screws allow for easy idle adjustment without the use of tools
- Contoured hex head squirter screws for streamlined airflow

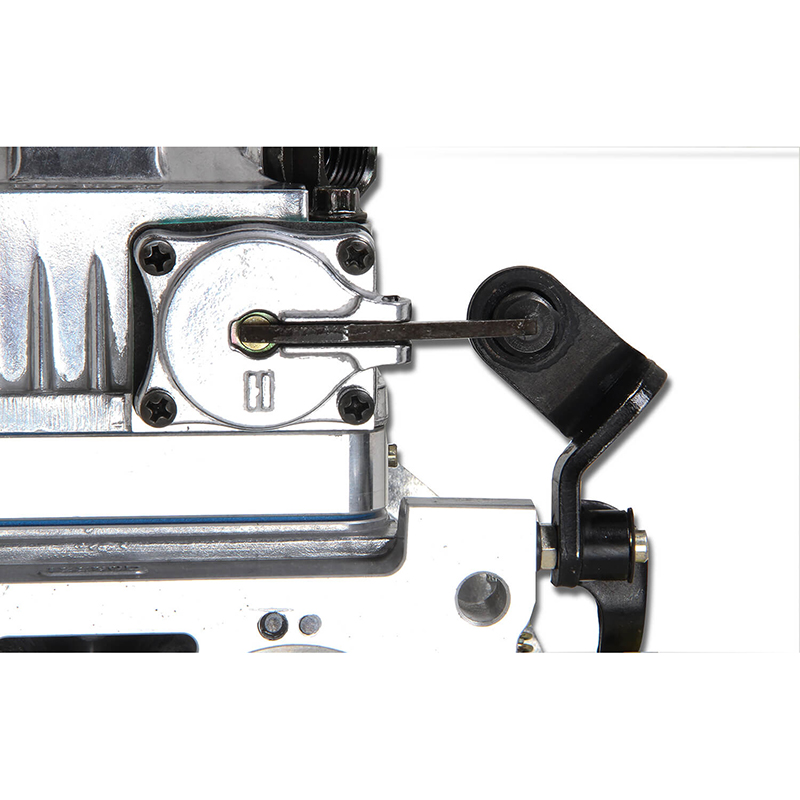

- Progressive secondary link installed for perfect off the line launches. No linkage parts under the carburetor (1:1 wire link included in kit)
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run
- Compatible with Gen 3 Dominator 4-hole billet spacer
Part Type: Carburetor
Model: 4500 Sportsman Series
Fuel Type: Gasoline
Application: Drag/Street
Number of Barrels: 4
CFM: 1050
Choke Type: None
Fuel Inlet: Dual
Fuel Inlet Fitting Size: 5/8"-18
Secondary Type: Mechanical
Throttle Linkage Type: Universal
Ford Auto Trans Kickdown: No
Main Body: Aluminum
Booster Type: Annular
Screw-In Air Bleeds:
Metering: 2 Circuit
Primary Venturi Diameter: 1.690"
Primary Throttle Bore Diameter: 2.000"
Primary Metering Block: Billet Aluminum
Secondary Metering Block: Yes
Primary Fuel Bowl:
Secondary Fuel Bowl:
Externally Adjustable Floats:
Fuel Bowl Sight Windows: Yes
Primary Accelerator Pump: 50cc
Secondary Accelerator Pump: 50cc
Jet Extensions:
Quick Change Jet Ports:
Power Valve Channel Restrictions (PVCR):
Secondary Spring Color: N/A
Finish: Dichromate
Manufacturer: Holley
Manufacturer's Part Number: 0-80688
Weight:
Warranty: Holley Performance Products warrants its new performance products to be free from defects in material and workmanship for a period of 90 days from date of purchase. Holleys Limited Warranty specifically does not apply to products which have been (a) modified or altered in any way; (b) subjected to adverse conditions such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion or faulty repair; or (c) used in other than those applications recommended by Holley Performance Products. Holley also does not warrant, and disclaims all liability for products used in racing activities and/or applications other than those specifically recommended in the current Holley catalog. This Limited Warranty is extended to the original consumer only. This Limited Warranty is not assignable or otherwise transferable. There are no warranties which extend beyond those stated herein. Holley offers no other warranties, express or implied beyond this Limited Warranty. In the event of an alleged defect in material or workmanship, Holley's responsibility is strictly limited to repair or replace the defective product. Holley has no other obligation express or implied. Final warranty determination will be in the sole discretion of Holley. Holley shall not be responsible for (a) actual or alleged labor, transportation or other incidental charges; or (b) actual or alleged consequential or other damages incurred by use of product of Holley Performance Products.
Quantity: Sold as Each
|
