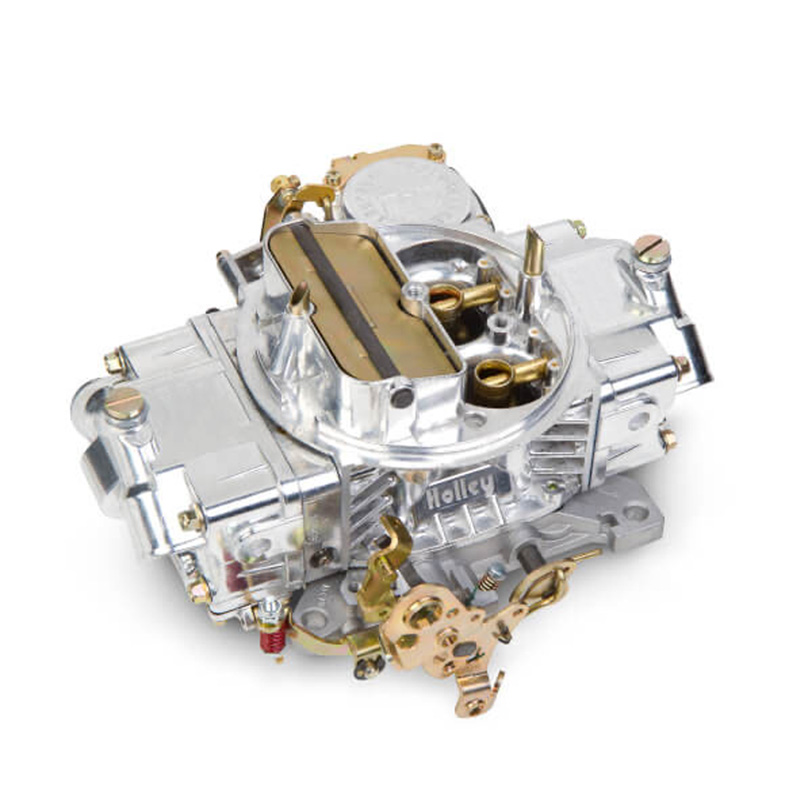

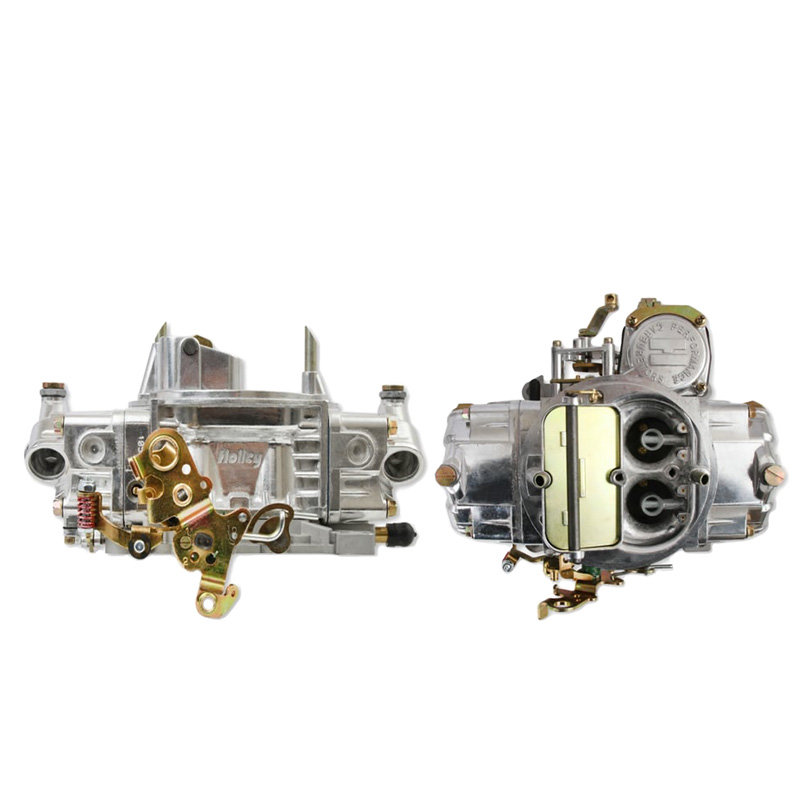

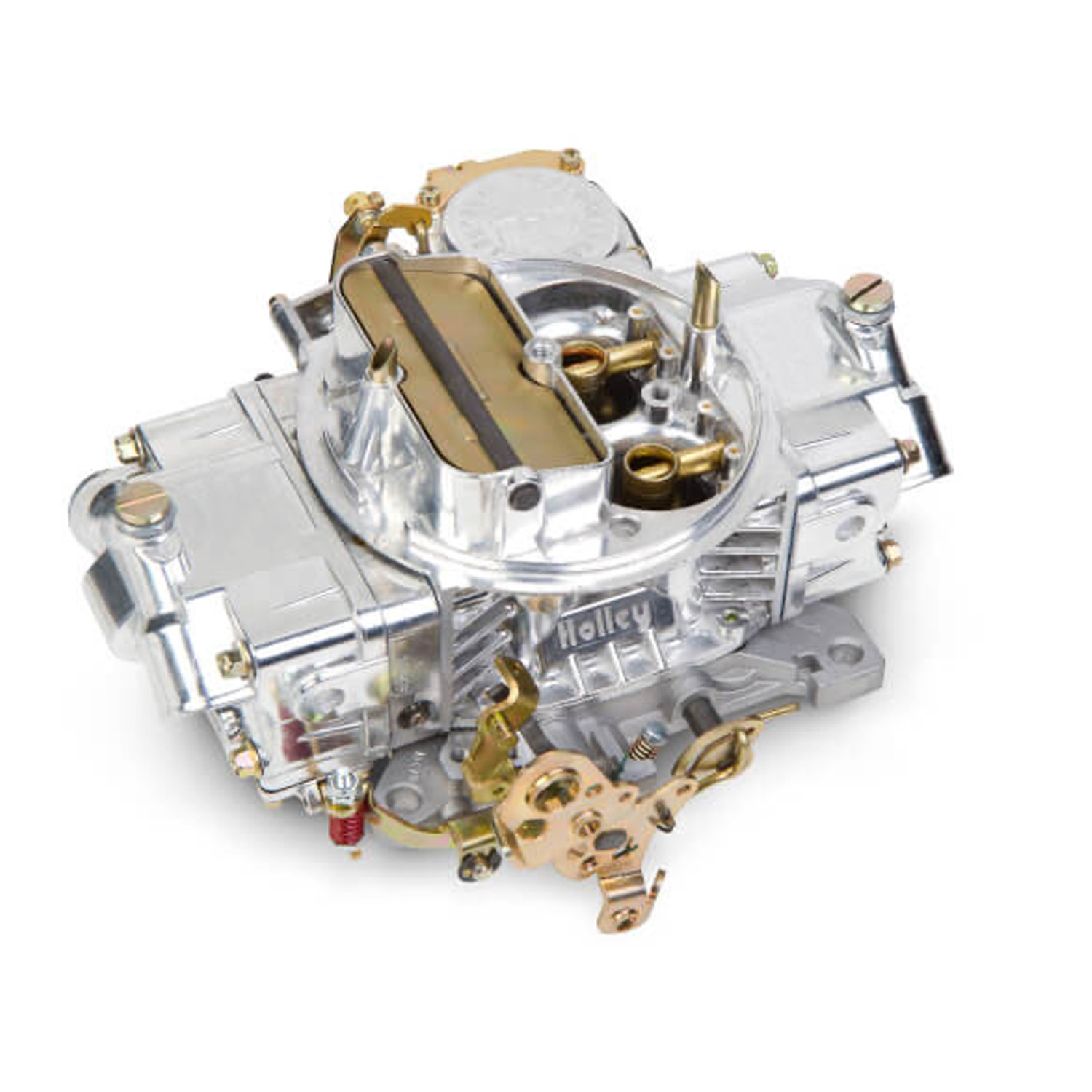

Holley 4160-Series Vacuum Secondary Carburetors
Holley's favorite traditional carburetors. All the features you expect, with a shiny finish.
- Vacuum secondaries allow use on wide range of vehicles
- Ford automatic kickdown linkage (does not work with A.O.D. transmissions)
- Universal calibration for easy bolt-on performance
- Clear fuel level sight glasses
- Adjustable needle & seats
- Dual inlet V-style bowls (center hung floats)
- 1 timed (spark), 1 full vacuum, and 1 PCV port
Part Type: Carburetor
Model: 4160-Series
Application: Street
Fuel Type: Gasoline
Number of Barrels: 4
CFM: 750
Choke Type: Manual
Fuel Inlet: Dual
Fuel Inlet Fitting Size: 7/8"-20 to 5/8"-18 Inverted Flare
Secondary Type: Vacuum Secondary
Throttle Linkage Type: Universal
Ford Auto Trans Kickdown: Yes
Main Body: Aluminum
Booster Type: Straight
Screw-In Air Bleeds: No
Metering: 2 Circuit
Idle Circuit: 2 Corner
Primary Venturii Diameter: 1.375"
Secondary Venturii Diameter: 1.4375"
Throttle Plate: Steel
Throttle Plate Pattern: 5.16" x 5.62"
Primary Throttle Bore Diameter: 1.6875"
Secondary Throttle Bore Diameter: 1.6875"
Primary Metering Block: NA
Secondary Metering Block: Metering Plate
Primary Fuel Bowl: Center Hung Float
Secondary Fuel Bowl: Center Hung Float
Externally Adjustable Floats: Yes
Fuel Bowl Sight Windows: Yes
Primary Accelerator Pump: 30cc
Secondary Accelerator Pump: None
Primary Main Jets: 70
Secondary Metering Plate: 21
Jet Extensions: No
Quick Change Jet Ports: No
Primary Power Valve: 6.5
Secondary Power Valve: NA
Power Valve Channel Restrictions (PVCR): No
Primary Pump Nozzle Size: .031"
Secondary Pump Nozzle Size: NA
Secondary Spring Color: Black
Finish: Shiny
Vacuum Port - Timed (Spark): 1
Vacuum Port - Full Vacuum: 1
PVC Port: 1
Manufacturer: Holley
Manufacturer's Part Number: 0-3310S
Weight: 8.9 lbs.
Warranty: Holley Performance Products warrants its new performance products to be free from defects in material and workmanship for a period of 90 days from date of purchase. Holleys Limited Warranty specifically does not apply to products which have been (a) modified or altered in any way; (b) subjected to adverse conditions such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion or faulty repair; or (c) used in other than those applications recommended by Holley Performance Products. Holley also does not warrant, and disclaims all liability for products used in racing activities and/or applications other than those specifically recommended in the current Holley catalog. This Limited Warranty is extended to the original consumer only. This Limited Warranty is not assignable or otherwise transferable. There are no warranties which extend beyond those stated herein. Holley offers no other warranties, express or implied beyond this Limited Warranty. In the event of an alleged defect in material or workmanship, Holley's responsibility is strictly limited to repair or replace the defective product. Holley has no other obligation express or implied. Final warranty determination will be in the sole discretion of Holley. Holley shall not be responsible for (a) actual or alleged labor, transportation or other incidental charges; or (b) actual or alleged consequential or other damages incurred by use of product of Holley Performance Products.
Quantity: Sold as Each
Note: Does not work with A.O.D. transmissions.
|
