Fuel Pump
The 12-920 universal in-line fuel pump is intended for Throttle Body EFI, Multipoint EFI and Forced Induction Multipoint EFI systems. It is designed to work in-line, not inside the tank, so installation is a snap. The 12-920 is rated for continuous duty service and have been tested up to 2,500 hours.
Features:
- Draws 5 amps at 15 psi
- Will feed up to 800 horsepower throttle body EFI units
- Will feed up to 700 horsepower multipoint units
- Will feed up to 600 horsepower forced induction multipoint units
- OE proven design
- Lightweight and compact
- Rubber isolator, mounting clamps and electrical hardware included
- 3/8" barbed fittings included
- Not designed for use on aircraft of any type.
Part Type: Fuel Pump
UPC: 090127480304
Fuel Pump Voltage: 12V
Fuel Pressure (psi): 60
Flow Rate: 80 gph/302 lph
Fuel Pump Type: Electric external
Inlet Quantity: 1
Outlet Quantity: 1
Inlet Attachment: Female Threads
Outlet Attachment: Female Threads
Sending Unit Included: No
Fuel Pressure Regulator Included: No
Fuel Pump Inlet Size: M10 x 1.0
Fuel Pump Outlet Size: M10 x 1.0
Gasket Included: No
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Wiring Harness Included: No
Pulley Included: No
Remanufactured: No

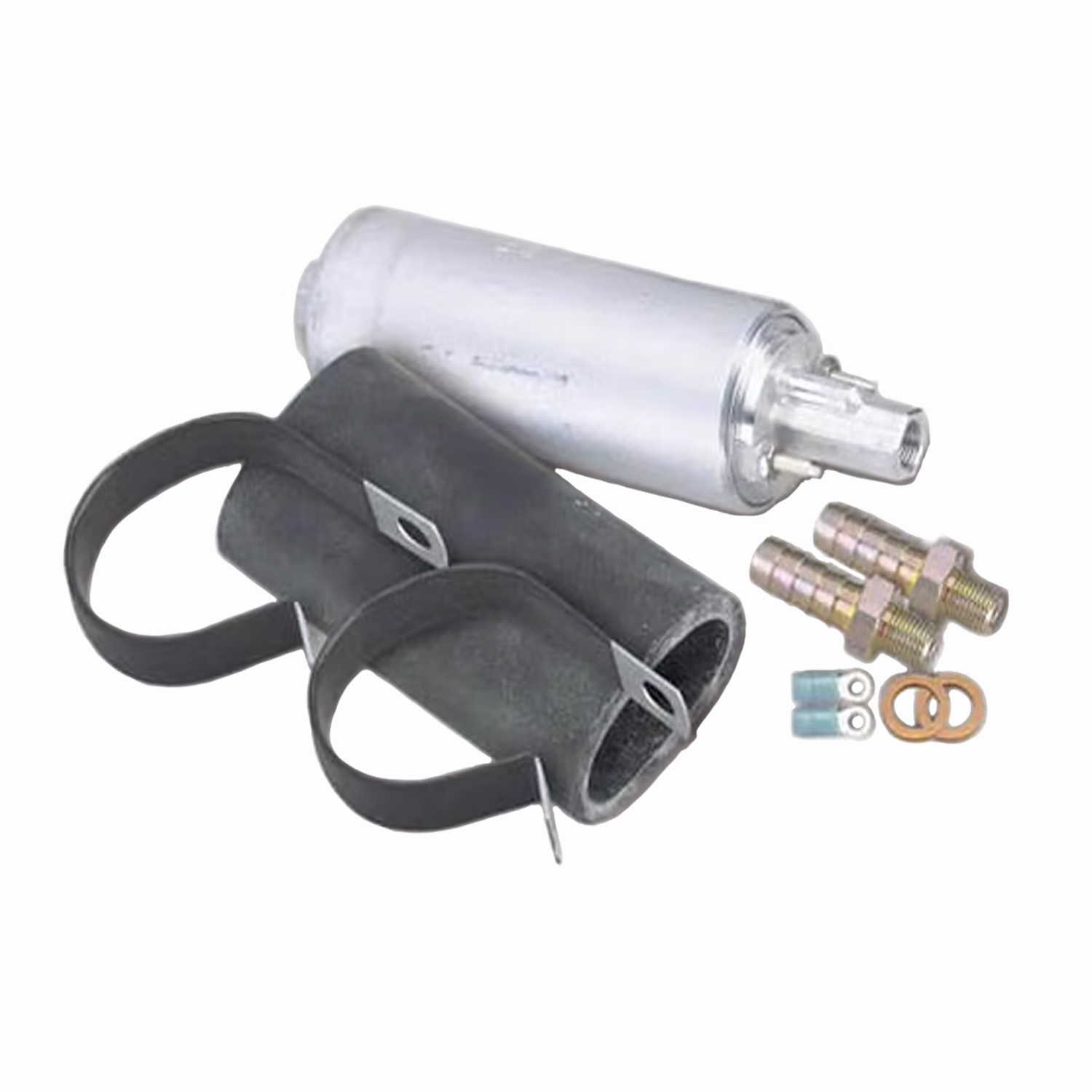

Note: Includes two 3/8" hose barb fittings and two mounting clamps. Not for returnless style fuel systems.
Quantity Sold as: A Kit
|
