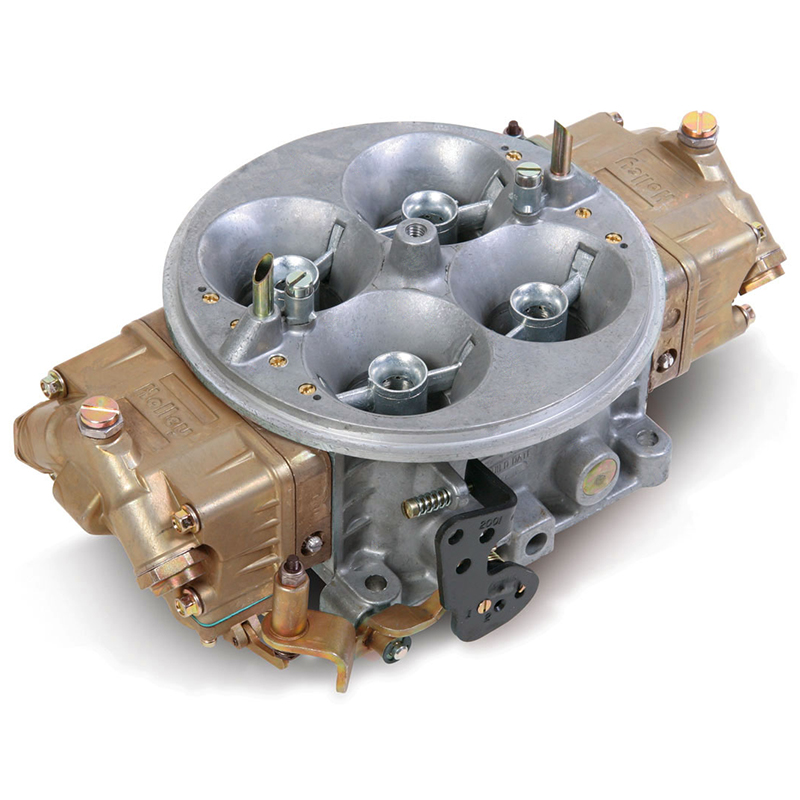

Holley Dominator HP Carburetor
Contoured venturi inlets, for maximum flow and reduced turbulence. High flow metering blocks. Screw-in air bleeds offer precision tuning capabilities. Four corner idle system for precise idle control. Pinned boosters, can't fall into engine. High strength sealing surfaces precision machined to tight tolerances. Non-stick reusable metering block and bowl gaskets. Notched float and jet extensions for continuous fuel delivery under extreme conditions.
Part Type: Carburetor
Model: 4500
Fuel Type: Gasoline
Application: Drag Race 1 x 4
Number of Barrels: 4
CFM: 1050
Choke Type: None
Fuel Inlet: Dual
Fuel Inlet Fitting Size:
Secondary Type: Mechanical
Throttle Linkage Type: Universal
Ford Auto Trans Kickdown: No
Main Body: Aluminum
Booster Type: Annular
Screw-In Air Bleeds: Yes
Metering: 3-Circuit
Primary Venturi Diameter: 1.690"
Base Plate: Billet Aluminum
Base Plate Pattern: 5.38" x 5.38"
Primary Throttle Bore Diameter: 2.000"
Secondary Throttle Bore Diameter: 2.000"
Primary Metering Block: Zinc
Secondary Metering Block: Zinc
Primary Fuel Bowl: Center Hung Float, Zinc
Secondary Fuel Bowl: Center Hung Float, Zinc
Externally Adjustable Floats: Yes
Fuel Bowl Sight Windows: No
Primary Accelerator Pump: 50cc
Secondary Accelerator Pump: 50cc
Primary Main Jets: 88
Secondary Main Jets: 88
Jet Extensions: Yes
Quick Change Jet Ports: No
Needle & Seat: .120" Viton
Idle Bleed:
Intermediate Bleed:
Hi-Speed Bleed:
Primary Power Valve: 5.5" Hg
Secondary Power Valve: 5.5" Hg
Primary Pump Nozzle Size: .035"
Secondary Pump Nozzle Size: .035"
Secondary Spring Color: NA
Finish: Gold Dichromate
Vacuum Port - Timed (Spark):
Vacuum Port - Full Vacuum:
Manufacturer: Holley
Manufacturer's Part Number: 0-8896-1
Weight: 15.3 lbs.
Warranty: Holley Performance Products warrants its new performance products to be free from defects in material and workmanship for a period of 90 days from date of purchase. Holleys Limited Warranty specifically does not apply to products which have been (a) modified or altered in any way; (b) subjected to adverse conditions such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion or faulty repair; or (c) used in other than those applications recommended by Holley Performance Products. Holley also does not warrant, and disclaims all liability for products used in racing activities and/or applications other than those specifically recommended in the current Holley catalog. This Limited Warranty is extended to the original consumer only. This Limited Warranty is not assignable or otherwise transferable. There are no warranties which extend beyond those stated herein. Holley offers no other warranties, express or implied beyond this Limited Warranty. In the event of an alleged defect in material or workmanship, Holley's responsibility is strictly limited to repair or replace the defective product. Holley has no other obligation express or implied. Final warranty determination will be in the sole discretion of Holley. Holley shall not be responsible for (a) actual or alleged labor, transportation or other incidental charges; or (b) actual or alleged consequential or other damages incurred by use of product of Holley Performance Products.
Quantity: Sold as Each
|
