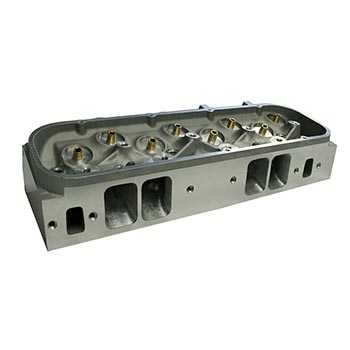

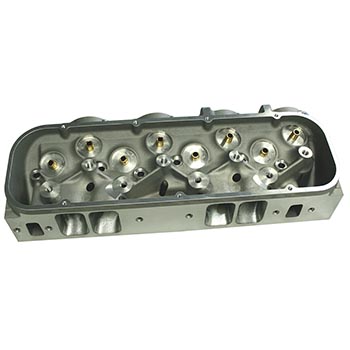

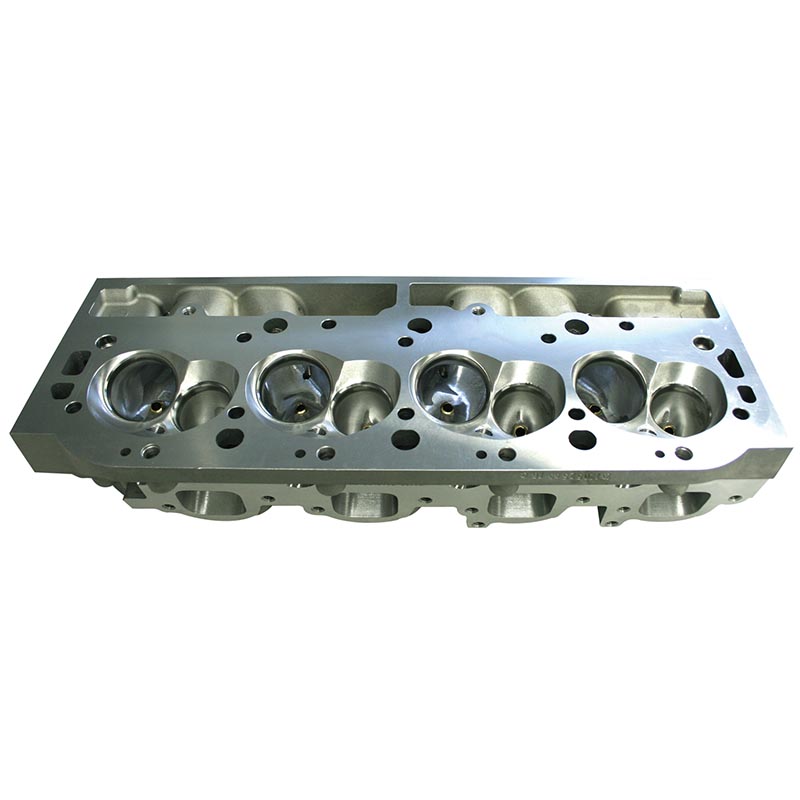

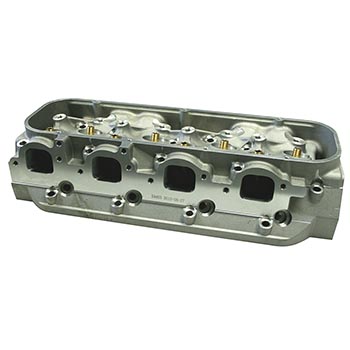

Goodwin Competition CNC Pro Ported Power Plus Chev BB Heads Aluminum
Professional porting now available to everyone! From the top name in competition research and development for many top race teams, comes these fully CNC ported masterpieces. The latest in wet flow technology produces a minimal cross sectional area with max velocity air flow. Full attention is applied to each intake runner, exhaust runner, chamber and bowl area, for the best flowing heads of their class.
• Precision CNC Pro Ported by Goodwin Competition
• The Latest in Wet Flow Technology
• Minimal Cross Sectional Area with Max Velocity Air Flow
• Full Attention is Applied to each Intake Runner, Exhaust Runner,
Cumbustion Chamber and Bowl Area
Part Type: Cylinder Head
Application: Chevrolet Big Block
Cylinder Head Material: Aluminum
Bare or Assembled: Bare

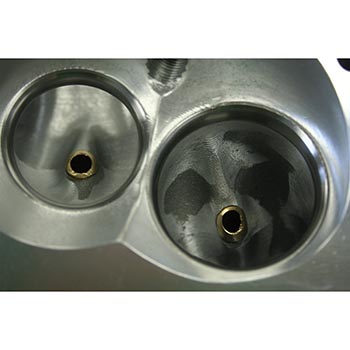

Combustion Chamber Size: 121cc
CNC Machined Combustion Chambers: Yes
Intake Valve Angle: 24
Exhaust Valve Angle: 24

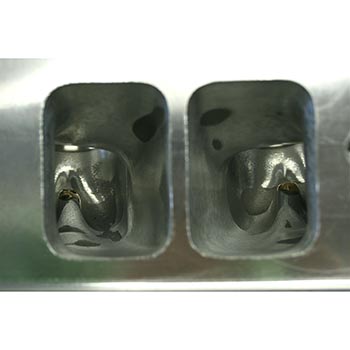

Intake Port Volume: 385cc
CNC Machined Intake Port: Yes
Intake Port Flow:
Intake Port Location: Standard
Intake Port Shape: Rectangular
Intake Port Dimensions:
Suggested Intake Gaskets:
Exhaust Port Volume:
CNC Machined Exhaust Port: No
Exhaust Port Flow:
Exhaust Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Dimensions:
Suggested Exhaust Gaskets:
Spark Plug Style:
Suggested Spark Plug:
Valve Guides: Yes
Valve Guide Spacing:
Valve Stem Diameter:
Valve Seats: Yes
Valve Job: Multi-Angle
Intake Valve Diameter: 2.300"
Intake Valve Included: No
Exhaust Valve Diameter: 1.880"
Exhaust Valve Included: No
Suggested Valve Length:
Valve Spring Pockets:
Valve Springs Included: No
Valve Spring Application: NA
Valve Springs Retainers Included: No
Valve Locks Included: No
Valve Seals Included: No
Rocker Studs Included: No
Guide Plates Included: No
Valve Cover Mounting Style:
Steam Holes Drilled: No
Heat Crossover: No
Suggested Head Bolts:
Suggested Head Studs:
Suggested Stud Girdle:
Head Bolt Torque with Oil:
Rocker Stud Torque with Oil:
Intake Bolt Torque with Oil:
Manufacturer: Goodwin Competition
Manufacturer's Part Number: GDW77015
Weight:
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Pair
Note: Includes Solid Intake Bolt Inserts
|
