FiTech Ultimate LS Induction System

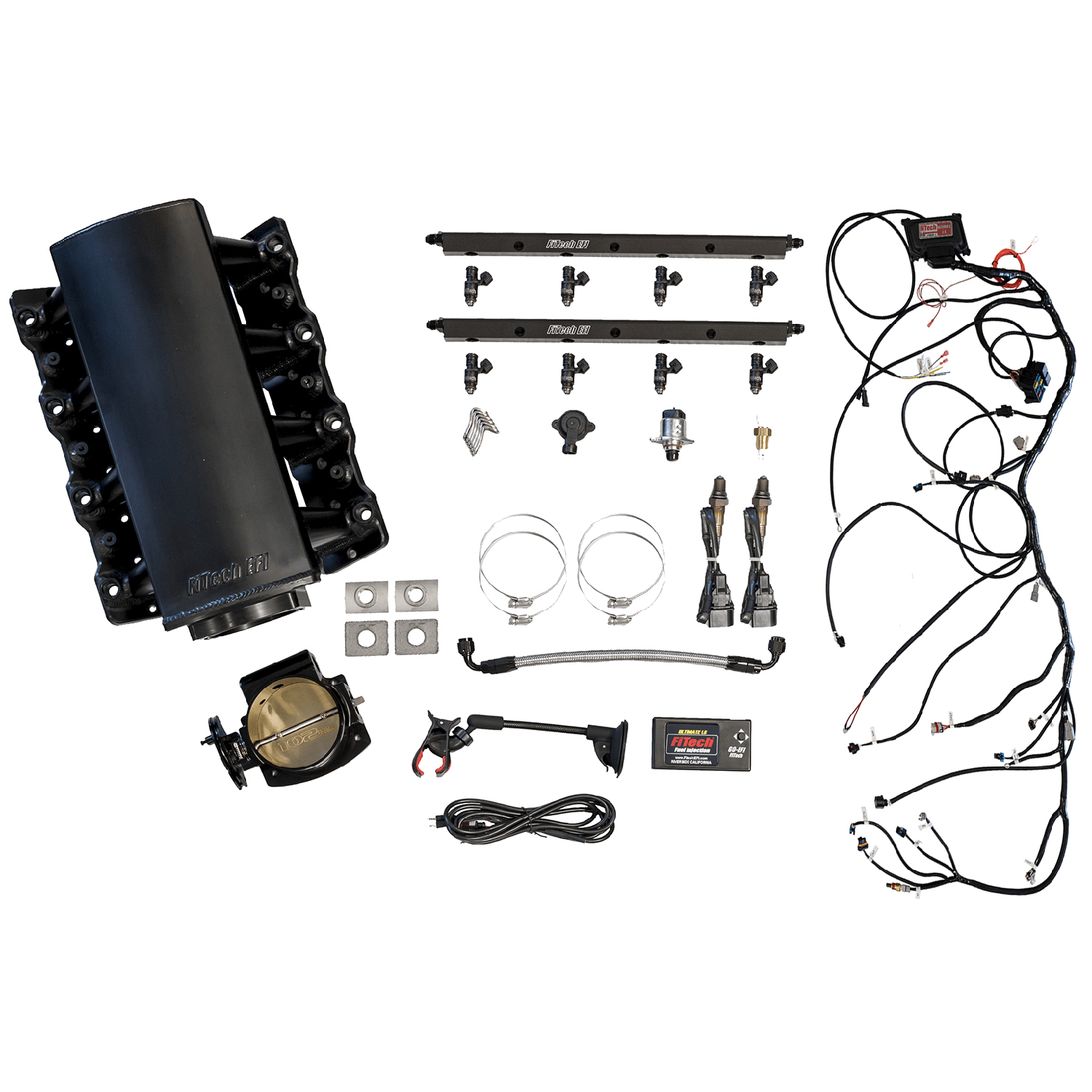

Complete Self-Tuning Induction System for LS engines designed for the do-it-yourself Hot Rodder, to the professional EFI tuner! This system is ready to go with everything needed to complete the induction system of your LS engine and get you on the road easily and faster than any system on the market today. Forget sourcing mismatched parts and cutting and splicing old harnesses and re-flashed ECU's. FiTech's Ultimate EFI is a complete kit. Suitable for that junk yard 5.3L to a stroker 427!

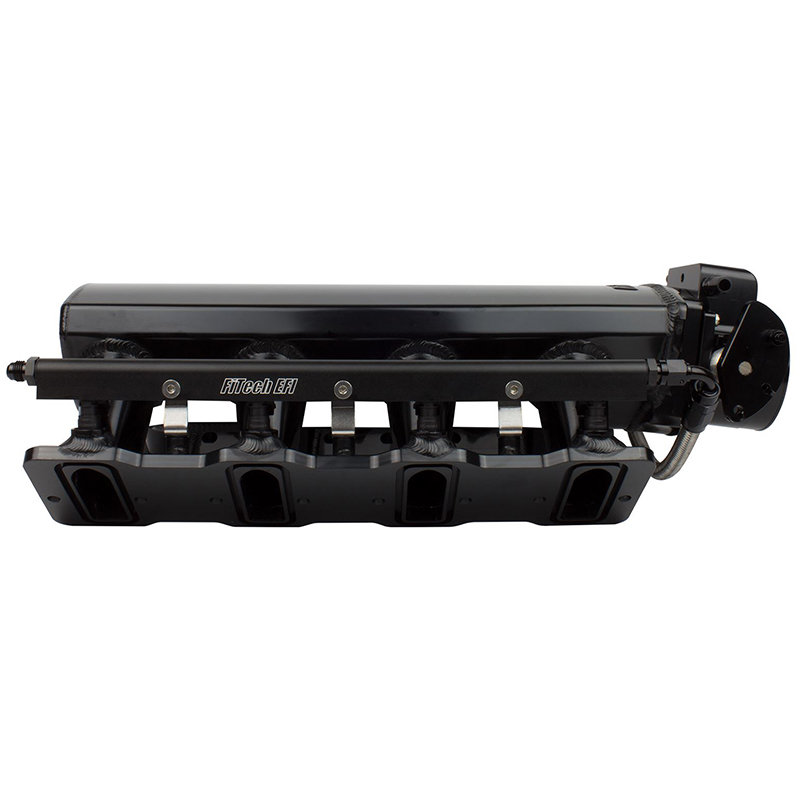

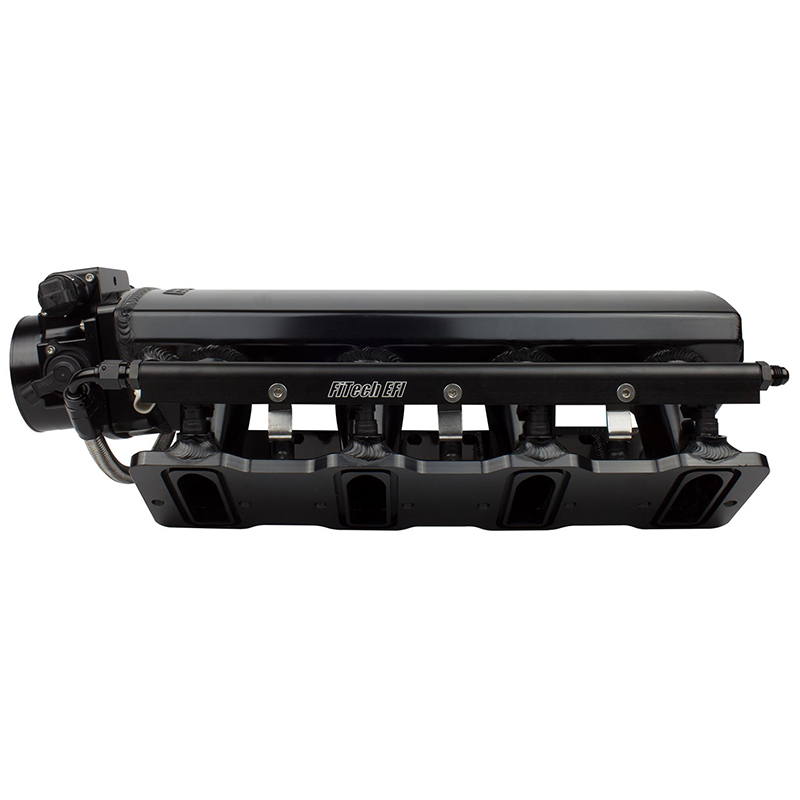

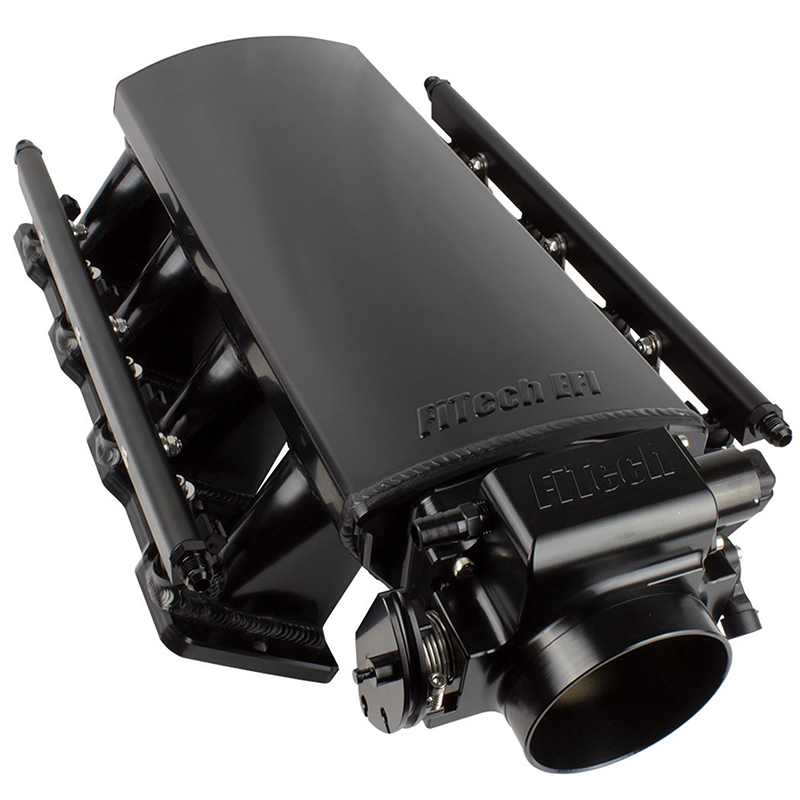

- Low profile aluminum fabricated intake (1500-6500 RPM)

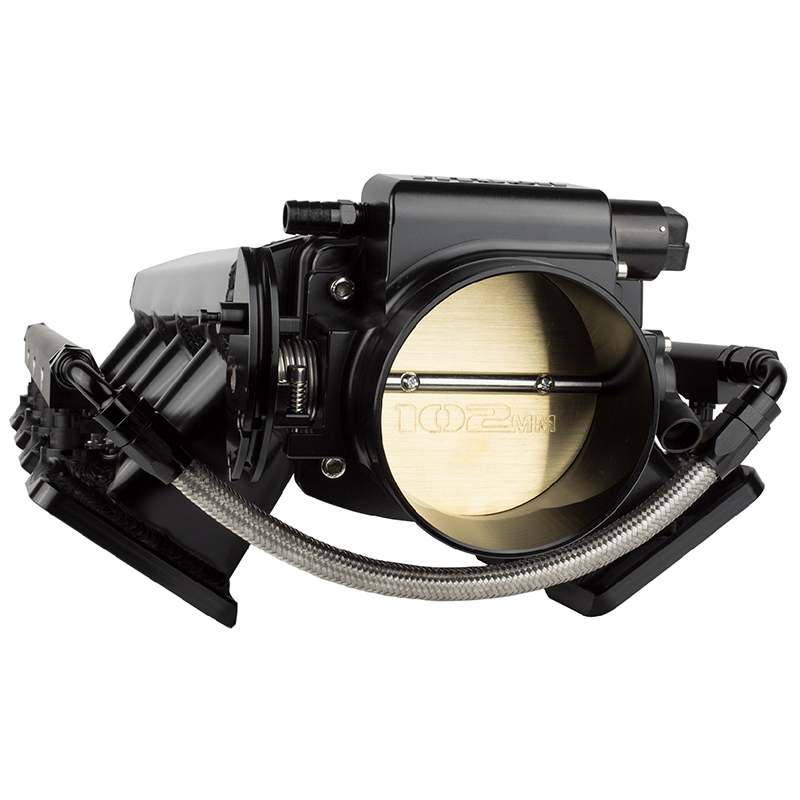

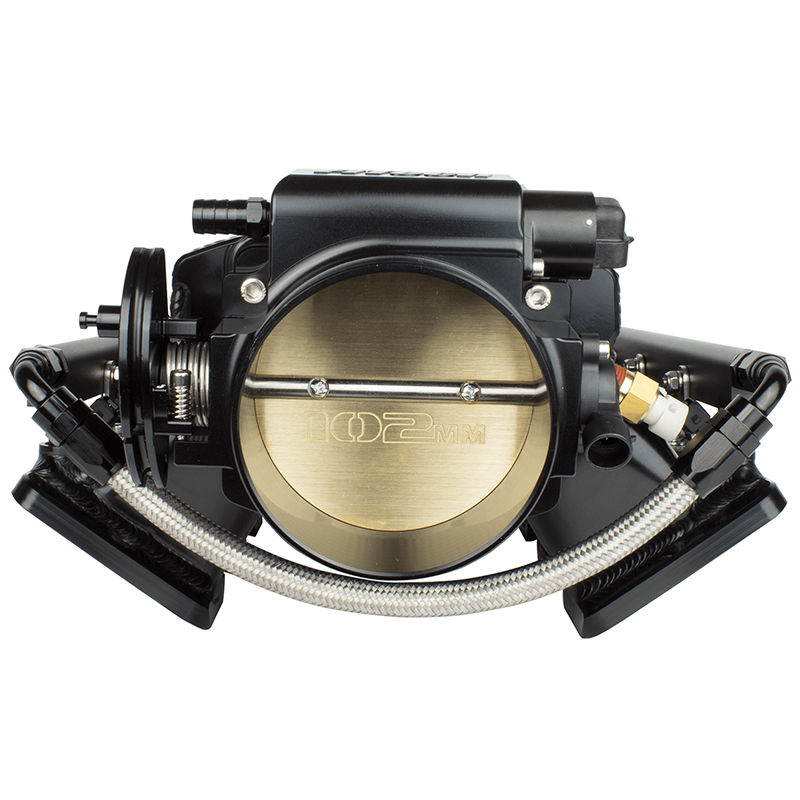

- Hi-Flow cable operated 92mm throttle body
- Self-Learning ECU with Touch Screen controller
- Sequential fuel and spark control w/ individual cylinder trim.
- 24X and 58X crank and cam compatible
- Two programmable fan control outputs
- Speedometer Output Driver for most speedometers
- On the fly programmable target AFR and Timing (if desired)
- 55lb. flow-matched injectors.
- Fuel pump relay output
- Custom wire harness (uses factory coil pack sub harness)
- Programmable Color Touch Screen Hand Held Controller with data logging features
- Custom cam friendly
- Knock Sensor Control

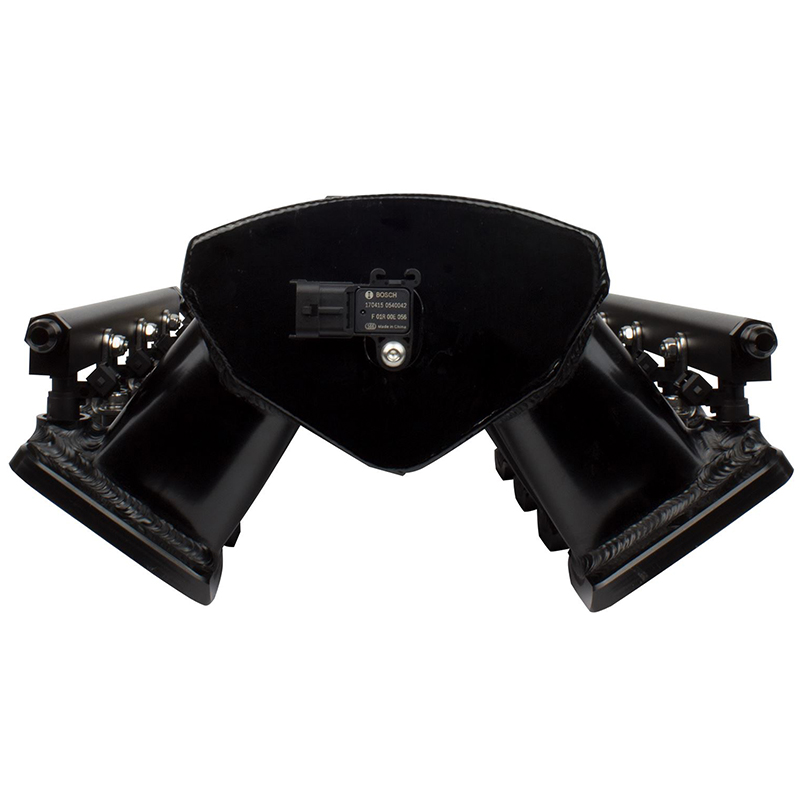

- 3 Bar MAP Sensor
Part Type: Fuel Injection System
Application: LS1/2/6
Transmission Control Included: No
Horsepower Rating: 750 HP
Self-Tuning: Yes
Injection Style: Throttle Body
Metering Style: Speed Density
Throttle Body Included: Yes, Die Cast
Throttle Body Material: Billet Aluminum
Throttle Body Finish: Black
Injectors Included: Yes, 8
Injector Size: 55lb.
Venturi Quantity: 1
Intake Manifold Included: Yes
Fuel Rails Included: Yes
Calibration Module Included: Yes, Handheld w/ Color Touch screen
ECU Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
O2 Sensor Bung Kit Included: Yes
Fuel Pump Included: No
Fuel Pressure Regulator Included: No
MAP Sensor Included: Yes
Intake Air Temperature Sensor Included: Yes
Throttle Position Sensor Included: Yes
Idle Air Control Included: Yes
Coolant Temperature Sensor: Yes
Distributor Included: No
Timing Control: Yes
Voltage Control for Fuel Pump: Yes
Fan Control Included: Yes, 2 Adjustable
Data Logging: Yes
Gasket Kit Included: No
Manufacturer: FiTech Fuel Injection
Manufacturer's Part Number: 70008
Weight: 32.6 lbs.
Warranty: LIMITED WARRANTY- a.) What is Covered- This warranty is limited to repair or replacement (at their option) of any FiTech part that fails because of a defect in workmanship or materials. Implied warranty: Any warranties implied by law are limited to the duration of this warranty, (except in those states where prohibited by law). b.) How Long it is Covered- All FiTech products are warranted for a period of one year from date of original retail purchase with an original receipt showing proof of purchase. c.) Who They Cover- All FiTech warranties apply to the original purchasing consumer. d.) What They Do Not Cover- Failure of a product due to misapplication, improper installation or maintenance, misuse, abuse, unauthorized repairs, accidents, or modifications to the original design. Certain components of the EFI systems are limited to a 90 day warranty period. See separate complete Limited Warranty document for a list of specific components. e.) What We Do Not Cover (Continued)- Removal or replacement costs. Shipping Costs. Damage to related components. Costs incurred due to downtime of vehicle.
Quantity: Sold as Kit
|
