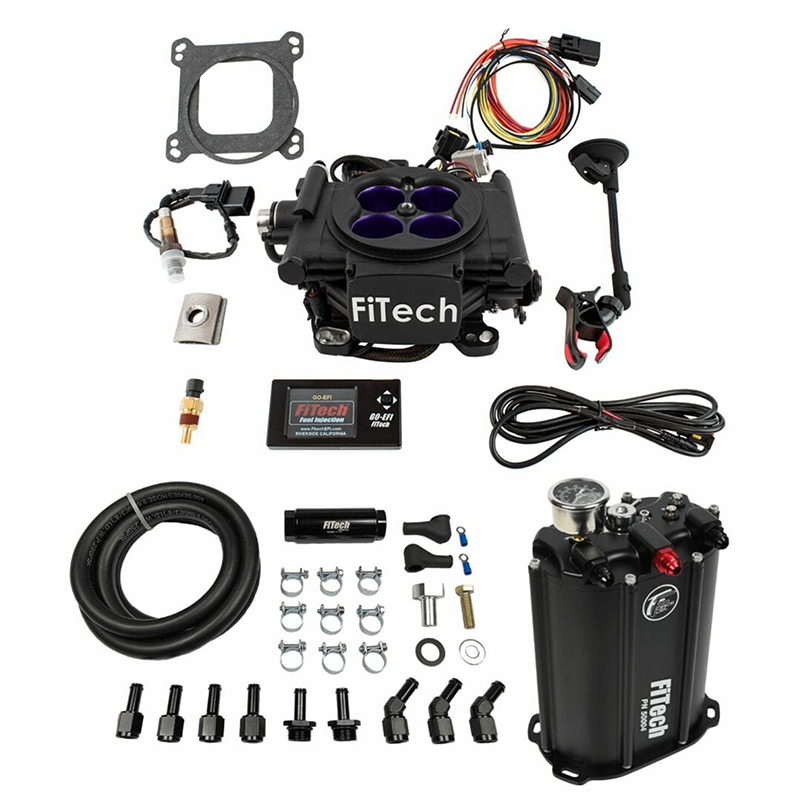

FiTech Mean Street EFI Master Kit w/ Force Fuel System
Never has so much power been placed in one compact package. The Meanstreet is a nitrous compatible system with eight injectors, an onboard ECU, MAP sensor and internal fuel pressure regulator to deliver a simple, clean installation.
The Meanstreet's annular swirl, wet flow technology provides the most complete fuel atomization available. Using FiTech's proprietary self-tuning technology, combined with easy tuning of steps with the supplied handheld monitor, you'll have your high powered engine tuned and ready for the street or track. The matte black throttle body bolts to any 4 barrel intake and wiring is kept at an absolute minimum tanks to the built-in ECU.
Supplied with: Handheld controller, windshield mount, WBO2 sensor, bung kit, coolant sensor, gasket, and mini USB cable.
This Master Kit is supplied with the Force Fuel Delivery System, high pressure hose, fittings, and serviceable 10-micron filter.
Note: Nitrous cannot be controlled by this system. When the nitrous is activated, the Meanstreet switches to a customer programmed AFR target.
Part Type: Fuel Injection System
Application: Universal 4bbl
Horsepower Rating: 800 HP
Self-Tuning: Yes
Injection Style: Throttle Body
Metering Style: Speed Density
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4bbl Square Bore
Throttle Body Material: Cast Aluminum
Throttle Body Finish: Black
Injectors Included: Yes
Injector Size: 62 lbs./hr.
Venturi Quantity: 4, Annular Discharge Design
Intake Manifold Included: No
Fuel Rails Included: No
Fuel Inlet Ports:
Fuel Inlet Fitting:
Calibration Module Included: Yes, Handheld w/ Color Touch screen & Windshield Mount
ECU Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes, Wide Band 4.2
O2 Sensor Bung Kit Included: Yes, Clamp-On or Weld-On
Fuel Pump Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes
Intake Air Temperature Sensor Included: Yes
Throttle Position Sensor Included: Yes
Idle Air Control Included: Yes
Coolant Temperature Sensor: Yes
Distributor Included: No
Timing Control: No
Voltage Control for Fuel Pump: Yes
Fan Control Included: Yes, 1 Adjustable
Data Logging: No
Gasket Kit Included: Yes
Manufacturer: FiTech Fuel Injection
Manufacturer's Part Number: 35208
Weight: 22.0 lbs.
Warranty: LIMITED WARRANTY- a.) What is Covered- This warranty is limited to repair or replacement (at their option) of any FiTech part that fails because of a defect in workmanship or materials. Implied warranty: Any warranties implied by law are limited to the duration of this warranty, (except in those states where prohibited by law). b.) How Long it is Covered- All FiTech products are warranted for a period of one year from date of original retail purchase with an original receipt showing proof of purchase. c.) Who They Cover- All FiTech warranties apply to the original purchasing consumer. d.) What They Do Not Cover- Failure of a product due to misapplication, improper installation or maintenance, misuse, abuse, unauthorized repairs, accidents, or modifications to the original design. Certain components of the EFI systems are limited to a 90 day warranty period. See separate complete Limited Warranty document for a list of specific components. e.) What We Do Not Cover (Continued)- Removal or replacement costs. Shipping Costs. Damage to related components. Costs incurred due to downtime of vehicle.
Quantity: Sold as Kit
|
