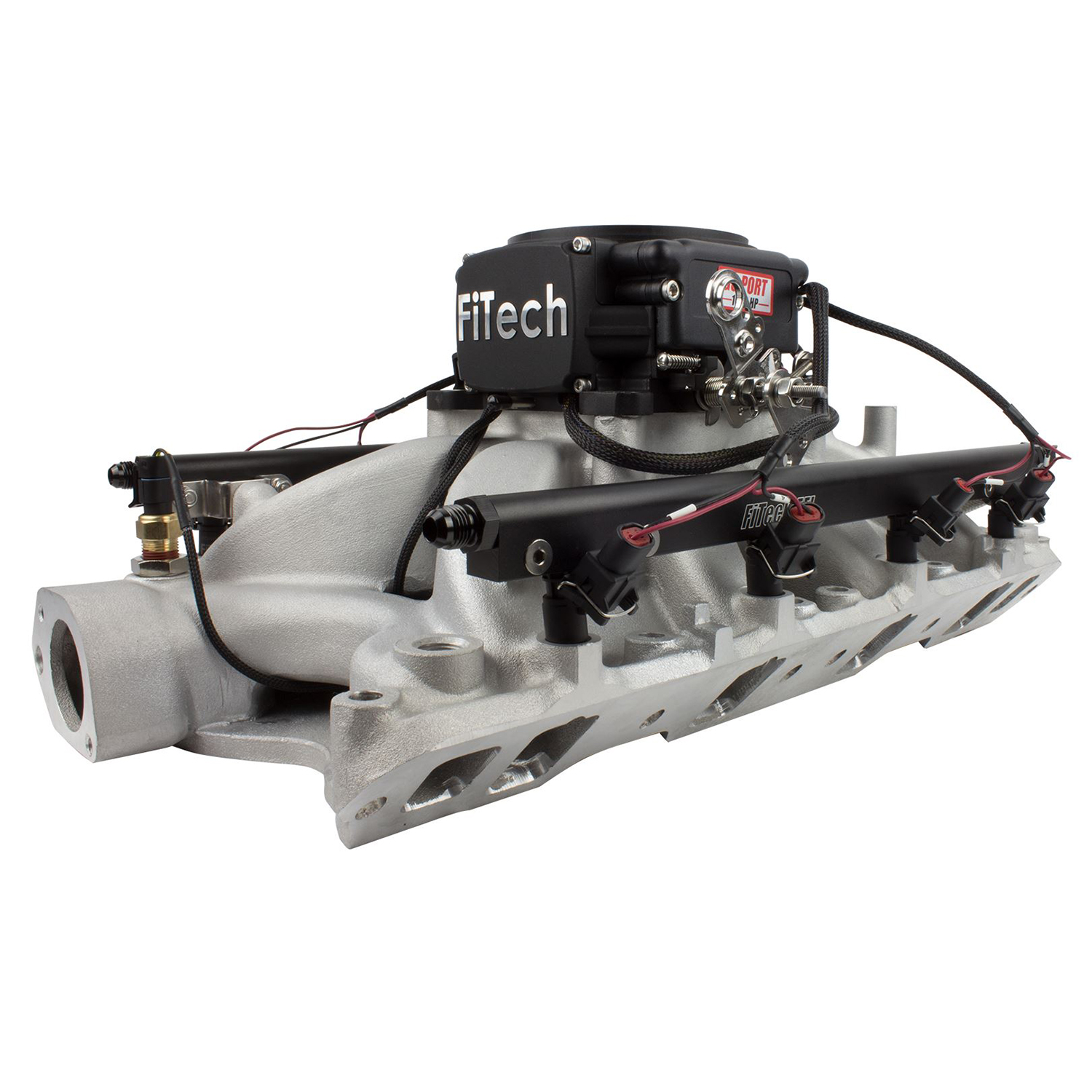

FiTech Go Port EFI, BBC System
The Go Port EFI system features eight injectors placed precisely in each intake runner to inject fuel right into the cylinder head port. A sequential port fuel design provides excellent throttle response, effective fuel atomization and delivery, resulting in terrific throttle response and overall performance.
Each 1050HP system is supplied with a new aluminum intake machined and fitted with injectors, fuel rails, the wiring harness, and an 850 cfm throttle body. The ECU, with its high speed processor, is integral to the throttle body along with the TPS, IAC, IAT and MAP sensors, reducing wiring and making installation as easy as possible. All setup is handled through the color touch screen monitor with no tuning experience necessary to have your engine fired up and running at its best.
- Injectors and fuel rails installed right out of the box
- Locking, sealed connectors for all injector and sensor connections
- No laptop tuning required - do it all from the hand held monitor
Includes: Throttle body, gasket, aluminum single plane intake manifold, high flow fuel rails, injectors, WBO2 sensor, bung kit, coolant temp sensor, color touch screen monitor and mount.
FiTech Go Port EFI, SBC System
The Go Port EFI system features eight injectors placed precisely in each intake runner to inject fuel right into the cylinder head port. A sequential port fuel design provides excellent throttle response, effective fuel atomization and delivery, resulting in terrific throttle response and overall performance.
Each 550HP system is supplied with a new aluminum intake machined and fitted with injectors, fuel rails, the wiring harness, and an 850 cfm throttle body. The ECU, with its high speed processor, is integral to the throttle body along with the TPS, IAC, IAT and MAP sensors, reducing wiring and making installation as easy as possible. All setup is handled through the color touch screen monitor with no tuning experience necessary to have your engine fired up and running at its best.
- Injectors and fuel rails installed right out of the box
- Locking, sealed connectors for all injector and sensor connections
- No laptop tuning required - do it all from the hand held monitor
Includes: Throttle body, gasket, aluminum single plane intake manifold, high flow fuel rails, injectors, WBO2 sensor, bung kit, coolant temp sensor, color touch screen monitor and mount.
Part Type: Fuel Injection System
Application: Chevrolet Big Block Rectangle Port
Horsepower Rating: 1050 HP
Self-Tuning: Yes, up to 1050 HP
Injection Style: Multi-Port
Metering Style: Speed Density
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4bbl Square Bore
Throttle Body Material: Cast Aluminum
Throttle Body Finish: Matte Black
Injectors Included: Yes
Injector Size:
Venturi Quantity: 4
Intake Manifold Included: Yes
Intake Manifold Material: Aluminum
Intake Manifold Finish: Natural
Fuel Rails Included: Yes
Calibration Module Included: Yes
ECM Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes
O2 Sensor Bung Kit Included: Yes
Fuel Pump Included: No
Fuel Pressure Regulator Included: No
MAP Sensor Included: Yes
Intake Air Temperature Sensor Included: Yes
Throttle Position Sensor Included: Yes
Idle Air Control Included: Yes
Coolant Temperature Sensor: Yes
Distributor Included: No
Timing Control: Yes
Voltage Control for Fuel Pump: Yes
Fan Control Included: Yes, 2 Adjustable
Data Logging: Yes
Gasket Kit Included: Yes
Manufacturer: FiTech Fuel Injection
Manufacturer's Part Number: 30258
Quantity: Sold as Kit
|
