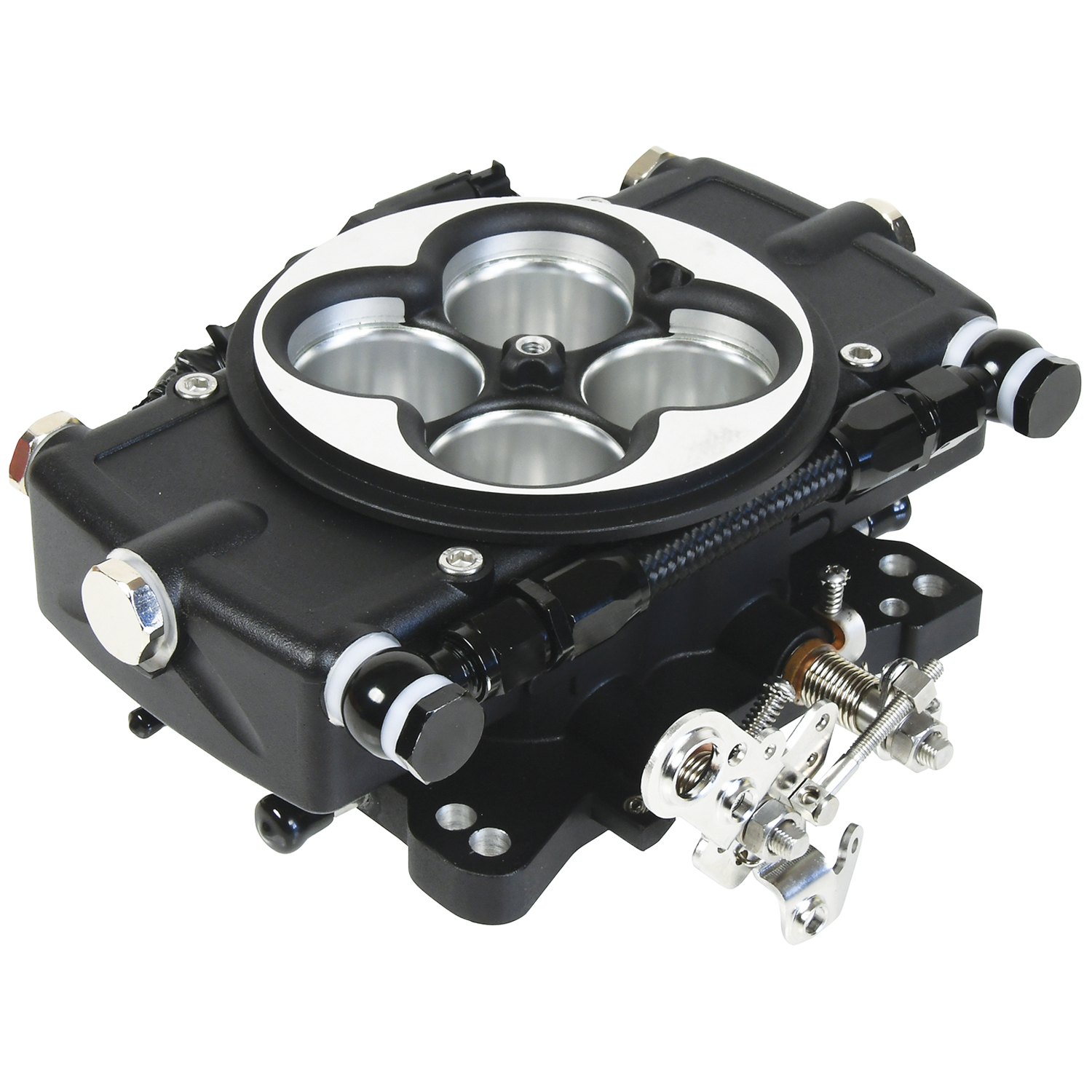

Go EFI Classic Self-Tuning Fuel Injection Systems
Fitech EFI is reverting back to the old school classic look while maintaining its innovative award winning patented design. This revolutionary fuel injection system allows you to maintain the classic carburetor look while eliminating cold start issues, hesitation, vapor lock, and flooding. This innovative classic design hides the injectors and has an externally mounted ECU so it can be mounted wherever you want to ensure a true carburetor look is maintained. The Go EFI Classic is a self-tuning fuel injection system. The more you drive the more it adapts to your personal style. Perfect for your everyday driver, weekend street machine or bracket racer.
Note: Fuel pressure regulator required.
- Classic Carburetor Look
- Self-tuning - after startup the ECU immediately takes over and provides your vehicle with an optimm tune
- Basic install needs only 4 wires and 2 sensors to install
- Bosch 4.2 wide band O2 sensor
- Externally mounted ECU so it can be mounted wherever you want to ensure a true carburetor look is maintained
- Ignition timing control (optional and not required)
- Ignition timing can be controlled and adjusted on the fly
- Will work with CDI box (not required)
- Throttle Linkage suits most transmission
- Voltage Control fuel pump control
- Swirl Spray Annular discharge wet flow technology
- Air Fuel ratios can be optimized on the fly as you drive
- 1 adjustable fan control switch
- Color touch screen controller
Part Type: Fuel Injection System
Application: Universal
Horsepower Rating: Up to 550 HP
Self-Tuning: Yes
Injection Style: Throttle Body
Metering Style: Speed Density
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4bbl Square Bore
Throttle Body Material: Cast Aluminum
Throttle Body Finish: Matte Black
Injectors Included: Yes
Injector Size: 62 lbs./hr.
Venturi Quantity: 4, Annular Discharge Design
Intake Manifold Included: No
Fuel Rails Included: No
Fuel Inlet Ports:
Fuel Inlet Fitting:
Calibration Module Included: Yes
ECU Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes, Wide Band 4.2
O2 Sensor Bung Kit Included: Yes, Clamp-On or Weld-On
Fuel Pump Included: No
Fuel Pressure Regulator Included: No
MAP Sensor Included: Yes
Intake Air Temperature Sensor Included: Yes
Throttle Position Sensor Included: Yes
Idle Air Control Included: Yes
Coolant Temperature Sensor:
Distributor Included: No
Timing Control:
Voltage Control for Fuel Pump:
Fan Control Included:
Data Logging:
Gasket Kit Included: Yes
Manufacturer: FiTech Fuel Injection
Manufacturer's Part Number: 30021
Weight: 14 lbs.
Warranty: LIMITED WARRANTY- a.) What is Covered- This warranty is limited to repair or replacement (at their option) of any FiTech part that fails because of a defect in workmanship or materials. Implied warranty: Any warranties implied by law are limited to the duration of this warranty, (except in those states where prohibited by law). b.) How Long it is Covered- All FiTech products are warranted for a period of one year from date of original retail purchase with an original receipt showing proof of purchase. c.) Who They Cover- All FiTech warranties apply to the original purchasing consumer. d.) What They Do Not Cover- Failure of a product due to misapplication, improper installation or maintenance, misuse, abuse, unauthorized repairs, accidents, or modifications to the original design. Certain components of the EFI systems are limited to a 90 day warranty period. See separate complete Limited Warranty document for a list of specific components. e.) What We Do Not Cover (Continued)- Removal or replacement costs. Shipping Costs. Damage to related components. Costs incurred due to downtime of vehicle.
Quantity: Sold as Kit
|
