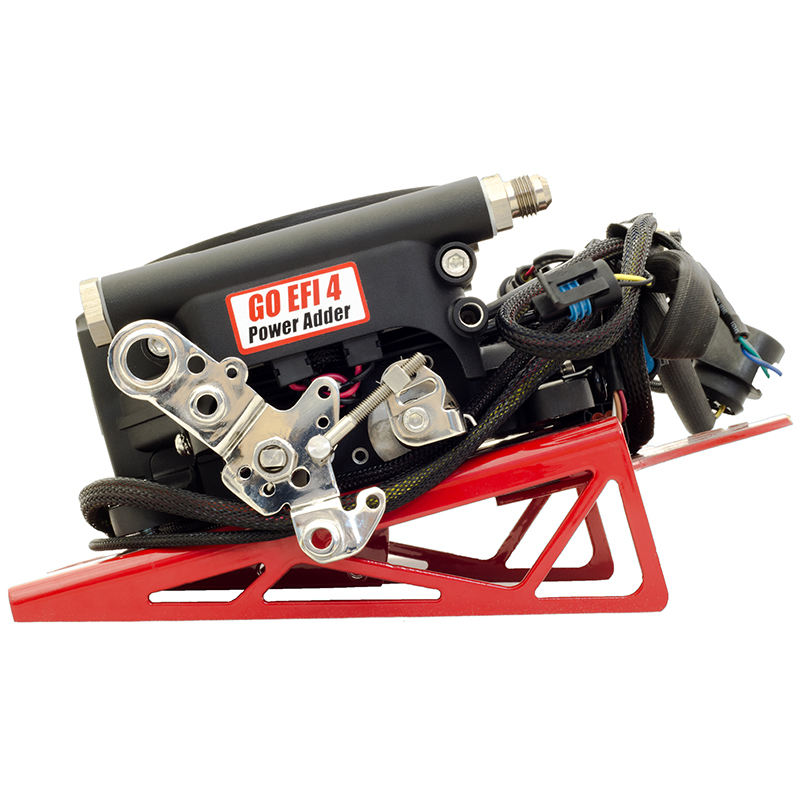

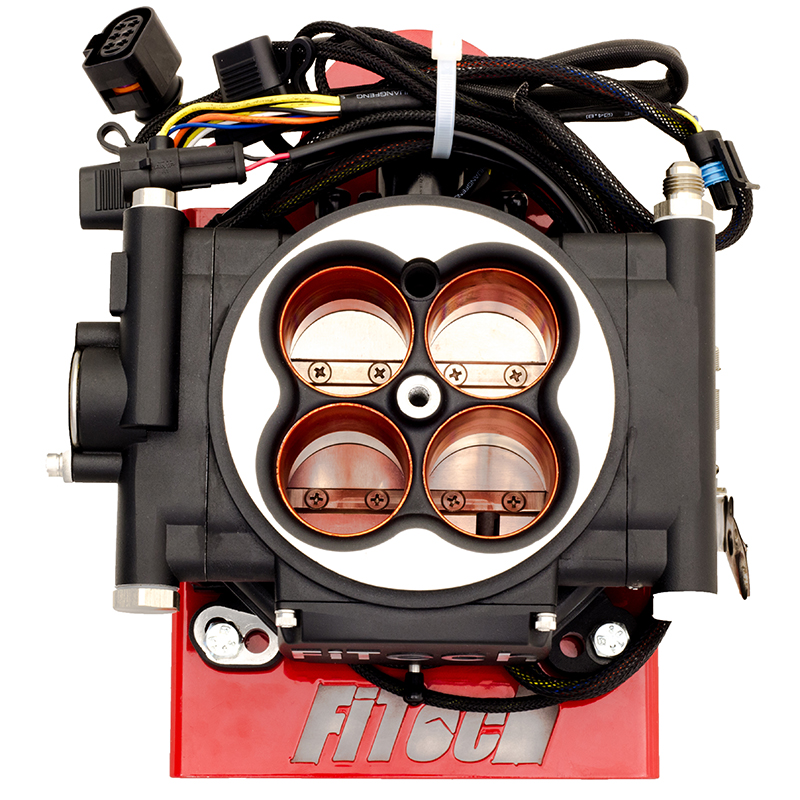

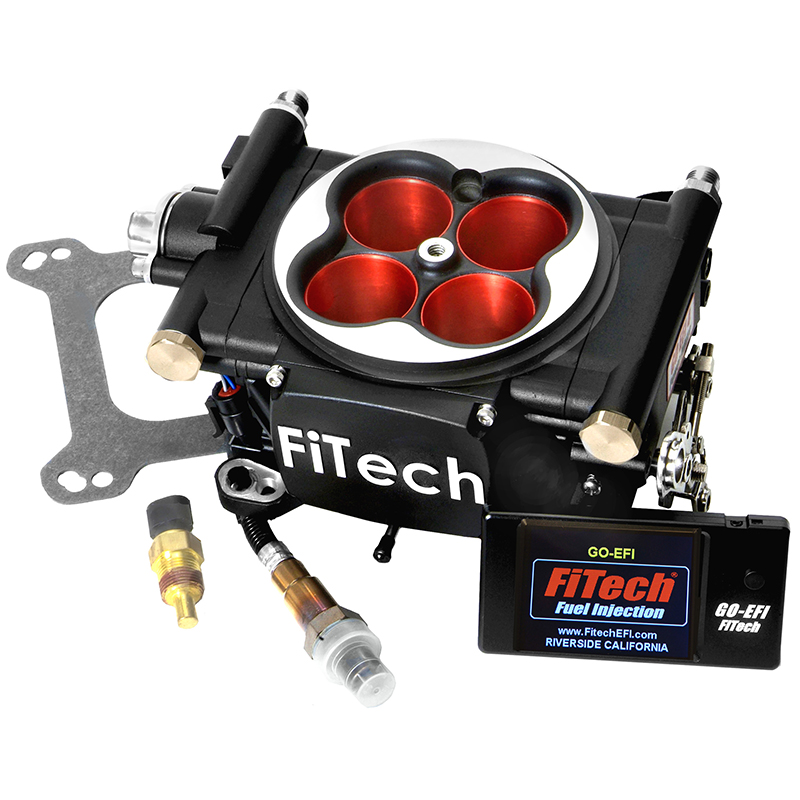

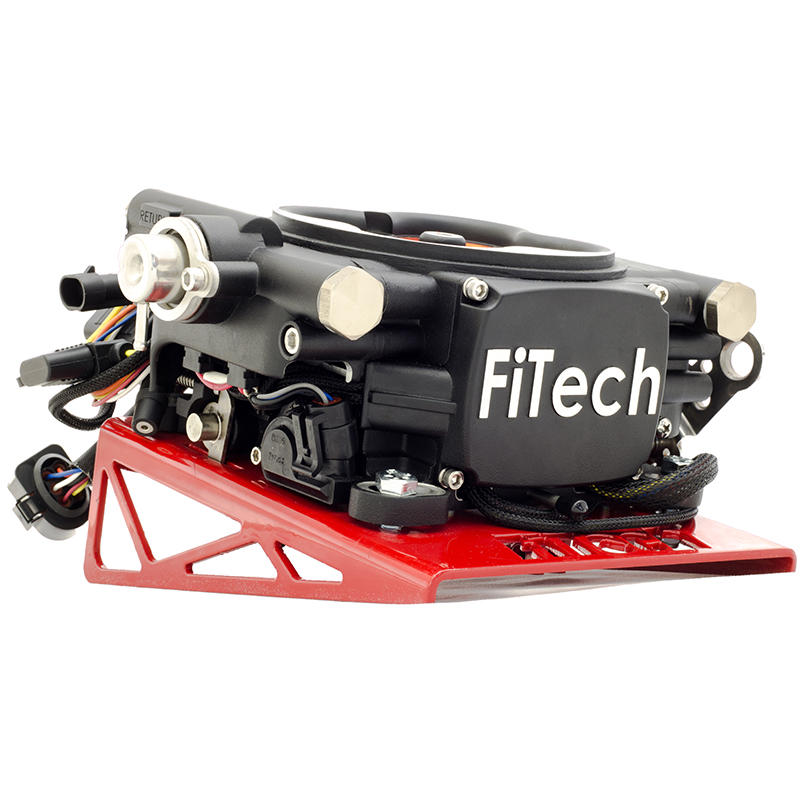

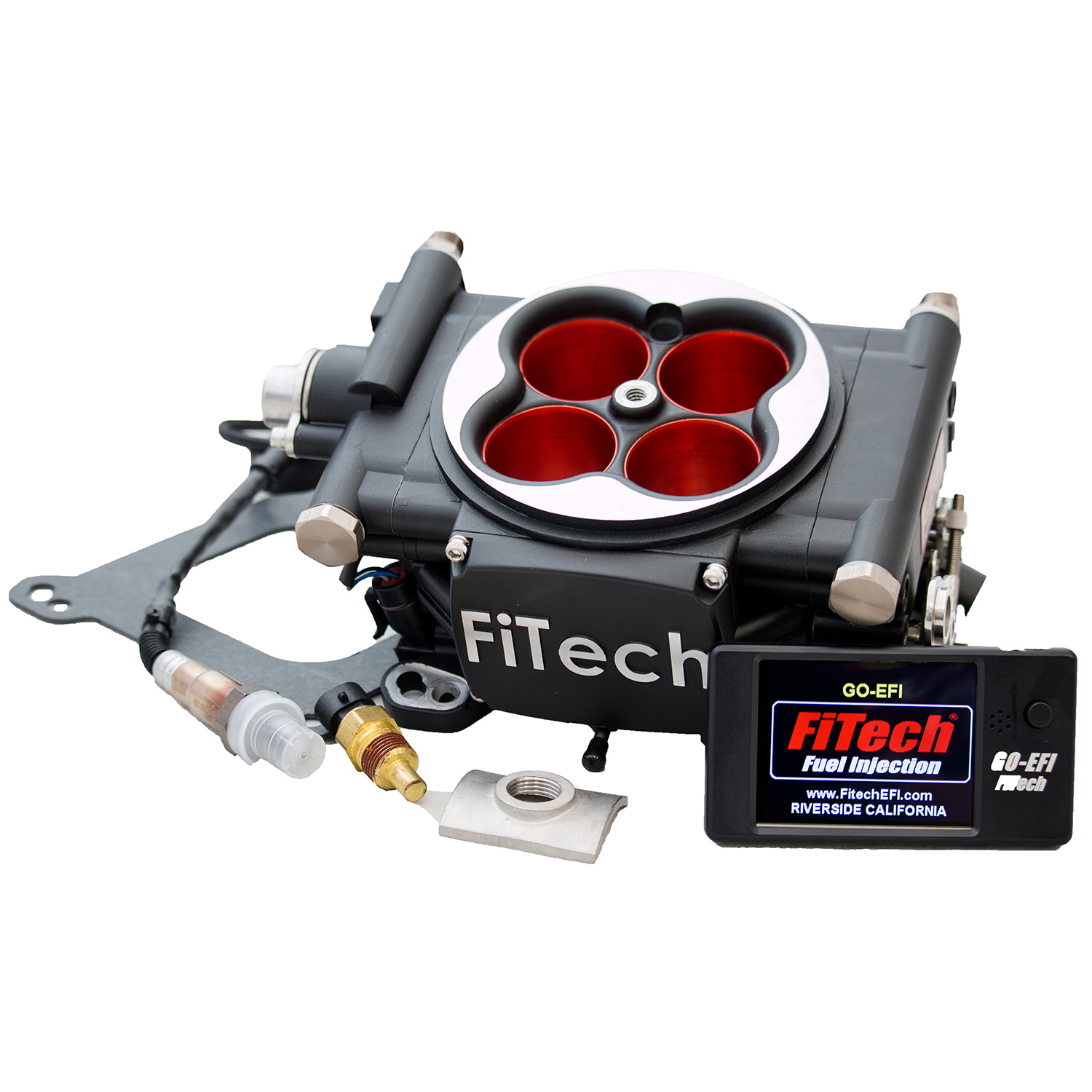

FiTech Fuel Injection Go EFI 4 Power Adder Self-Tuning Fuel Injection System
The Go EFI Power Adder 600 HP Kit is for the enthusiast that demands more from his system or is planning a future upgrade! This system is capable of 25 lbs of boost right out of the box and can be used in a blow thru turbo or blower application or on a single rootes style supercharger. You can also run a single stage of Wet Nitrous and control your A/F as well as ignition timing.
Has all of the self tuning features you expect from the Go EFI systems with the extra PRO features needed for higher output engines. Annular Swirl Discharge fuel distribution as well as Nitrous and Boost timing retard features make this a perfect choice for your Power Adder engine or your normally aspirated engine if you are considering future upgrades.
- Boost Ready Throttle Body
- Boost Ready ECU 2.5 Bar MAP sensor good for 25 PSI!
- NITROUS control with a host of safety features and accessories for Nitrous tuning
- Nitrous and Boost specific target Air/Fuel options
- Boost and Nitrous timing retard strategies
- 2 fan control (can set at separate temperatures
- Air-conditioning idle speed input kick up
- Advanced hand held Tuning Mode Enabled
- Pro Laptop Software, COMPLETE TUNING FOR PROFESSIONAL TUNERS
- All Go-EFI's feature Voltage Control fuel pump control. This feature reduces the voltage to the pump under low load
conditions such as idle and cruise thus reducing noise and heat. This will extend the life of your pump and keep the fuel in
the tank cooler and your ears from ringing!
- Go-EFI Systems feature Wet flow technology and have a unique Swirl Spray Annular discharge design that assures
COMPLETE ATOMIZATION!
- Ignition timing can be controlled and adjusted on the fly from your touch screen controller
- Air Fuel ratios can be optimized on the fly as you drive! Try THAT with your carb!
- Features 1 adjustable fan control switch
- Will work with CDI box but not rquired to control timing
- Built-in fuel pressure regulator. No extra regulator to mount on your fire wall.
- Manufactured with OE engineering. Our ECU's are used Globally and pass euro 5 emission standards in new vehicles.
Part Type: Fuel Injection System
Application: Universal 4bbl
Horsepower Rating: 600 HP, Naturally Aspirated, Supercharged or Nitrous
Self-Tuning: Yes
Injection Style: Throttle Body
Metering Style: Speed Density
Throttle Body Included: Yes, Die Cast
Throttle Body Mounting Flange: 4bbl Square Bore
Throttle Body Material: Cast Aluminum
Throttle Body Finish: Black
Injectors Included: Yes
Injector Size:
Venturi Quantity: 4, Annular Discharge Design
Intake Manifold Included: No
Fuel Rails Included: Internal
Fuel Inlet Ports: 3
Fuel Inlet Fitting: -6AN
Calibration Module Included: Yes, Handheld w/ Color Touch screen & Windshield Mount
ECU Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes, Wide Band 4.2
O2 Sensor Bung Kit Included: Yes, Clamp-On or Weld-On
Fuel Pump Included: No
Fuel Pressure Regulator Included: Internal
MAP Sensor Included: Yes, 2.5 Bar Internal
Intake Air Temperature Sensor Included: Yes
Throttle Position Sensor Included: Yes
Idle Air Control Included: Yes
Coolant Temperature Sensor: Yes
Distributor Included: No
Timing Control: Yes
Voltage Control for Fuel Pump: Yes
Fan Control Included: Yes, 2 Adjustable
Data Logging: Yes
Gasket Kit Included: Yes
Manufacturer: FiTech Fuel Injection
Manufacturer's Part Number: 30004
Weight: 11 lbs.
Warranty: LIMITED WARRANTY- a.) What is Covered- This warranty is limited to repair or replacement (at their option) of any FiTech part that fails because of a defect in workmanship or materials. Implied warranty: Any warranties implied by law are limited to the duration of this warranty, (except in those states where prohibited by law). b.) How Long it is Covered- All FiTech products are warranted for a period of one year from date of original retail purchase with an original receipt showing proof of purchase. c.) Who They Cover- All FiTech warranties apply to the original purchasing consumer. d.) What They Do Not Cover- Failure of a product due to misapplication, improper installation or maintenance, misuse, abuse, unauthorized repairs, accidents, or modifications to the original design. Certain components of the EFI systems are limited to a 90 day warranty period. See separate complete Limited Warranty document for a list of specific components. e.) What We Do Not Cover (Continued)- Removal or replacement costs. Shipping Costs. Damage to related components. Costs incurred due to downtime of vehicle.
Quantity: Sold as Kit
|
