FiTech Go EFI 2 x 4 Master Kit with Force Fuel Delivery System
Let everyone know that you mean business with a pair of 4 barrels crowned atop your engine. The Go EFI 2x4 self-tuning system can walk the walk and talk the talk with its intimidating look and self-tuning performance.

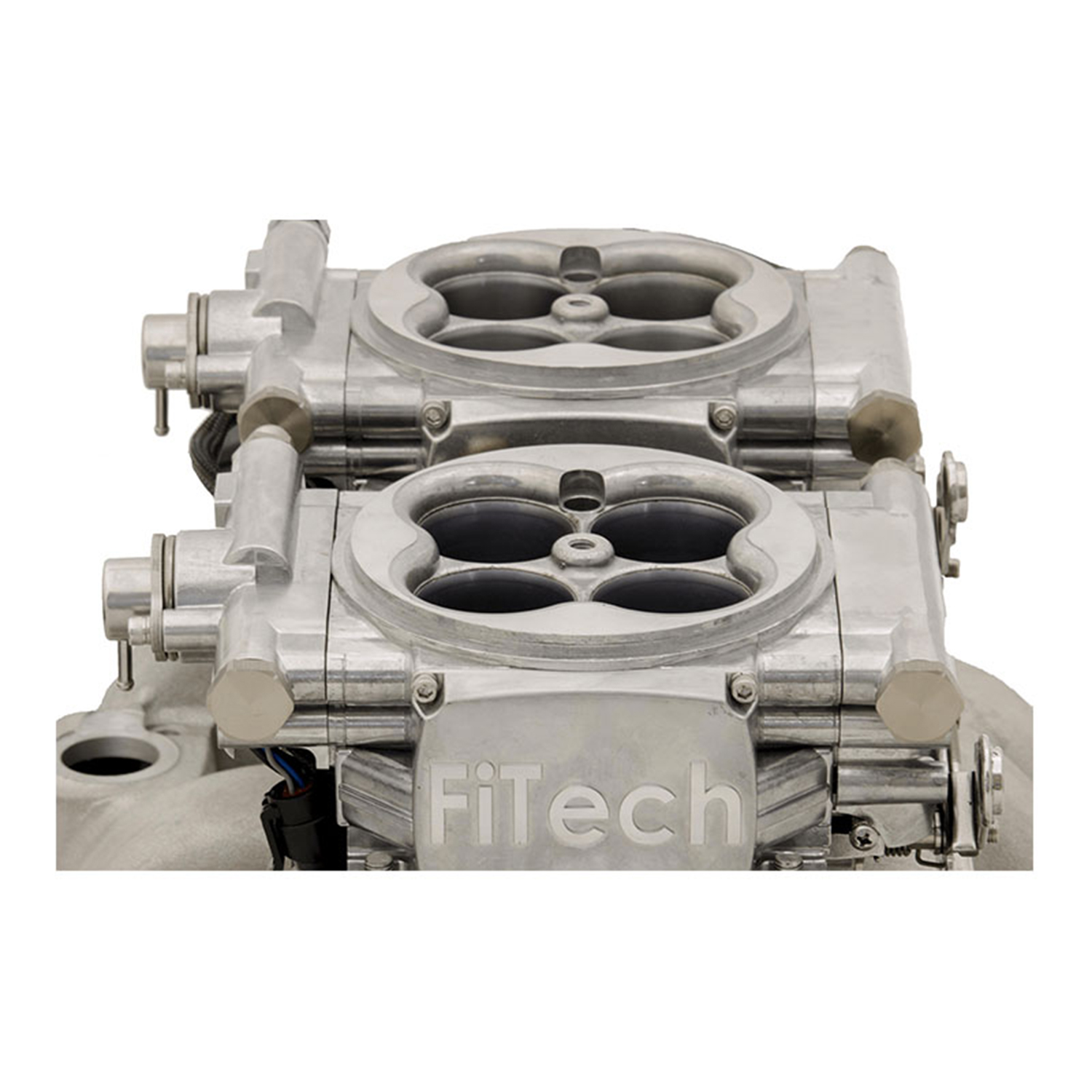

The 2x4 is supplied with two throttle bodies, one with the brains and integral ECU, the other with the brawn. Both bodies feature four injectors and will support up to 625HP (naturally aspirated). Thanks to a multi-bolt pattern, the 2x4 system will bolt onto most intakes including tunnel rams, cross rams, Edelbrock, Holley, or many factory style intakes. Through the advanced tuning capabilities of the efficient ECU, you'll have your engine fired up, idling smooth and making big power in no time.
Supplied with: Two throttle bodies, handheld controller, windshield mount, WBO2 sensor bung kit, coolant sensor, gasket, wiring harness, and mini USB cable.
This kit is supplied with the Force Fuel System, high pressure hose, fittings, and serviceable 10-micron filter.
Part Type: Fuel Injection System
Application: Universal 4bbl
Horsepower Rating: 625 HP
Self-Tuning: Yes
Injection Style: Throttle Body
Metering Style: Speed Density
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4bbl Square Bore
Throttle Body Material: Cast Aluminum
Throttle Body Finish: Bright Aluminum
Injectors Included: Yes
Injector Size: 80 lbs./hr.
Venturi Quantity: 4, Annular Discharge Design
Intake Manifold Included: No
Fuel Rails Included: No
Fuel Inlet Ports:
Fuel Inlet Fitting:
Calibration Module Included: Yes, Handheld w/ Color Touch screen & Windshield Mount
ECU Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes, Wide Band 4.2
O2 Sensor Bung Kit Included: Yes, Clamp-On or Weld-On
Fuel Pump Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes
Intake Air Temperature Sensor Included: Yes
Throttle Position Sensor Included: Yes
Idle Air Control Included: Yes
Coolant Temperature Sensor: Yes
Distributor Included: No
Timing Control: Yes
Voltage Control for Fuel Pump: Yes
Fan Control Included: Yes, 1 Adjustable
Data Logging: No
Gasket Kit Included: Yes
Manufacturer: FiTech Fuel Injection
Manufacturer's Part Number: 35261
Weight: 22.0 lbs.
Warranty: LIMITED WARRANTY- a.) What is Covered- This warranty is limited to repair or replacement (at their option) of any FiTech part that fails because of a defect in workmanship or materials. Implied warranty: Any warranties implied by law are limited to the duration of this warranty, (except in those states where prohibited by law). b.) How Long it is Covered- All FiTech products are warranted for a period of one year from date of original retail purchase with an original receipt showing proof of purchase. c.) Who They Cover- All FiTech warranties apply to the original purchasing consumer. d.) What They Do Not Cover- Failure of a product due to misapplication, improper installation or maintenance, misuse, abuse, unauthorized repairs, accidents, or modifications to the original design. Certain components of the EFI systems are limited to a 90 day warranty period. See separate complete Limited Warranty document for a list of specific components. e.) What We Do Not Cover (Continued)- Removal or replacement costs. Shipping Costs. Damage to related components. Costs incurred due to downtime of vehicle.
Quantity: Sold as Kit
|
