FiTech Easy Street 600 HP EFI Master Kit with Force Fuel Delivery System
The next step in the line of Easy Street EFI system is for engines producing 200-600HP normally aspirated.
With a classic gold finish, this Go Street system may have the looks of a factory carb, but the similarities end there. The pre-programmed assembly bolts right in place on a square bore intake manifold and requires only a minimum of inputs to fire up. The Easy Street accepts the tach signal from the coil negative, and HEI distributor or from a CD ignition box for simple installation. A fast reacting wide band O2 sensor is supplied to monitor the fuel burn signaling the self-learning technology of the ECU on adjustments to the mixture resulting in smooth performance from idle to high RPM.

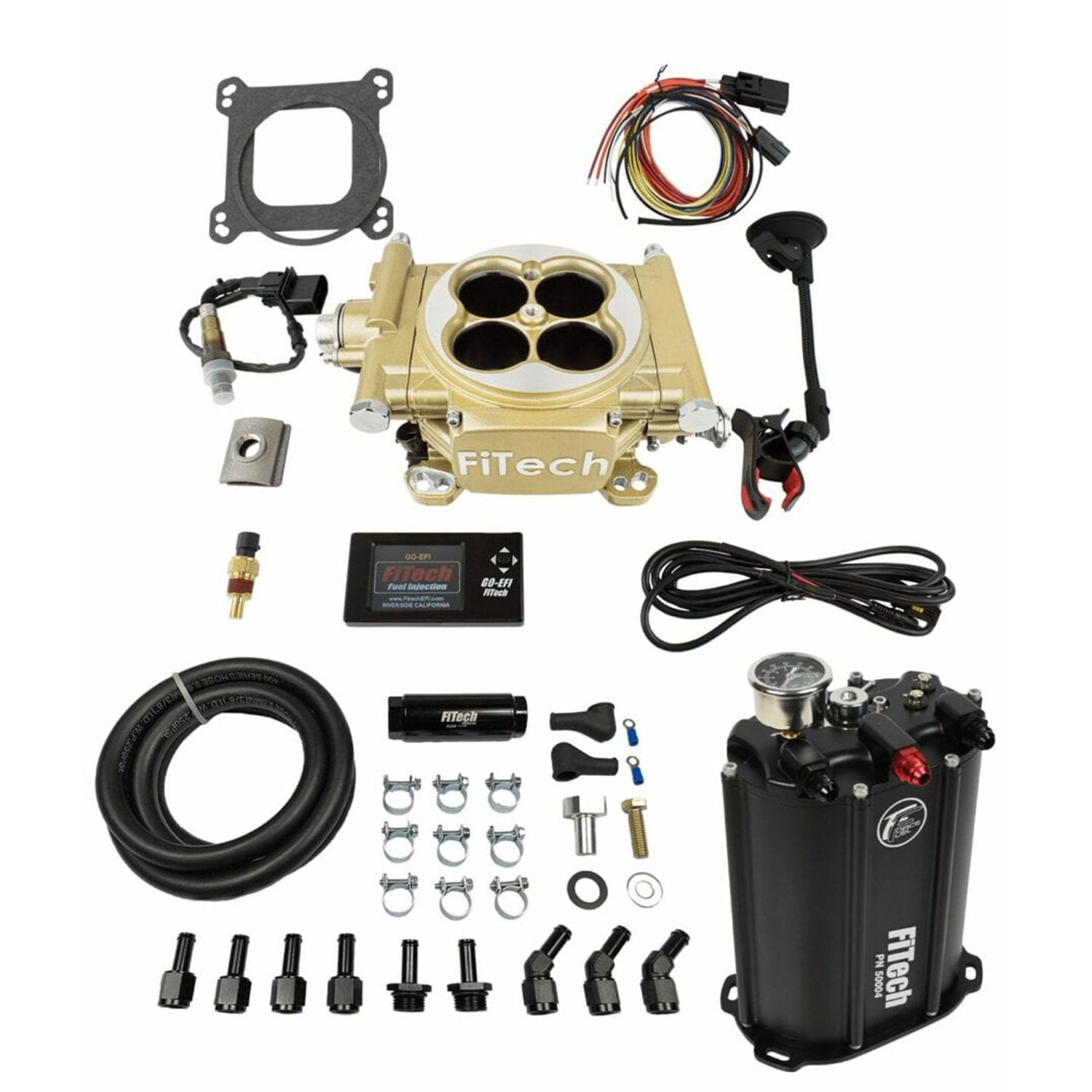

This Easy Street Master Kit is supplied with the Force Fuel System, high pressure hose, fittings, and serviceable 10-micron filter.
Part Type: Fuel Injection System
Application: Universal 4bbl
Horsepower Rating: 200 HP to 600 HP
Self-Tuning: Yes
Injection Style: Throttle Body
Metering Style: Speed Density
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4bbl Square Bore
Throttle Body Material: Cast Aluminum
Throttle Body Finish: Natural
Injectors Included: Yes
Injector Size: 80 lbs./hr.
Venturi Quantity: 4, Annular Discharge Design
Intake Manifold Included: No
Fuel Rails Included: No
Fuel Inlet Ports:
Fuel Inlet Fitting:
Calibration Module Included: Yes, Handheld w/ Color Touch screen & Windshield Mount
ECU Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes, Wide Band 4.2
O2 Sensor Bung Kit Included: Yes, Clamp-On or Weld-On
Fuel Pump Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes
Intake Air Temperature Sensor Included: Yes
Throttle Position Sensor Included: Yes
Idle Air Control Included: Yes
Coolant Temperature Sensor: Yes
Distributor Included: No
Timing Control: Yes
Voltage Control for Fuel Pump: Yes
Fan Control Included: Yes, 1 Adjustable
Data Logging: No
Gasket Kit Included: Yes
Manufacturer: FiTech Fuel Injection
Manufacturer's Part Number: 35205
Weight: 22.0 lbs.
Warranty: LIMITED WARRANTY- a.) What is Covered- This warranty is limited to repair or replacement (at their option) of any FiTech part that fails because of a defect in workmanship or materials. Implied warranty: Any warranties implied by law are limited to the duration of this warranty, (except in those states where prohibited by law). b.) How Long it is Covered- All FiTech products are warranted for a period of one year from date of original retail purchase with an original receipt showing proof of purchase. c.) Who They Cover- All FiTech warranties apply to the original purchasing consumer. d.) What They Do Not Cover- Failure of a product due to misapplication, improper installation or maintenance, misuse, abuse, unauthorized repairs, accidents, or modifications to the original design. Certain components of the EFI systems are limited to a 90 day warranty period. See separate complete Limited Warranty document for a list of specific components. e.) What We Do Not Cover (Continued)- Removal or replacement costs. Shipping Costs. Damage to related components. Costs incurred due to downtime of vehicle.
Quantity: Sold as Kit
|
