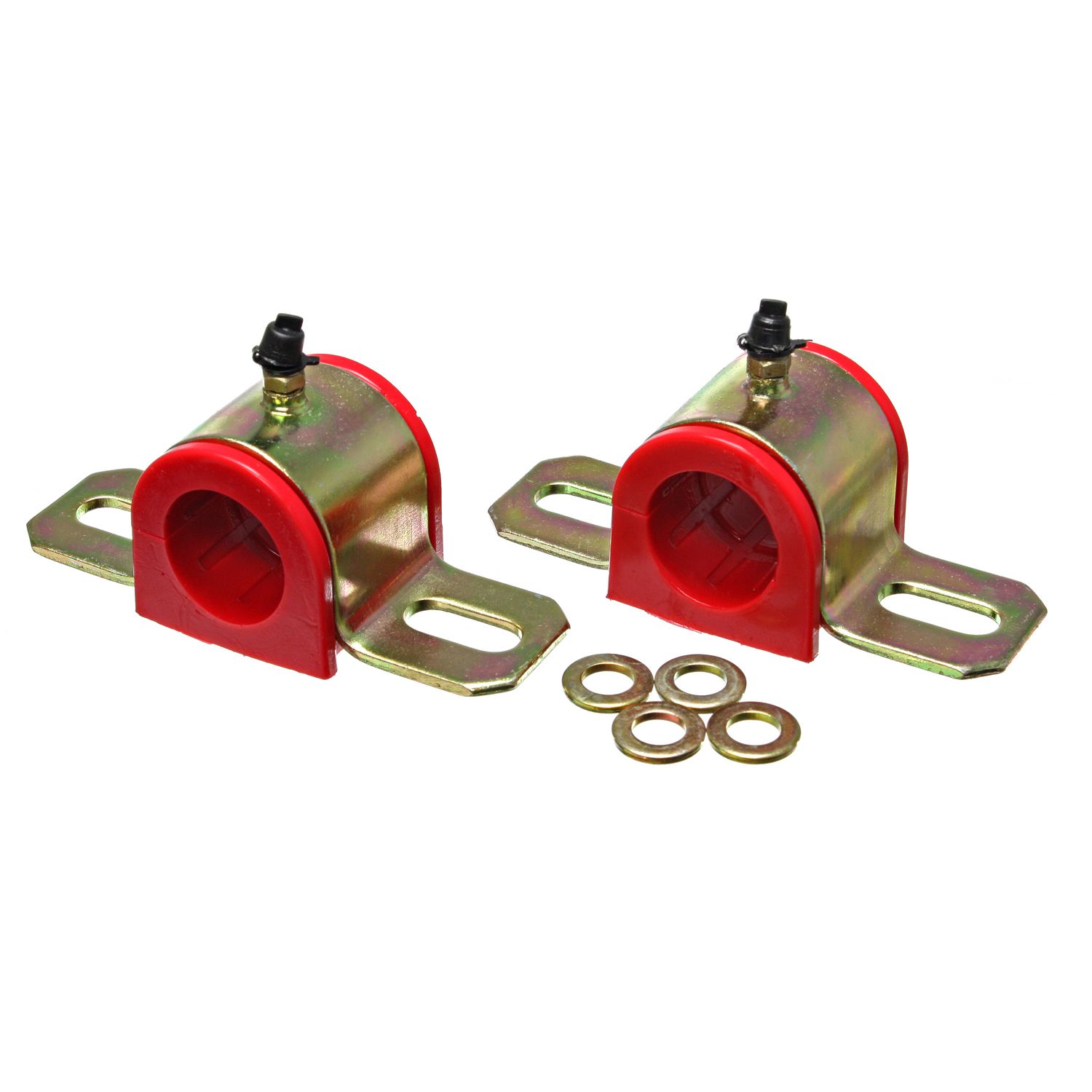

Energy Suspension Greasable Type Sway Bar Bushing Sets

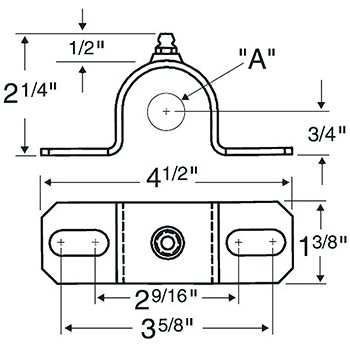

These bushings make a vehicle's sway bar system much more effective - like adding a larger, higher performance sway bar! Complete with zerk fitting and utilizing a unique channel design, allowing grease to flow to all inner bushing surfaces. Virtually eliminates squeaking. Increased effiency and easy to install. Use the dimensional drawing above to determine if its the proper size for your vehicle.
Note: Not recommended for full size pickups.
Part Type: Sway Bar Bushings
Frame Bushings Greasable: Yes
Frame Bushings Included: Yes
Front Sway Bar Diameter (mm): 32.00
Front Sway Bar Diameter (in): 1.250"
Rear Sway Bar Diameter (mm): 32.00
Rear Sway Bar Diameter (in): 1.250"
Bushing Material: Polyurethane
End Links Included: No
Bushing Color: Red
Overall Sway Bar Bracket Height (in): 2.250"
Mounting Bracket to Sway Bar Centerline Height: 0.750"
Sway Bar Bracket Maximum Bolt Center to Center: 3.625"
Sway Bar Bracket Minimum Bolt Center to Center: 2.563"
Quantity Sold as: A Pair
|
