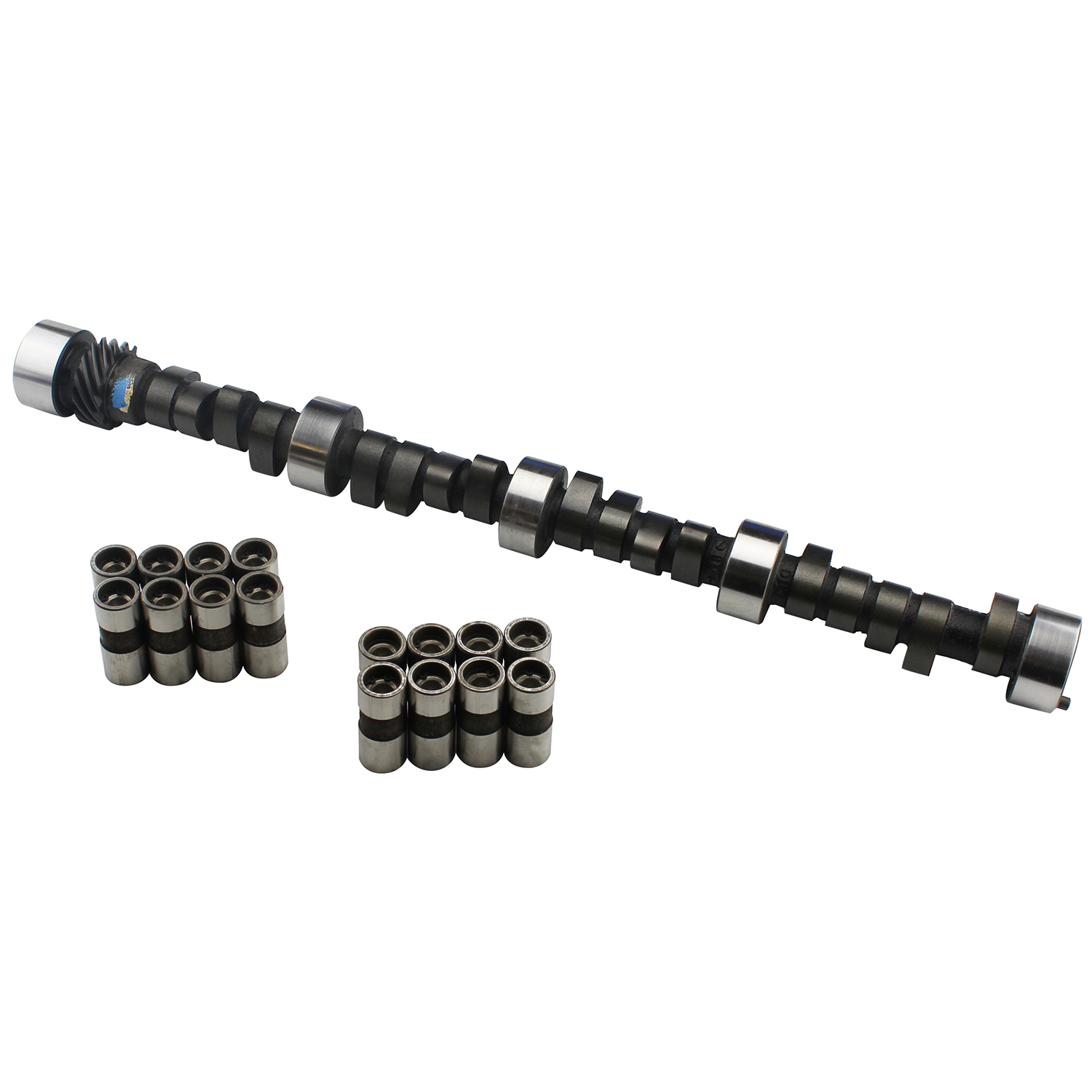

Elgin Mechanical Flat Tappet Camshaft & Lifter Set
More performance, less money. The best deal in "Name Brand" camshafts available! With a large selection of performance grinds, Elgin has you covered. Whether your goal is to boost low-end torque, increase fuel economy, or just flat-out embarrass the "other guy", you’ll find the ideal answer right here!
Part Type: Camshaft & Lifter Set
Application: Chevrolet Small Block 262-400 1965-1996
Ignition Firing Order: OE (1-8-4-3-6-5-7-2)
Cam Style: Mechanical Flat Tappet
Basic RPM Range: 2200-5400
Manufacturers Description: Heavy pro street/bracket, oval track 1/4-3/8 mile.
Intake Duration @ .050": 240
Exhaust Duration @ .050": 250
Advertised Intake Duration (@ .006"): 282
Advertised Exhaust Duration (@ .006"): 290
Intake Valve Lift with OE Rocker Ratio (1.50): .521"
Exhaust Valve Lift OE Rocker Ratio (1.50): .521"
Intake Lobe Lift: .347"
Exhaust Lobe Lift: .347"
Intake Valve Lift with 1.55 Rocker Ratio: .538"
Intake Valve Lift with 1.60 Rocker Ratio: .555"
Intake Valve Lift with 1.65 Rocker Ratio: .573"
Exhaust Valve Lift with 1.55 Rocker Ratio: .538"
Exhaust Valve Lift with 1.60 Rocker Ratio: .555"
Exhaust Valve Lift with 1.65 Rocker Ratio: .573"
Lobe Separation Angle: 106 Degrees
Intake Centerline: 104 Degrees
Lifters Included: Yes, PVT651080DL, Direct Lube Mechanical Flat Tappet
Small Base Circle: No
Cam Gear Attachment: 3-Bolt
Valve Adjustment: .024 Intake/.024 Exhaust
Manufacturer: Elgin Industries
Manufacturer's Part Number: E1131PMDL
Weight: 10.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Oil with ZDDP or ZDDP Additive Required
Note: Always use Camshaft Break-in Lube with all new flat tappet cams.
|
