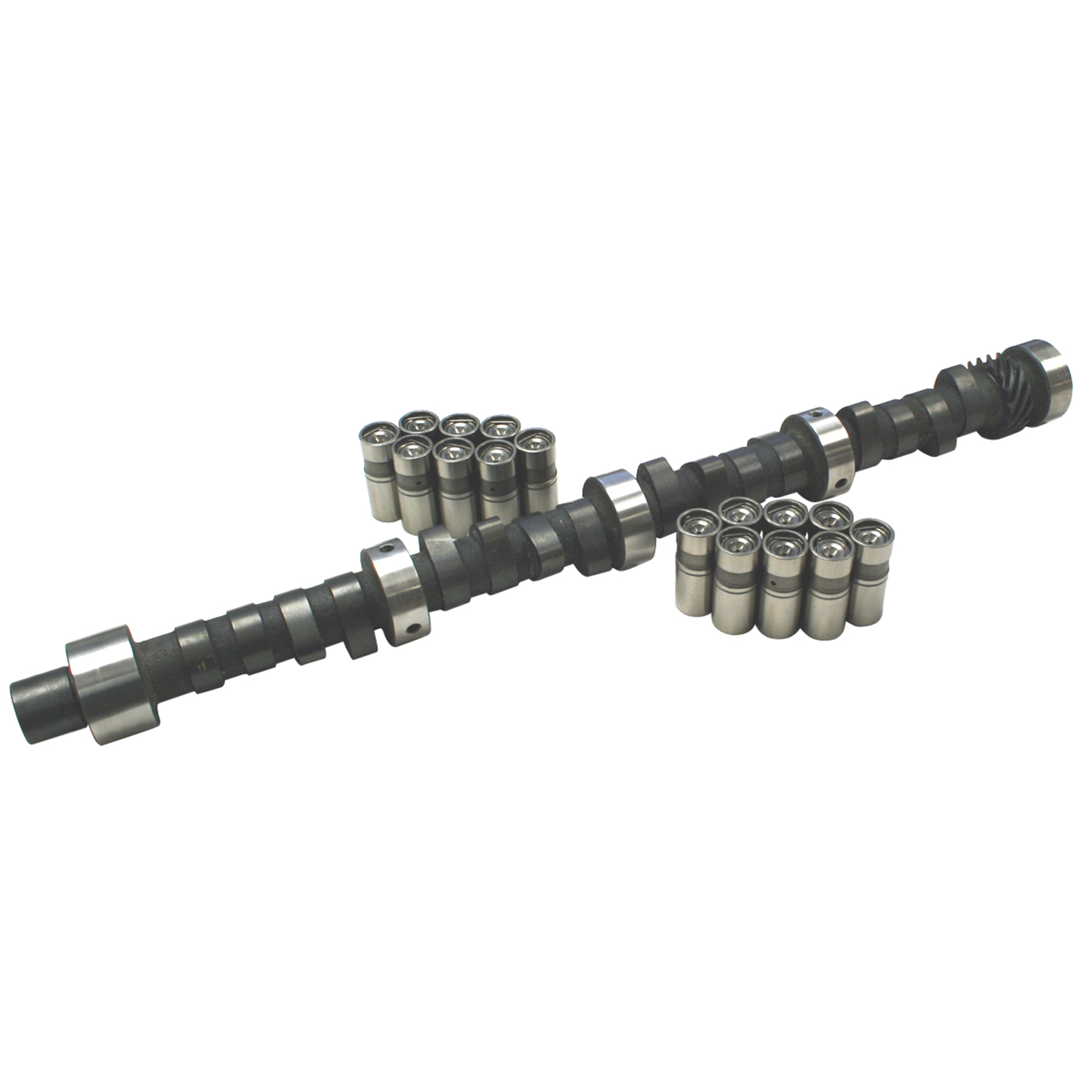

Elgin Hydraulic Flat Tappet Camshaft & Lifter Set
More performance, less money. The best deal in “Name Brand” camshafts available! With a large selection of performance grinds, Elgin has you covered. Whether your goal is to boost low-end torque, increase fuel economy, or just flat-out embarrass the “other guy,” you’ll find the ideal answer right here!
Part Type: Camshaft & Lifter Set
Application: Pontiac V8 265-455 1955-1981
Ignition Firing Order: OE (1-8-4-3-6-5-7-2)
Cam Style: Hydraulic Flat Tappet
Basic RPM Range: 2000-4800
Manufacturers Description: Fair idle, improved power.
Intake Duration @ .050": 214
Exhaust Duration @ .050": 224
Advertised Intake Duration (@ .006"): 288
Advertised Exhaust Duration (@ .006"): 298
Intake Valve Lift with OE Rocker Ratio (1.50): .444"
Exhaust Valve Lift OE Rocker Ratio (1.50): .466"
Intake Lobe Lift: .296"
Exhaust Lobe Lift: .307"
Intake Valve Lift with 1.55 Rocker Ratio: .459"
Intake Valve Lift with 1.60 Rocker Ratio: .474"
Intake Valve Lift with 1.65 Rocker Ratio: .488"
Exhaust Valve Lift with 1.55 Rocker Ratio: .475"
Exhaust Valve Lift with 1.60 Rocker Ratio: .491”
Exhaust Valve Lift with 1.65 Rocker Ratio: .506”
Lobe Separation Angle: 112 Degrees
Intake Centerline: 108 Degrees
Lifters Included: Yes, PVT652399, Premium Hydraulic Flat Tappet
Small Base Circle: No
Cam Gear Attachment: Single-Bolt
Valve Adjustment: Zero Lash Plus ˝ Turn
Manufacturer: Elgin Industries
Manufacturer's Part Number: E980PM
Weight: 10.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Oil with ZDDP or ZDDP Additive Required
Note: Always use Camshaft Break-in Lube with all new flat tappet cams.
|
