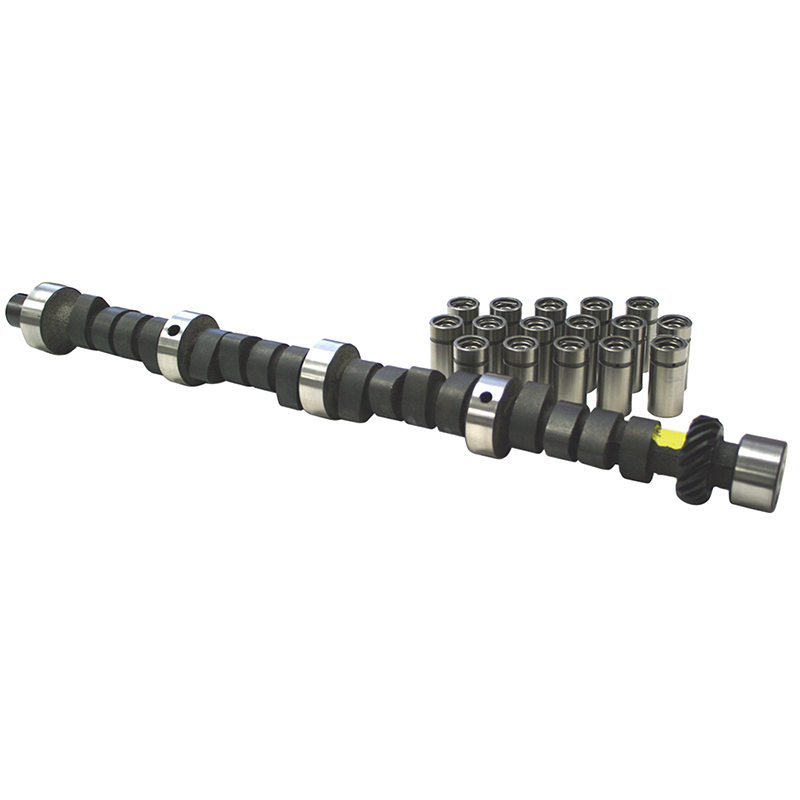

Elgin Hydraulic Flat Tappet Camshaft & Lifters
More performance, less money. The best deal in “Name Brand” camshafts available! With a large selection of performance grinds, Elgin has you covered. Whether your goal is to boost low-end torque, increase fuel economy, or just flat-out embarrass the “other guy,” you’ll find the ideal answer right here!
Part Type: Camshaft & Lifter Set
Application Chrysler Small Block 273, 340, 360 1964-2003, 318 1967-1991
Ignition Firing Order: OE (1-8-4-3-6-5-7-2)
Cam Style: Hydraulic Flat Tappet
Basic RPM Range: 2200-5400
Manufacturers Description: Hot Street/Strip.
Intake Duration @ .050": 231
Exhaust Duration @ .050": 231
Advertised Intake Duration (@ .006"): 287
Advertised Exhaust Duration (@ .006"): 287
Intake Valve Lift with OE Rocker Ratio (1.50): .480"
Exhaust Valve Lift OE Rocker Ratio (1.50): .480"
Intake Lobe Lift: .320"
Exhaust Lobe Lift: .320"
Intake Valve Lift with 1.55 Rocker Ratio: .496"
Intake Valve Lift with 1.60 Rocker Ratio: .512"
Intake Valve Lift with 1.65 Rocker Ratio: .528"
Exhaust Valve Lift with 1.55 Rocker Ratio: .496"
Exhaust Valve Lift with 1.60 Rocker Ratio: .512”
Exhaust Valve Lift with 1.65 Rocker Ratio: .528”
Lobe Separation Angle: 109 Degrees
Intake Centerline: 105 Degrees
Lifters Included: Yes, 652387, Premium Hydraulic Lifters,
Small Base Circle: No
Cam Gear Attachment: Single-Bolt
Valve Adjustment: Zero Lash Plus ˝ Turn
Manufacturer: Elgin Industries
Manufacturer's Part Number: E935PM
Weight: 10.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Oil with ZDDP or ZDDP Additive Required
Note: Always use Camshaft Break-in Lube with all new flat tappet cams.
|
