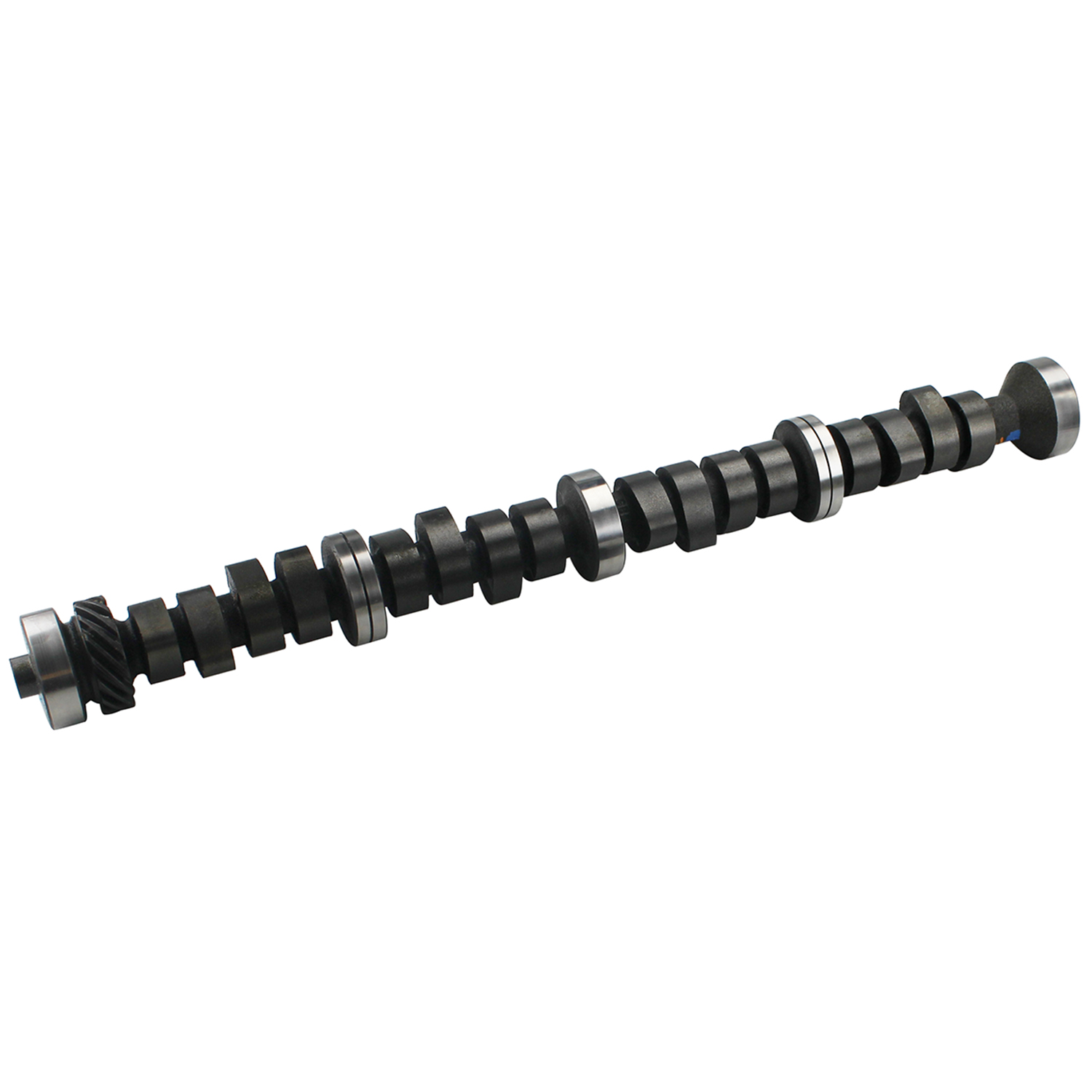

Elgin Hydraulic Flat Tappet Camshaft
More performance, less money. The best deal in "Name Brand" camshafts available! With a large selection of performance grinds, Elgin has you covered. Whether your goal is to boost low-end torque, increase fuel economy, or just flat-out embarrass the "other guy", you’ll find the ideal answer right here!
Part Type: Camshaft
Application: Ford FE V8 330-428 1963-1978
Ignition Firing Order: OE (1-5-4-2-6-3-7-8)
Cam Style: Hydraulic Flat Tappet
Basic RPM Range: 1500-4000
Manufacturers Description: Fair idle, good low end torque and response.
Intake Duration @ .050": 204
Exhaust Duration @ .050": 214
Advertised Intake Duration (@ .006"): 282
Advertised Exhaust Duration (@ .006"): 292
Intake Valve Lift with OE Rocker Ratio (1.75): .486"
Exhaust Valve Lift OE Rocker Ratio (1.75): .512"
Intake Lobe Lift: .278"
Exhaust Lobe Lift: .293"
Intake Valve Lift with 1.70 Rocker Ratio: .472"
Intake Valve Lift with 1.80 Rocker Ratio: .500"
Exhaust Valve Lift with 1.70 Rocker Ratio: .497"
Exhaust Valve Lift with 1.80 Rocker Ratio: .527"
Lobe Separation Angle: 112 Degrees
Intake Centerline: 108 Degrees
Lifters Included: No
Small Base Circle: No
Cam Gear Attachment: Single-Bolt
Valve Adjustment: Zero Lash Plus 1/2 Turn
Manufacturer: Elgin Industries
Manufacturer's Part Number: E966P
Weight: 10.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Oil with ZDDP or ZDDP Additive Required
Note: Always use Camshaft Break-in Lube with all new flat tappet cams.
|
