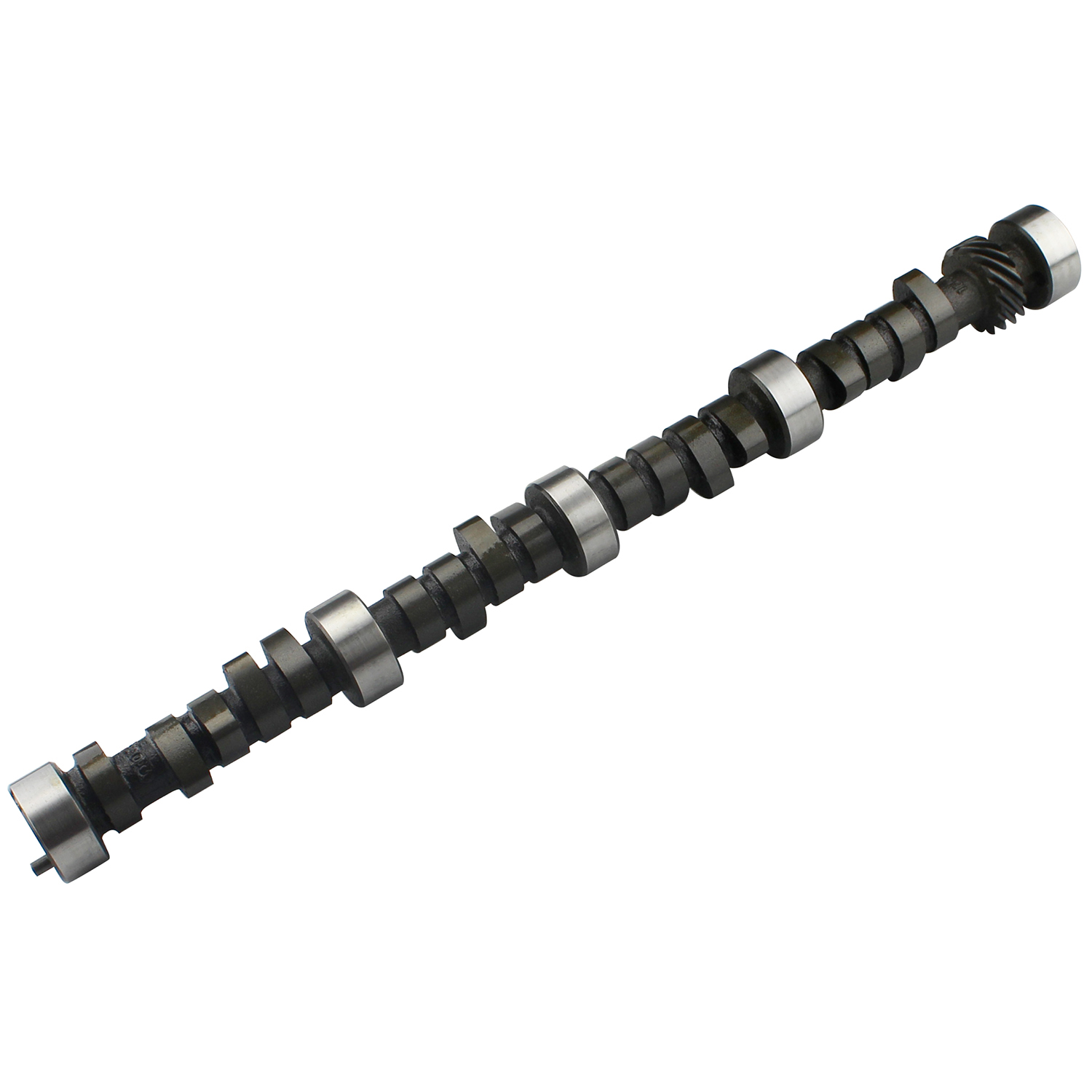

Elgin Hydraulic Flat Tappet Camshaft
More performance, less money. The best deal in "Name Brand" camshafts available! With a large selection of performance grinds, Elgin has you covered. Whether your goal is to boost low-end torque, increase fuel economy, or just flat-out embarrass the "other guy", you’ll find the ideal answer right here!
Part Type: Camshaft
Application Chevrolet BB V8 366 1969-1998, 396,402,454-1.7 RAR 1965-2000
Ignition Firing Order: OE (1-8-4-3-6-5-7-2)
Cam Style: Hydraulic Flat Tappet
Basic RPM Range: 2000-4800
Manufacturers Description: Noticeable idle, 2400 to 5800 rpm power range.
Intake Duration @ .050": 218
Exhaust Duration @ .050": 218
Advertised Intake Duration (@ .006"): 284
Advertised Exhaust Duration (@ .006"): 284
Intake Valve Lift with OE Rocker Ratio (1.70): .516"
Exhaust Valve Lift OE Rocker Ratio (1.70): .516"
Intake Lobe Lift: .3035"
Exhaust Lobe Lift: .3035"
Intake Valve Lift with 1.72 Rocker Ratio: .522"
Intake Valve Lift with 1.75 Rocker Ratio: .531"
Intake Valve Lift with 1.80 Rocker Ratio: .546"
Exhaust Valve Lift with 1.72 Rocker Ratio: .522"
Exhaust Valve Lift with 1.75 Rocker Ratio: .531"
Exhaust Valve Lift with 1.80 Rocker Ratio: .546"
Lobe Separation Angle: 110 Degrees
Intake Centerline: 106 Degrees
Lifters Included: No
Small Base Circle: No
Cam Gear Attachment: 3-Bolt
Valve Adjustment: Zero Lash Plus 1/2 Turn
Manufacturer: Elgin Industries
Manufacturer's Part Number: E1066
Weight: 10.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Oil with ZDDP or ZDDP Additive Required
Note: Always use Camshaft Break-in Lube with all new flat tappet cams.
|
