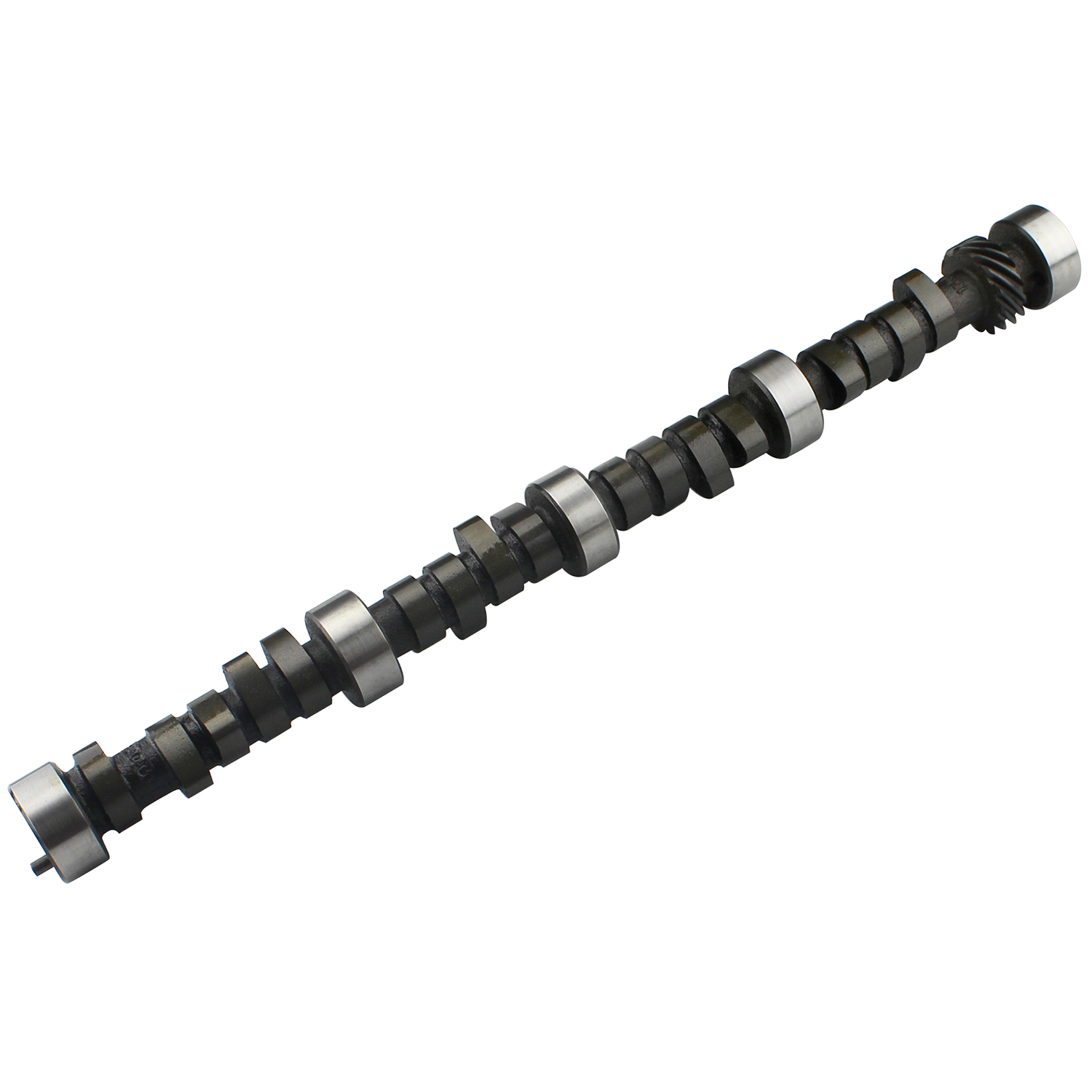

Elgin Hydraulic Flat Tappet Camshaft
More performance, less money. The best deal in "Name Brand" camshafts available! With a large selection of performance grinds, Elgin has you covered. Whether your goal is to boost low-end torque, increase fuel economy, or just flat-out embarrass the "other guy", you’ll find the ideal answer right here!
Part Type: Camshaft
Application Chevrolet BB V8 366 1969-1998, 396,402,454-1.7 RAR 1965-2000
Ignition Firing Order: OE (1-8-4-3-6-5-7-2)
Cam Style: Hydraulic Flat Tappet
Basic RPM Range: 1500-4000
Manufacturers Description: Excellent low & mid-range torque.
Intake Duration @ .050": 208
Exhaust Duration @ .050": 218
Advertised Intake Duration (@ .006"): 276
Advertised Exhaust Duration (@ .006"): 280
Intake Valve Lift with OE Rocker Ratio (1.70): .475"
Exhaust Valve Lift OE Rocker Ratio (1.70): .500"
Intake Lobe Lift: .279"
Exhaust Lobe Lift: .294"
Intake Valve Lift with 1.72 Rocker Ratio: .481"
Intake Valve Lift with 1.75 Rocker Ratio: .489"
Intake Valve Lift with 1.80 Rocker Ratio: .503"
Exhaust Valve Lift with 1.72 Rocker Ratio: .506"
Exhaust Valve Lift with 1.75 Rocker Ratio: .515"
Exhaust Valve Lift with 1.80 Rocker Ratio: .529"
Lobe Separation Angle: 112 Degrees
Intake Centerline: 108 Degrees
Lifters Included: No
Small Base Circle: No
Cam Gear Attachment: 3-Bolt
Valve Adjustment: Zero Lash Plus 1/2 Turn
Manufacturer: Elgin Industries
Manufacturer's Part Number: E1219P
Weight: 10.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Oil with ZDDP or ZDDP Additive Required
Note: Always use Camshaft Break-in Lube with all new flat tappet cams.
|
