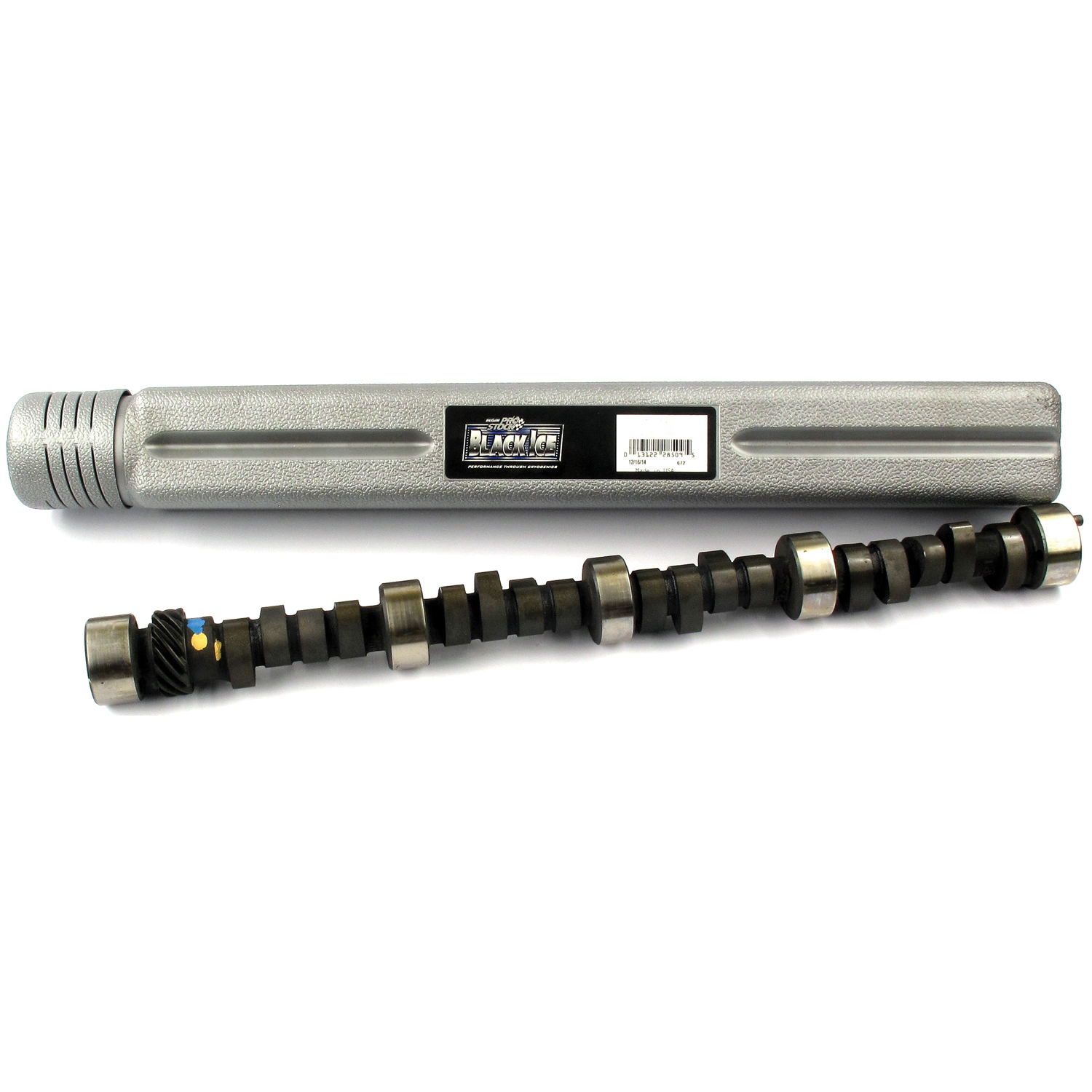

Elgin Black Ice Hydraulic Flat Tappet Camshaft
Superior strength through proprietary super-cryogenic and tempering treatments. These processes are meant to significantly increase component stability and wear resistance.
- Maximum attainable hardness from heat-treated base material
- Elimination of material stresses
- Superior material stability and uniformity
- Unparalleled toughness, durability, and wear resistance
Part Type: Camshaft
Application Chevrolet BB V8 366 1969-1998, 396,402,454-1.7 RAR 1965-2000
Ignition Firing Order: OE (1-8-4-3-6-5-7-2)
Cam Style: Hydraulic Flat Tappet
Basic RPM Range: 2200-5400
Manufacturers Description: Pro Street/Bracket, 3000+ stall, NOS ok.
Intake Duration @ .050": 238
Exhaust Duration @ .050": 248
Advertised Intake Duration (@ .006"): 304
Advertised Exhaust Duration (@ .006"): 316
Intake Valve Lift with OE Rocker Ratio (1.70): .540"
Exhaust Valve Lift OE Rocker Ratio (1.70): .540"
Intake Lobe Lift: .318"
Exhaust Lobe Lift: .318"
Intake Valve Lift with 1.72 Rocker Ratio: .547"
Intake Valve Lift with 1.75 Rocker Ratio: .557"
Intake Valve Lift with 1.80 Rocker Ratio: .572"
Exhaust Valve Lift with 1.72 Rocker Ratio: .547"
Exhaust Valve Lift with 1.75 Rocker Ratio: .557"
Exhaust Valve Lift with 1.80 Rocker Ratio: .572"
Lobe Separation Angle: 114 Degrees
Intake Centerline: 110 Degrees
Lifters Included: No
Small Base Circle: No
Cam Gear Attachment: 3-Bolt
Valve Adjustment: Zero Lash Plus 1/2 Turn
Manufacturer: Elgin Industries
Manufacturer's Part Number: ICE201218
Weight: 10.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Oil with ZDDP or ZDDP Additive Required
Note: Always use Camshaft Break-in Lube with all new flat tappet cams.
|
