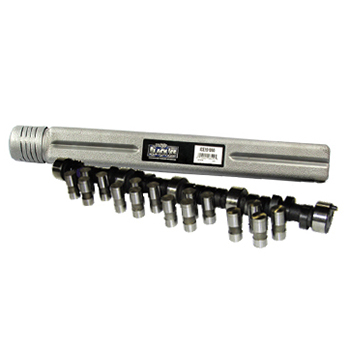

Elgin Black Ice Hydraulic Flat Tappet Camshaft & Lifter Set
Superion strength through proprietary super-cryogenic and tempering treatments. These processes are meant to significantly increase component stability and wear resistance. Includes premium lifters.
Part Type: Camshaft & Lifter Set
Application: Chevrolet Small Block 262-400 1955-1998
Ignition Firing Order: OE (1-8-4-3-6-5-7-2)
Cam Style: Hydraulic Flat Tappet
Basic RPM Range: 2000-4800
Manufacturers Description: Mild idle. Good low end torque. Stock converter OK.
Intake Duration @ .050": 214
Exhaust Duration @ .050": 224
Advertised Intake Duration (@ .006"): 288
Advertised Exhaust Duration (@ .006"): 298
Intake Valve Lift with OE Rocker Ratio (1.50): .444"
Exhaust Valve Lift OE Rocker Ratio (1.50): .466"
Intake Lobe Lift: .296"
Exhaust Lobe Lift: .311"
Intake Valve Lift with 1.55 Rocker Ratio: .459"
Intake Valve Lift with 1.60 Rocker Ratio: .474"
Intake Valve Lift with 1.65 Rocker Ratio: .488"
Exhaust Valve Lift with 1.55 Rocker Ratio: .482"
Exhaust Valve Lift with 1.60 Rocker Ratio: .498”
Exhaust Valve Lift with 1.65 Rocker Ratio: .513”
Lobe Separation Angle: 112 Degrees
Intake Centerline: 108 Degrees
Lifters Included: Yes, PVT652394, Premium Hydraulic Flat Tappet
Small Base Circle: No
Cam Gear Attachment: 3-Bolt
Valve Adjustment: Zero Lash Plus ½ Turn
Manufacturer: Elgin Industries
Manufacturer's Part Number: ICE200922CL
Weight: 12.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: Oil with ZDDP or ZDDP Additive Required
Note: Always use Camshaft Break-in Lube with all new flat tappet cams.
|
