Edelbrock Power Package Top End Package

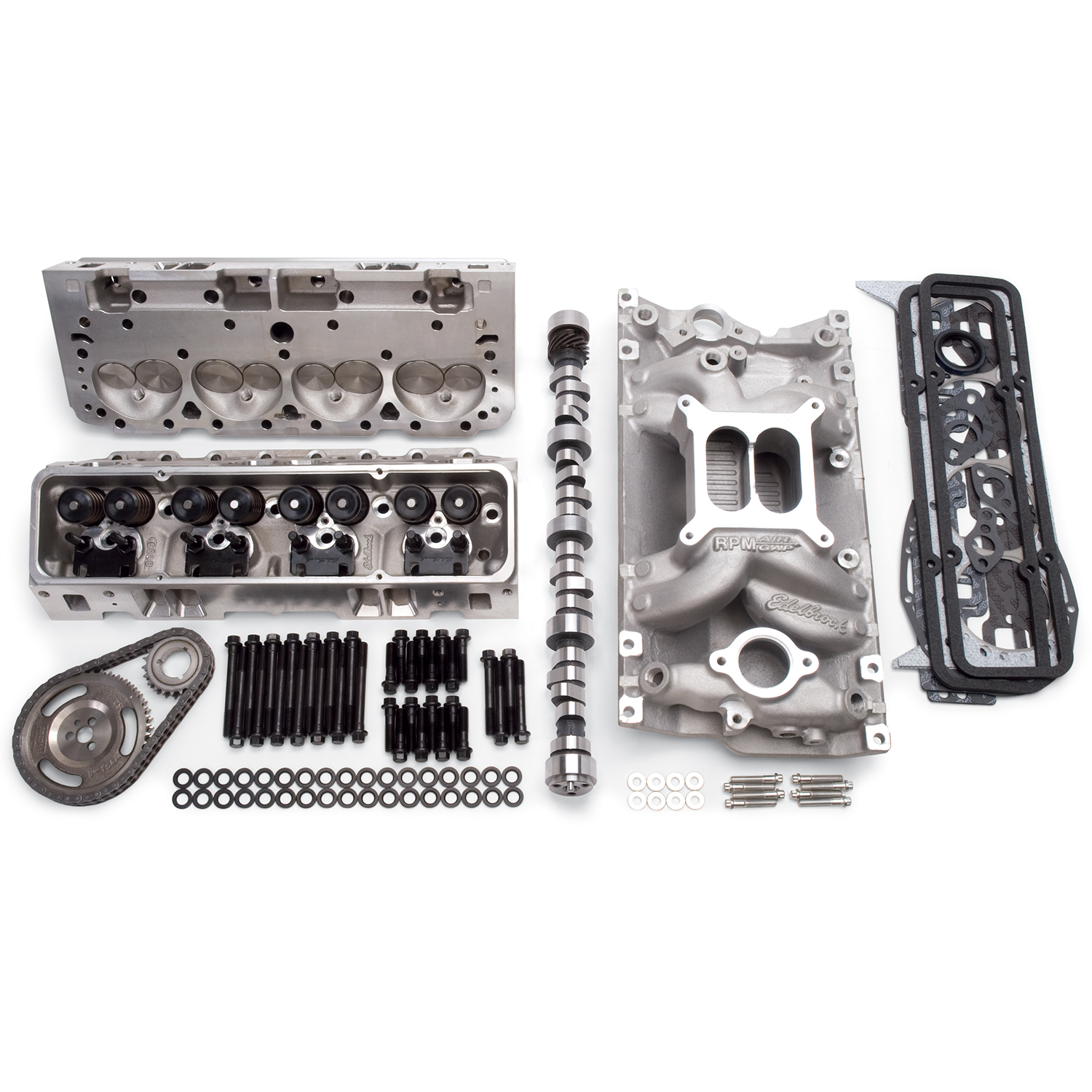

These kits include almost everything you need to build a performance proven combination. The Power Packages include a set of fully assembled Performer RPM cylinder heads, Performer RPM Air Gap Intake, Performer RPM camshaft, head and intake bolts and top end gasket set.
Oversize shipping charges apply.
Part Type: Top End Kits
Cylinder Heads Included: Yes
Camshaft Included: Yes
Camshaft Type: Hydraulic Roller Tappet
Advertised Duration: 305 int./314 exh.
Duration at 050" Lift: 242 int./ 240 exh
Valve Lift With Factory Rocker Arm Ratio: 0.594 int./0.594 exh.
Intake Manifold Included: Yes
Carburetor Included: No
Fuel Delivery Style: Carbureted
Throttle Body Included: No
Fuel Rails Included No
Fuel Injectors Included: No
Intake Color: Natural
Intake Material: Aluminum
Intake Style: Dual Plane
Carburetor Flange: Square Bore
Lifters Included: Yes
Gaskets Included: Yes
Timing Chain and Gears Included: Yes
Cylinder Head Style: Assembled
Cylinder Head Material: Cast Aluminum
Cylinder Head Color: Natural
Combustion Chamber Volume (cc): 64
CNC-Machined Intake Runner: No
CNC- Machined Exhaust Runner: No
CNC- Machined Combustion Chamber: No
Combustion Chamber Style: Heart
Intake Runner Volume (cc): 200
Exhaust Runner Volume (cc): 80
Intake Port Location: Standard
Exhaust Port Location: Standard
Intake Port Shape: Rectangular
Exhaust Port Shape: Square
Spark Plug Style: Straight
Intake Valves Included: Yes
Exhaust Valves Included: Yes
Intake Valve Diameter (in): 1.600"
Exhaust Valve Diameter (in): 1.460"
Intake Valve Angle: 23
Valve Springs Included: Yes
Outside Diameter of Outer Spring (in): 1.460"
Number Of Springs Per Valve: Dual
Damper Spring Included: Yes
Retainers Included: Yes
Retainer Material: Steel
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive Stop
Valve Stem Seal Material: Viton
Locks Included: Yes
Lock Style: 7 Degree
Rocker Arms Included: No
Rocker Arm Studs Included: Yes
Rocker Arm Nuts Included: Yes
Rocker Arm Nut Thread Size: 3/8" -24
Pushrods Included: Yes
Valve Covers Included: No
Guideplates Included: Yes
Guideplates Pushrod Size: 5/16"
Valve Cover Mounting Style: Center and Perimeter Bolt
Accessory Bolt Holes Drilled: Yes
Valve Seats Machined: Yes
Valve Guide Material: Manganese Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 3-Angle
Valve Seat Material: Ductile Iron
Steam Holes Drilled: No
Oiling Style: Through Pushrod
Heat Crossover: Yes
Machined for O-Ring: No
Quantity Sold as: A Kit
|
